Liberty Pumps FL52M-3 - 1/2 HP Cast Iron Effluent Pump (Non-Automatic) (35' Cord) (208-230V)

Model:

FL52M-3

Write a Review
$686.25
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days

Liberty Pumps FL52M-3 - 1/2 HP Cast Iron Effluent Pump (Non-Automatic) (35' Cord) (208-230V)
Liberty Pumps FL52M-3 - 1/2 HP Cast Iron Effluent Pump (Non-Automatic) (35' Cord) (208-230V)
Model: FL52M-3
$686.25
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Style

Effluent

GPH

5520 Gallons

Switch Type

None



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • ***208-230V*** ***NON-AUTOMATIC - Requires Float Switch or Controller***
  • Submersible Cast Iron Effluent Pump
  • Designed for septic systems that require less than 55' head
  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Rugged & Thermally Protected 1/2 HP Motor (208-230V)
  • Hermetically sealed, permanently lubricated design
  • Semi-Open Cast Iron Impeller
  • Minimizes clogging and passes spherical solids up to 3/4"
  • High Capacity 2" Discharge w/ 1-1/2" Discharge Flange
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 35' Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • 416 Stainless Steel Rotor Shaft w/ Unitized Carbon/Ceramic Seal
  • With permanently lubricated bearings for extended pump life
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest systems
  • 3 Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

FL52M-3
specs product image PID-80692
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
230 Volt
Running Amps
6.5
Thermal Protection
Yes
Power Cord Length
35 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch

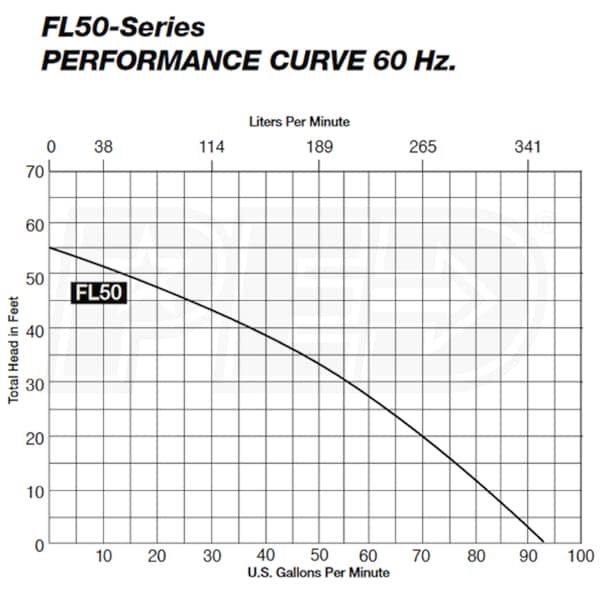

GPH @ 0 feet
5520
GPH @ 5 feet
5280
GPH @ 10 feet
4950
GPH @ 15 feet
4550
GPH @ 20 feet
4200
Discharge Port Size
1-1/2 Inch and 2 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
55 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Accessories
Float Switch
Yes
Overview
Weight
63 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Length
11.2 Inches
Product Height
16.4 Inches
UPC
671812104141
