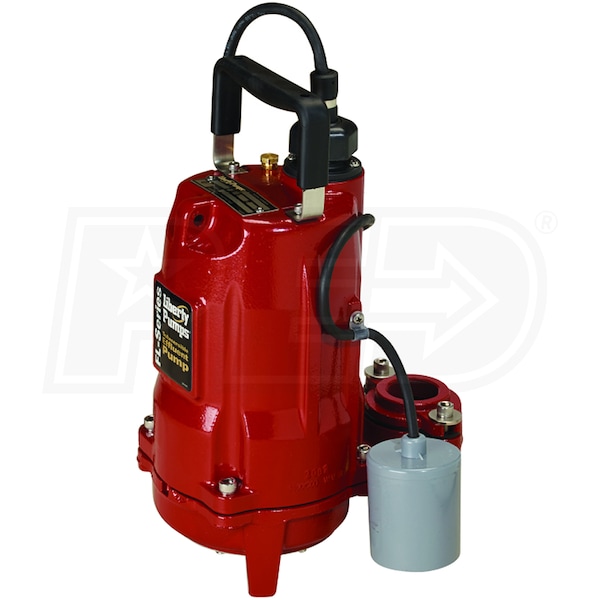

Liberty Pumps FL72A - 3/4 HP Cast Iron Effluent Pump w/ Piggyback Tether Float (208-230V)

Liberty Pumps FL72A - 3/4 HP Cast Iron Effluent Pump w/ Piggyback Tether Float (208-230V)
Our Price
Compare Prices
Shipping Info
Model: FL72A
$760.50

Ships in 2-5 Business Days
Shipping Crate Icon
Free Shipping
Free Shipping$760.50Buy Now
$760.50Visit Site
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Effluent Sumps Pumps
GPH
5880
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Effluent
GPH
5880 Gallons
Switch Type
Piggy-Back Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • ***208-230V*** Automatic Submersible Cast Iron Effluent Pump
  • Designed for septic systems that require less than 87' head
  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Adjustable, Mercury-Free, Wide Angle Tether Float Switch
  • Provides automatic or manual operation via piggyback plug
  • Rugged & Thermally Protected 3/4 HP Motor (208-230V)
  • Hermetically sealed, permanently lubricated design
  • Semi-Open Cast Iron Impeller
  • Minimizes clogging and passes spherical solids up to 3/4"
  • High Capacity 2" Discharge w/ 1-1/2" Discharge Flange
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 10' Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • 416 Stainless Steel Rotor Shaft w/ Unitized Carbon/Ceramic Seal
  • With permanently lubricated bearings for extended pump life
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest systems
  • 3 Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
230 Volt
Running Amps
10.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Total Head Lift
87 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
5880
GPH @ 5 feet
5760
GPH @ 10 feet
5520
GPH @ 15 feet
5220
GPH @ 20 feet
5040
Discharge Port Size
1-1/2 Inch and 2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.75 hp
Accessories
Float Switch
Yes
Overview
Weight
61 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Length
11.2 Inches
Product Height
16.4 Inches
UPC
671812125665
Style
Effluent Sumps Pumps
GPH
5880
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Effluent
GPH
5880 Gallons
Switch Type
Piggy-Back Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • ***208-230V*** Automatic Submersible Cast Iron Effluent Pump
  • Designed for septic systems that require less than 87' head
  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Adjustable, Mercury-Free, Wide Angle Tether Float Switch
  • Provides automatic or manual operation via piggyback plug
  • Rugged & Thermally Protected 3/4 HP Motor (208-230V)
  • Hermetically sealed, permanently lubricated design
  • Semi-Open Cast Iron Impeller
  • Minimizes clogging and passes spherical solids up to 3/4"
  • High Capacity 2" Discharge w/ 1-1/2" Discharge Flange
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 10' Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • 416 Stainless Steel Rotor Shaft w/ Unitized Carbon/Ceramic Seal
  • With permanently lubricated bearings for extended pump life
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest systems
  • 3 Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
230 Volt
Running Amps
10.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Total Head Lift
87 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
5880
GPH @ 5 feet
5760
GPH @ 10 feet
5520
GPH @ 15 feet
5220
GPH @ 20 feet
5040
Discharge Port Size
1-1/2 Inch and 2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.75 hp
Accessories
Float Switch
Yes
Overview
Weight
61 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Length
11.2 Inches
Product Height
16.4 Inches
UPC
671812125665
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
230 Volt
Running Amps
10.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Total Head Lift
87 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
5880
GPH @ 5 feet
5760
GPH @ 10 feet
5520
GPH @ 15 feet
5220
GPH @ 20 feet
5040
Discharge Port Size
1-1/2 Inch and 2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.75 hp
Accessories
Float Switch
Yes
Overview
Weight
61 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Length
11.2 Inches
Product Height
16.4 Inches
UPC
671812125665
