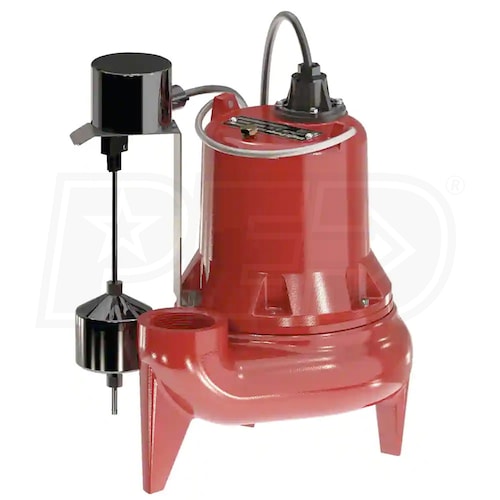

Liberty Pumps LE41AV - 4/10 HP Cast Iron Sewage Pump (2") w/ Vertical Float Switch
Model: LE41AV
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
8580
Gallons
Switch Type
Style
Sewage Pump
GPH
8580 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Submersible Cast Iron Sewage Pump
- A great choice for residential sewage applications
- Heavy-Duty Epoxy Powder Coated Cast Iron Construction
- Designed to provide years of reliable performance
- Vertical Float Switch
- Provides automatic or manual operation via piggyback plug
- Rugged & Thermally Protected 4/10 HP Motor
- Hermetically sealed, permanently lubricated design
- Engineered Multi-Vane Vortex Style Polymer Impeller
- Minimizes clogging and passes spherical solids up to 2"
- High Capacity 2" Discharge
- Will replace most sewage pumps without any plumbing changes
- Quick-Disconnect 10' Power Cord
- Allows for easy replacement of cord without breaking motor seals
- Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
- With permanently lubricated bearings for extended pump life
- Non-Corrosive Stainless Steel & Brass Fasteners
- Increases the lifespan of the pump even in the harshest systems
- 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
22.5
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Vertical Float
GPH @ 0 feet
8580
GPH @ 5 feet
7500
GPH @ 10 feet
6000
GPH @ 15 feet
3900
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.4 hp
Overview
Weight
39 Pounds
Consumer Warranty
3 Years
Product Length
10.5 Inches
Product Width
7.5 Inches
Product Height
13.8 Inches
UPC
671812136616
Style
GPH
8580
Gallons
Switch Type
Style
Sewage Pump
GPH
8580 Gallons
Switch Type
Vertical
