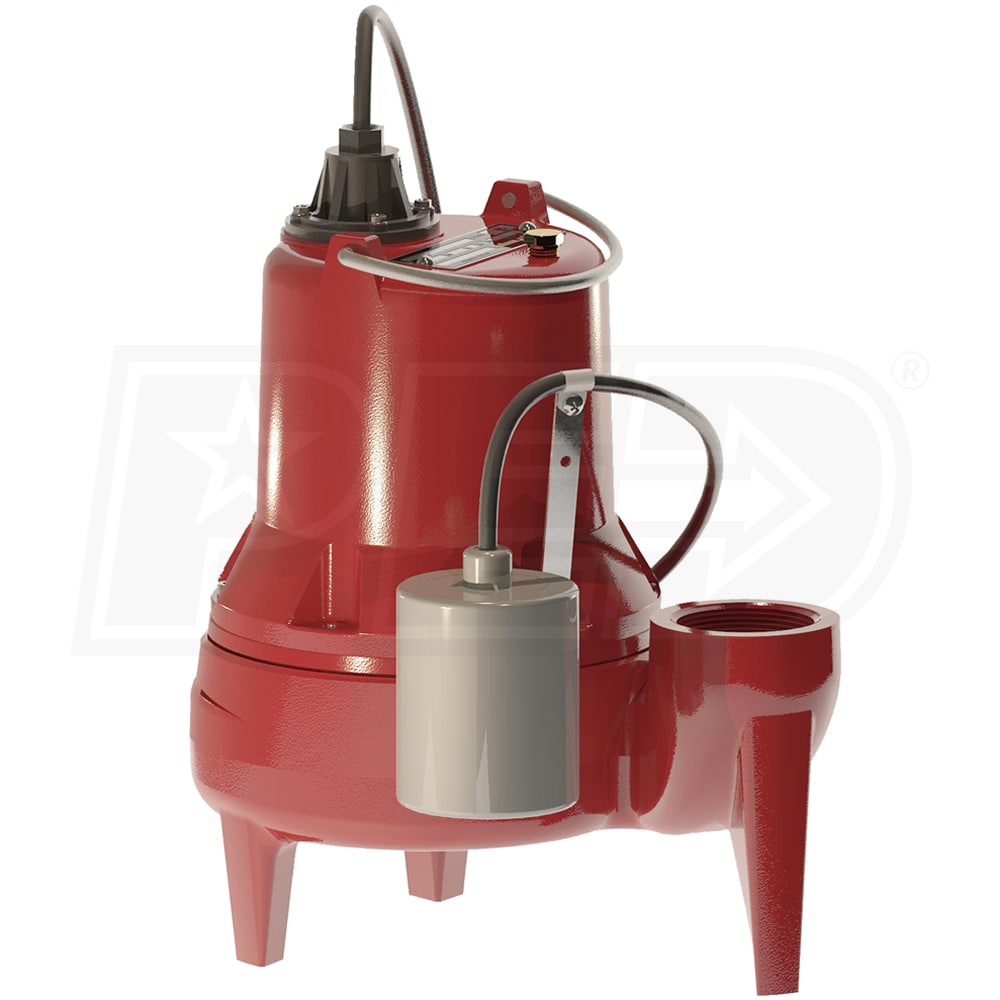

Liberty Pumps LE52A - 1/2 HP Cast Iron Sewage Pump (2") w/ Piggyback Tether Float (208-230V)
Model: LE52A
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
9600
Gallons
Switch Type

Style
Sewage Pump
GPH
9600 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- ***208-230 Volt***
- Automatic Submersible Cast Iron Sewage Pump
- A workhorse for residential & light commercial sewage apps.
- Heavy-Duty Epoxy Powder Coated Cast Iron Construction
- Designed to provide years of reliable performance
- Adjustable, Mercury-Free, Wide Angle Tether Float Switch
- Provides automatic or manual operation via piggyback plug
- Rugged & Thermally Protected 1/2 HP Motor (208-230V)
- Hermetically sealed, permanently lubricated design
- Engineered 2-Vane Semi-Open HYTREL Polymer Impeller
- Corrosion-resistant design, passes spherical solids up to 2"
- High Capacity 2" Discharge
- Will replace most sewage pumps without any plumbing changes
- Quick-Disconnect 10' Power Cord
- Allows for easy replacement of cord without breaking motor seals
- Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
- With permanently lubricated bearings for extended pump life
- Non-Corrosive Stainless Steel & Brass Fasteners
- Increases the lifespan of the pump even in the harshest systems
- 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
208/230 Volt
Running Amps
6.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
9600
GPH @ 5 feet
8400
GPH @ 10 feet
6720
GPH @ 15 feet
5400
GPH @ 20 feet
3300
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Max Head
24 Feet
Engine
Horsepower
.5 hp
Overview
Weight
42 Pounds
Consumer Warranty
3 Years
Product Length
10.7 Inches
Product Width
8.4 Inches
Product Height
13.25 Inches
UPC
671812101614
Style

GPH
9600
Gallons
Switch Type

Style
Sewage Pump
GPH
9600 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- ***208-230 Volt***
- Automatic Submersible Cast Iron Sewage Pump
- A workhorse for residential & light commercial sewage apps.
- Heavy-Duty Epoxy Powder Coated Cast Iron Construction
- Designed to provide years of reliable performance
- Adjustable, Mercury-Free, Wide Angle Tether Float Switch
- Provides automatic or manual operation via piggyback plug
- Rugged & Thermally Protected 1/2 HP Motor (208-230V)
- Hermetically sealed, permanently lubricated design
- Engineered 2-Vane Semi-Open HYTREL Polymer Impeller
- Corrosion-resistant design, passes spherical solids up to 2"
- High Capacity 2" Discharge
- Will replace most sewage pumps without any plumbing changes
- Quick-Disconnect 10' Power Cord
- Allows for easy replacement of cord without breaking motor seals
- Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
- With permanently lubricated bearings for extended pump life
- Non-Corrosive Stainless Steel & Brass Fasteners
- Increases the lifespan of the pump even in the harshest systems
- 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
208/230 Volt
Running Amps
6.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
9600
GPH @ 5 feet
8400
GPH @ 10 feet
6720
GPH @ 15 feet
5400
GPH @ 20 feet
3300
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Max Head
24 Feet
Engine
Horsepower
.5 hp
Overview
Weight
42 Pounds
Consumer Warranty
3 Years
Product Length
10.7 Inches
Product Width
8.4 Inches
Product Height
13.25 Inches
UPC
671812101614
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
208/230 Volt
Running Amps
6.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
9600
GPH @ 5 feet
8400
GPH @ 10 feet
6720
GPH @ 15 feet
5400
GPH @ 20 feet
3300
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Max Head
24 Feet
Engine
Horsepower
.5 hp
Overview
Weight
42 Pounds
Consumer Warranty
3 Years
Product Length
10.7 Inches
Product Width
8.4 Inches
Product Height
13.25 Inches
UPC
671812101614
