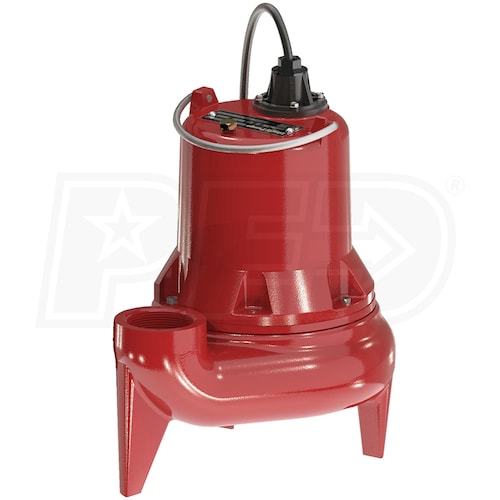

Liberty Pumps LE52M - 1/2 HP Cast Iron Sewage Pump (2") (Non-Automatic) (208-230V)

Model:

LE52M

Write A Review
$524.25
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Liberty Pumps LE52M - 1/2 HP Cast Iron Sewage Pump (2
Liberty Pumps LE52M - 1/2 HP Cast Iron Sewage Pump (2") (Non-Automatic) (208-230V)
Model: LE52M
$524.25
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

Style

Sewage Pump

GPH

9600 Gallons

Switch Type

None



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 208-230V ***NON-AUTOMATIC - Requires Float Switch or Controller***
  • Submersible Cast Iron Sewage Pump
  • A workhorse for residential & light commercial sewage apps.
  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Rugged & Thermally Protected 1/2 HP Motor (208-230V)
  • Hermetically sealed, permanently lubricated design
  • Engineered 2-Vane Semi-Open HYTREL Polymer Impeller
  • Corrosion-resistant design, passes spherical solids up to 2"
  • High Capacity 2" Discharge
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 10' Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
  • With permanently lubricated bearings for extended pump life
  • Non-Corrosive Stainless Steel & Brass Fasteners
  • Increases the lifespan of the pump even in the harshest systems
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

LE52M
specs product image PID-80176
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
208/230 Volt
Running Amps
6.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch

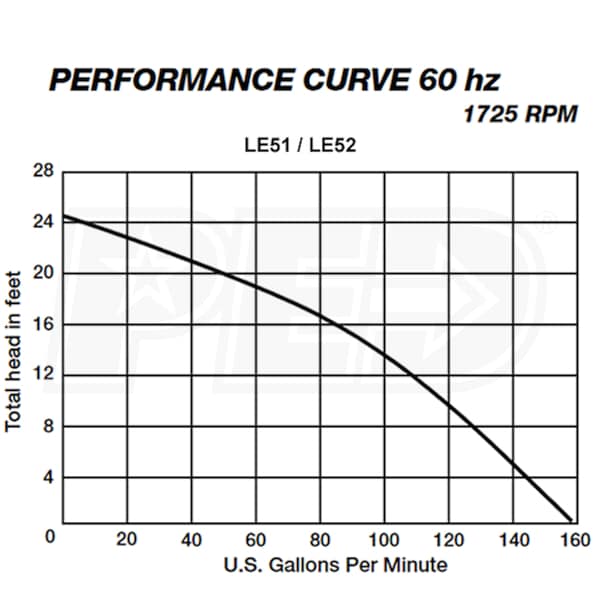

GPH @ 0 feet
9600
GPH @ 5 feet
8400
GPH @ 10 feet
6720
GPH @ 15 feet
5400
GPH @ 20 feet
3300
Discharge Port Size
2 Inch
Check Valve Included
No
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Product Category
Sump Pump
Weight
41 Pounds
Consumer Warranty
3 Years
Product Length
10.7 Inches
Product Width
8.4 Inches
Product Height
13.25 Inches
UPC
671812101638
