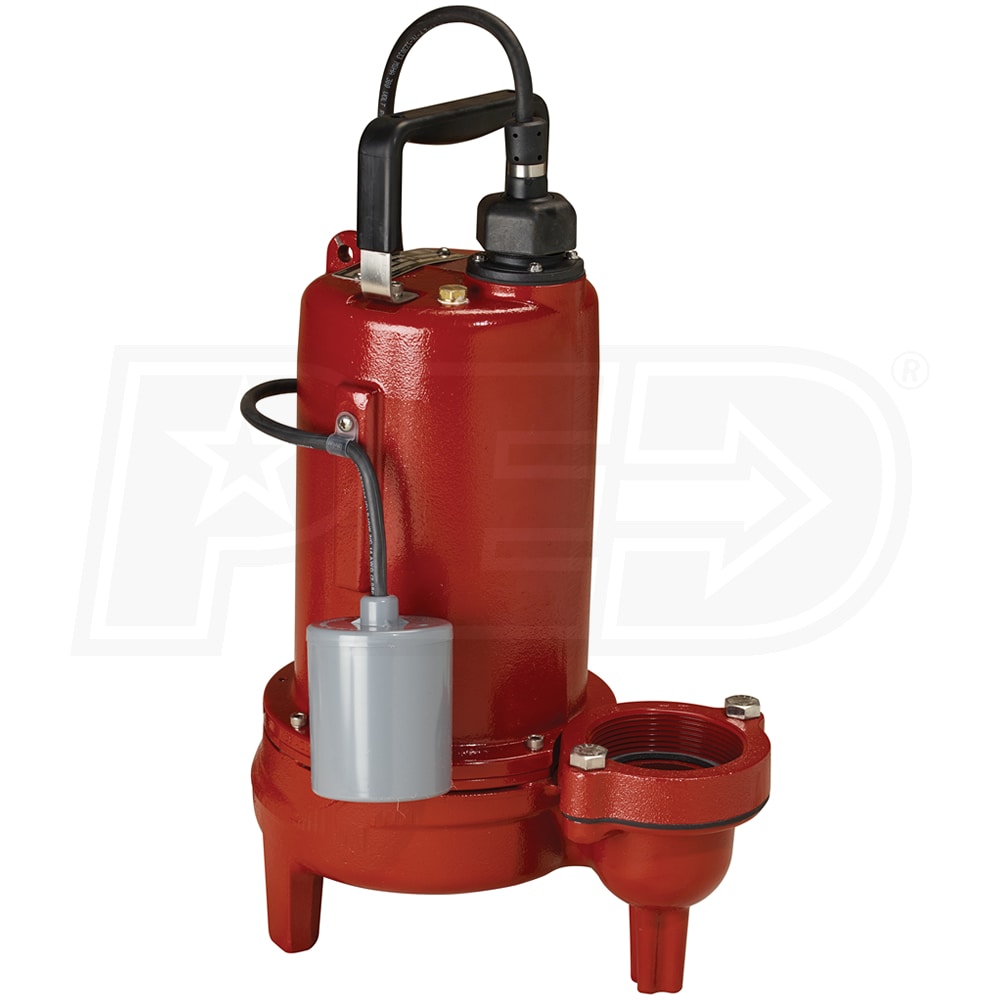

Liberty Pumps LE72A2-2 - 3/4 HP Cast Iron Sewage Pump (2") w/ Piggyback Tether Float (25' Cord) (208-230V)
Model: LE72A2-2
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
Ask a Question
$701.25
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 2 In-Stock
Ships Wednesday, Nov 25th
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Cord Length
Discharge
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Sewage Pumps
GPH
9480
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Sewage Pump
GPH
9480 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • ***208-230 Volt***
  • Automatic Submersible Cast Iron Sewage Pump
  • A workhorse for residential & light commercial sewage apps.
  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Adjustable, Mercury-Free, Wide Angle Tether Float Switch
  • Provides automatic or manual operation via piggyback plug
  • Rugged & Thermally Protected 3/4 HP Motor (208-230V)
  • Hermetically sealed, permanently lubricated design
  • 2-Vane Semi-Open Cast Iron Impeller
  • Heavy-duty design, passes spherical solids up to 2"
  • High Capacity 2" Discharge
  • Will replace most sewage pumps without any plumbing changes
  • Quick-Disconnect 25' Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
  • With permanently lubricated bearings for extended pump life
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest systems
  • 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
208/230 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch

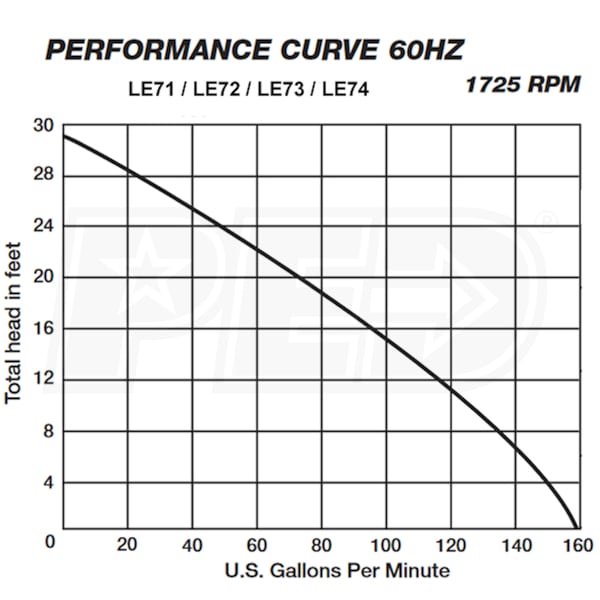

GPH @ 0 feet
9480
GPH @ 5 feet
8640
GPH @ 10 feet
7560
GPH @ 15 feet
6300
GPH @ 20 feet
4500
Discharge Port Size
2 Inch
Built-in check Valve
No
Max Head
29 Feet
Engine
Horsepower
.75 hp
Overview
Weight
61 Pounds
Consumer Warranty
3 Years
Product Length
12.6 Inches
Product Width
9 Inches
Product Height
16.4 Inches
UPC
671812101829
Style
Sewage Pumps
GPH
9480
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Sewage Pump
GPH
9480 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • ***208-230 Volt***
  • Automatic Submersible Cast Iron Sewage Pump
  • A workhorse for residential & light commercial sewage apps.
  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Adjustable, Mercury-Free, Wide Angle Tether Float Switch
  • Provides automatic or manual operation via piggyback plug
  • Rugged & Thermally Protected 3/4 HP Motor (208-230V)
  • Hermetically sealed, permanently lubricated design
  • 2-Vane Semi-Open Cast Iron Impeller
  • Heavy-duty design, passes spherical solids up to 2"
  • High Capacity 2" Discharge
  • Will replace most sewage pumps without any plumbing changes
  • Quick-Disconnect 25' Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
  • With permanently lubricated bearings for extended pump life
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest systems
  • 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
208/230 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
9480
GPH @ 5 feet
8640
GPH @ 10 feet
7560
GPH @ 15 feet
6300
GPH @ 20 feet
4500
Discharge Port Size
2 Inch
Built-in check Valve
No
Max Head
29 Feet
Engine
Horsepower
.75 hp
Overview
Weight
61 Pounds
Consumer Warranty
3 Years
Product Length
12.6 Inches
Product Width
9 Inches
Product Height
16.4 Inches
UPC
671812101829
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
208/230 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
9480
GPH @ 5 feet
8640
GPH @ 10 feet
7560
GPH @ 15 feet
6300
GPH @ 20 feet
4500
Discharge Port Size
2 Inch
Built-in check Valve
No
Max Head
29 Feet
Engine
Horsepower
.75 hp
Overview
Weight
61 Pounds
Consumer Warranty
3 Years
Product Length
12.6 Inches
Product Width
9 Inches
Product Height
16.4 Inches
UPC
671812101829
