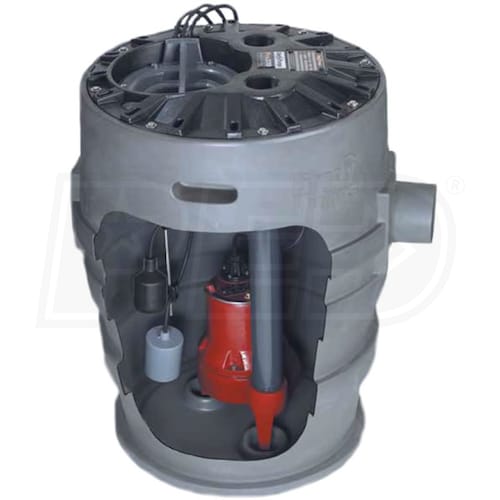

Liberty Pumps P372XLE71 - 3/4 HP Pro370XL Sewage Pump System (21"x30" 16-Bolt Cover)
Model: P372XLE71
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
9480
Gallons
Switch Type

Style
Sewage Pump
GPH
9480 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Pro370XL Series P372XLE51 w/ w/ QuickTree® Technology
- Factory pre-assembled for easy installation
- 21" x 30" (41-Gallon) Polyethylene Basin w/ Molded 4" Inlet
- 16-Bolt Cover - ***IAPMO Listed - Will Pass 10' Stack Test***
- Integrally molded anti-flotation collar & torque stops (pump)
- 3/4 HP Cast Iron Sewage Pump (LE71)
- A workhorse for residential & light commercial sewage apps.
- QuickTree® Technology & Separate Access Cover w/ Rubber Seals
- Allows easy removal of floats without pulling the pump
- Unique integrated cord seal technology in cover
- Piggyback Tether Float Switch
- Provides reliable automatic operation & allows for longer cycles
- Epoxy Powder Coated Cast Iron Construction & SS/Brass Fasteners
- Designed to provide years of reliable performance
- Engineered 2-Vane Semi-Open HYTREL Polymer Impeller
- Corrosion-resistant design, passes spherical solids up to 2"
- Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
- With permanently lubricated bearings for extended pump life
- 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
28
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
9480
GPH @ 5 feet
8640
GPH @ 10 feet
7560
GPH @ 15 feet
6300
GPH @ 20 feet
4500
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
29 Feet
Engine
Horsepower
0.75 hp
Overview
Weight
83 Pounds
Consumer Warranty
3 Years
Product Width
21 Inches
Product Height
30 Inches
UPC
671812112214
