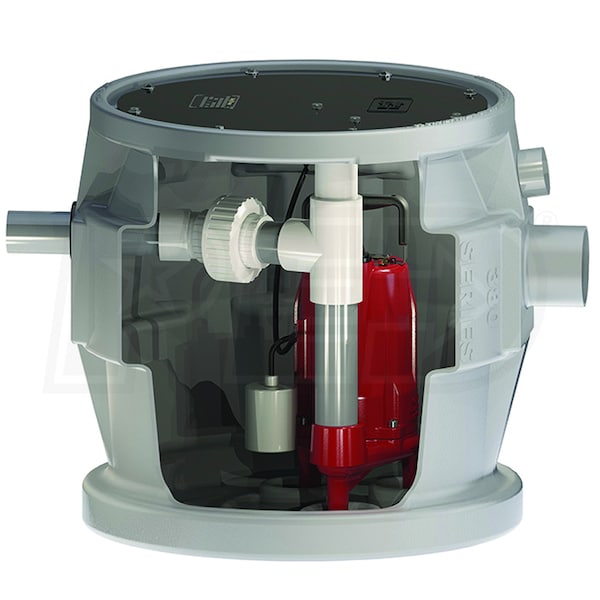

Liberty Pumps P382LE41SD-2 - 4/10 HP Pro380 Cast Iron Sewage Pump System w/ Side Discharge
Model: P382LE41SD-2
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
Ask a Question
$620.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Tuesday, Jan 19th
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Sewage Pumps
GPH
8500
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Sewage Pump
GPH
8500 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • Liberty Pro380 Series P382LE41 w/ QuickTree® Technology
  • Factory pre-assembled for easy installation w/ 2" Discharges
  • 4/10 HP Cast Iron Sewage Pump (LE41A)
  • A workhorse for residential & light commercial sewage apps.
  • QuickTree® Technology & Separate Access Cover w/ Rubber Seals
  • Allows easy removal of floats without pulling the pump
  • Unique integrated cord seal technology in cover
  • Piggyback Tether Float Switch
  • Provides reliable automatic operation & allows for longer cycles
  • Epoxy Powder Coated Cast Iron Construction & SS/Brass Fasteners
  • Designed to provide years of reliable performance
  • Engineered Multi-Vane Vortex Style Polymer Impeller
  • Corrosion-resistant design, passes spherical solids up to 2"
  • Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
  • With permanently lubricated bearings for extended pump life
  • 24" x 24" (41-Gallon) Polyethylene Basin w/ Molded 4" Inlet
  • For easier installation in difficult soil/bedrock locations
  • Integrally molded anti-flotation collar & torque stops (pump)
  • 2" Side Discharge / Vent
  • Union disconnect for easy serviceability
  • 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
22.5
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
8500
GPH @ 5 feet
7500
GPH @ 10 feet
6000
GPH @ 15 feet
3900
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.4 hp
Overview
Weight
67 Pounds
Consumer Warranty
3 Years
Product Width
25 Inches
Product Height
24 Inches
Style
Sewage Pumps
GPH
8500
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Sewage Pump
GPH
8500 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • Liberty Pro380 Series P382LE41 w/ QuickTree® Technology
  • Factory pre-assembled for easy installation w/ 2" Discharges
  • 4/10 HP Cast Iron Sewage Pump (LE41A)
  • A workhorse for residential & light commercial sewage apps.
  • QuickTree® Technology & Separate Access Cover w/ Rubber Seals
  • Allows easy removal of floats without pulling the pump
  • Unique integrated cord seal technology in cover
  • Piggyback Tether Float Switch
  • Provides reliable automatic operation & allows for longer cycles
  • Epoxy Powder Coated Cast Iron Construction & SS/Brass Fasteners
  • Designed to provide years of reliable performance
  • Engineered Multi-Vane Vortex Style Polymer Impeller
  • Corrosion-resistant design, passes spherical solids up to 2"
  • Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
  • With permanently lubricated bearings for extended pump life
  • 24" x 24" (41-Gallon) Polyethylene Basin w/ Molded 4" Inlet
  • For easier installation in difficult soil/bedrock locations
  • Integrally molded anti-flotation collar & torque stops (pump)
  • 2" Side Discharge / Vent
  • Union disconnect for easy serviceability
  • 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
22.5
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
8500
GPH @ 5 feet
7500
GPH @ 10 feet
6000
GPH @ 15 feet
3900
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.4 hp
Overview
Weight
67 Pounds
Consumer Warranty
3 Years
Product Width
25 Inches
Product Height
24 Inches
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
22.5
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
8500
GPH @ 5 feet
7500
GPH @ 10 feet
6000
GPH @ 15 feet
3900
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.4 hp
Overview
Weight
67 Pounds
Consumer Warranty
3 Years
Product Width
25 Inches
Product Height
24 Inches
