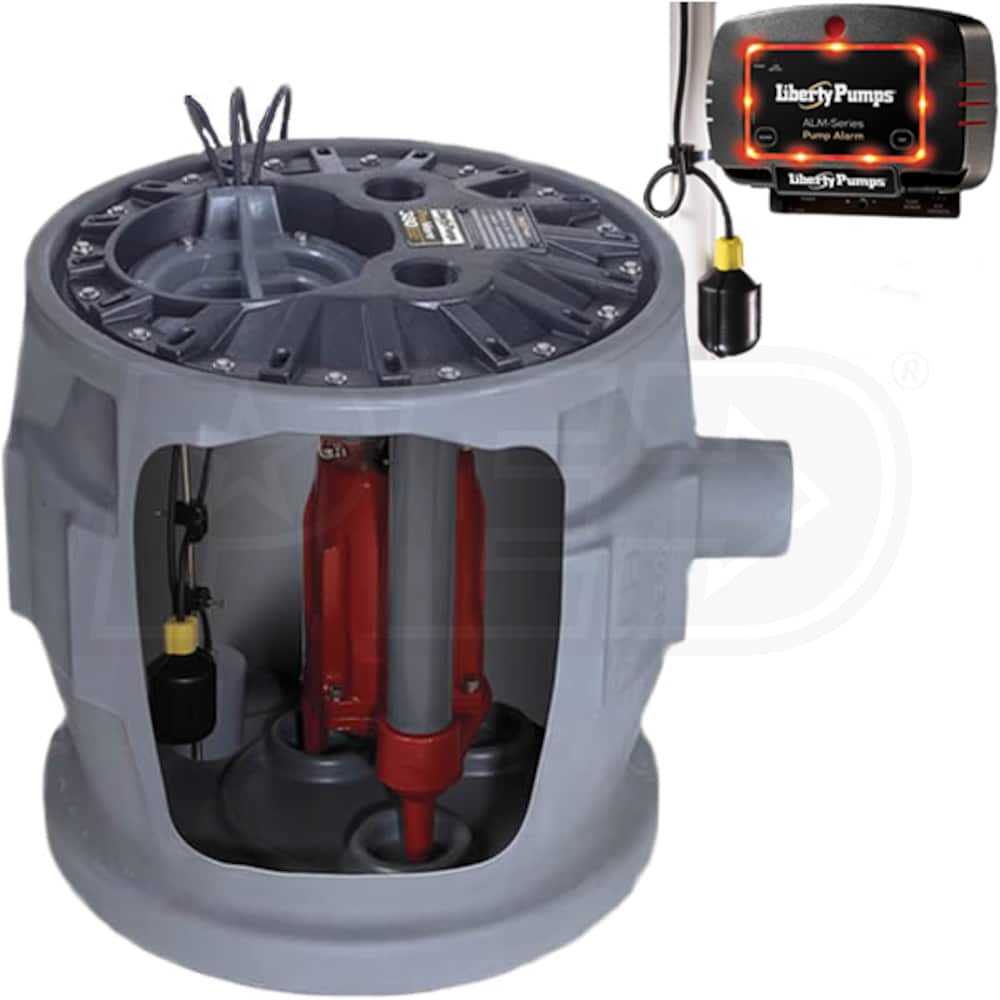

Liberty Pumps P382XPRG101/A2 - 1 HP ProVore® 380 Grinder Pump System (24"x24" 16-Bolt Cover) w/ Alarm
Model: P382XPRG101/A2
4.7 out of 54.7 out of 54.7 out of 54.7 out of 54.7 out of 5
Number of Reviews(3)
Write a Review
$1,433.25
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Wednesday, Nov 25th
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 3
    Reviews
  • 4
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
2760
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Sewage Pump
GPH
2760 Gallons
Switch Type
Piggy-Back Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Liberty ProVoreŽ 380 Series P382XPRG101/A2 Alarmed System
  • ALM-2 Alarm - Factory mounted in basin for proper level control
  • Factory pre-assembled for easy installation
  • 24" x 24" (41-Gallon) Polyethylene Basin w/ Molded 4" Inlet
  • 16-Bolt Cover - ***IAPMO Listed - Will Pass 10' Stack Test***
  • Integrally molded anti-flotation collar & torque stops (pump)
  • 1 HP ProVoreŽ Residential Grinder Pump 115V (PRG101)
  • A workhorse for residential & light commercial sewage apps.
  • Epoxy Powder Coated Cast Iron Construction & SS Fasteners
  • designed to provide years of reliable performance
  • V-SliceŽ Cutter Technology (440 SSl) & 2-Vane Cast Iron Impeller
  • Provides improved shredding performance over radial cutters
  • Keeps debris away from seal area to minimize risk of internal damage
  • QuickTreeŽ Technology & Separate Access Cover w/ Rubber Seals
  • Allows easy removal of floats without pulling the pump & integrated seals
  • Piggyback Tether Float Switch
  • Provides reliable automatic operation & allows for longer cycles
  • Quick-Disconnect 10' Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2760
GPH @ 5 feet
2700
GPH @ 10 feet
2580
GPH @ 15 feet
2400
GPH @ 20 feet
2160
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
1 hp
Overview
Weight
87 Pounds
Consumer Warranty
3 Years
Product Width
25 Inches
Product Height
24 Inches
UPC
671812125115
Style
Sewage Pumps
GPH
2760
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Sewage Pump
GPH
2760 Gallons
Switch Type
Piggy-Back Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Liberty ProVoreŽ 380 Series P382XPRG101/A2 Alarmed System
  • ALM-2 Alarm - Factory mounted in basin for proper level control
  • Factory pre-assembled for easy installation
  • 24" x 24" (41-Gallon) Polyethylene Basin w/ Molded 4" Inlet
  • 16-Bolt Cover - ***IAPMO Listed - Will Pass 10' Stack Test***
  • Integrally molded anti-flotation collar & torque stops (pump)
  • 1 HP ProVoreŽ Residential Grinder Pump 115V (PRG101)
  • A workhorse for residential & light commercial sewage apps.
  • Epoxy Powder Coated Cast Iron Construction & SS Fasteners
  • designed to provide years of reliable performance
  • V-SliceŽ Cutter Technology (440 SSl) & 2-Vane Cast Iron Impeller
  • Provides improved shredding performance over radial cutters
  • Keeps debris away from seal area to minimize risk of internal damage
  • QuickTreeŽ Technology & Separate Access Cover w/ Rubber Seals
  • Allows easy removal of floats without pulling the pump & integrated seals
  • Piggyback Tether Float Switch
  • Provides reliable automatic operation & allows for longer cycles
  • Quick-Disconnect 10' Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2760
GPH @ 5 feet
2700
GPH @ 10 feet
2580
GPH @ 15 feet
2400
GPH @ 20 feet
2160
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
1 hp
Overview
Weight
87 Pounds
Consumer Warranty
3 Years
Product Width
25 Inches
Product Height
24 Inches
UPC
671812125115
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2760
GPH @ 5 feet
2700
GPH @ 10 feet
2580
GPH @ 15 feet
2400
GPH @ 20 feet
2160
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
1 hp
Overview
Weight
87 Pounds
Consumer Warranty
3 Years
Product Width
25 Inches
Product Height
24 Inches
UPC
671812125115
Reviews
(3)
+
Liberty Pumps P382XPRG101/A2 Reviews & Ratings
Product Q&A
(4)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
Will this pump system work for a 950 sq.ft.house? It has 3 sinks, 2 toilets, and 1 shower with a max 2 ft lift and 200 ft horizontal run to gravity 6" sewer.
Mike
from Washington
March 14, 2018
Answer
Based on your description, that Liberty P382XPRG101/A1 Grinder System would certainly be a good fit for you. Please be aware, however, that IF you are installing this system outdoors, you would need a different high water alarm.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
How do I figure out how far a sewage pump will push horizontally? I need 5' of rise but 250' of travel. Thanks!
Matt B.
from Washington
April 03, 2017
Answer
Hi Matt, that's a great question! In most cases we don't get the actual lift and distance needed. We usually just get something like, "how far will this pump pump my sewage?" Assuming this is for a typical residential application, you would need a good 1/2HP to 3/4HP sewage pump for your distance. If you prefer a "grinder" pump, then the Liberty 1HP ProVore will definitely handle the job for you. Just make sure that you pipe it with 2" PVC all the way out.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
Can this be put into the ground and cemented around the top?
Kenneth K.
from Pennsylvania
March 08, 2017
Answer
While these are designed to be installed in-ground, you definitely want to have access to the basin for service and maintenance. You also need to install them per the INSTALLATION MANUAL and you local code.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
What check valve should I use? I purchased the: Liberty Pumps P382XPRG101/A2 - 1 HP ProVoreŽ 380 Grinder Pump System (24"x24" 16-Bolt Cover) w/ Alarm
Joe
from Ohio
July 02, 2016
Answer
Good Afternoon,

There is two options available depending on your specific application.

Camis Check Valve

or

Liberty HCV200
High-Temperature Rubber Flapper - Rated @ 200°F
Provides added protection in high temperature applications.

Thank you
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
