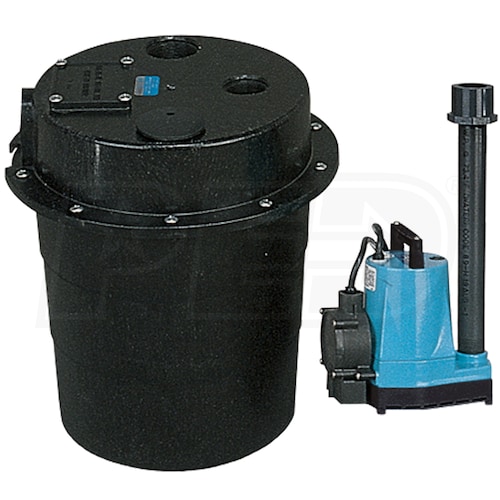

Little Giant WRS-5 - 1/6 HP Pre-Assembled Under Sink / Laundry Tray System

Model:

505055

Write A Review
$305.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability May 13, 2024
Shipping to60601

Little Giant WRS-5 - 1/6 HP Pre-Assembled Under Sink / Laundry Tray System
Little Giant WRS-5 - 1/6 HP Pre-Assembled Under Sink / Laundry Tray System
Model: 505055
$305.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

GPH

900 Gallons

Switch Type

Diaphragm

  • Little Giant WRS-5 - 1/6 HP Laundry Tray Package
  • Ideal for below grade sinks and wash machines
  • Pre-Assembled Design
  • Makes installing this system an easy task
  • Contractor-Grade Aluminum Submersible Utility Pump
  • Protective epoxy coating provides excellent corrosion resistance
  • 1/6 HP Shaded Pole Motor w/ Thermal Overload Protection
  • Oil-filled motor housing provides lower operating temperatures
  • Piggyback Diaphragm Pressure Switch
  • Provides reliable automatic operation
  • 5 Gallon Cylindrical Polypropylene Tank
  • Great for applications with higher water volume
  • Easy Removable Screened Intake
  • Provides added protection and easy cleaning
  • Built-In O-Rings & Rubber Cord Grommet
  • Allows the basin to be water tight
  • Additional Specs:
  • 1-1/2" Intake & Discharge, 2" Vent, 10-Foot Power Cord
  • IAPMO Approved Basin
  • 3-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

505055
specs product image PID-153288
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
6.4
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
.13 inch
Handles Solids
Yes
Maximum PSI
9.1
Float Type
Diaphragm
GPH @ 0 feet
900
GPH @ 5 feet
900
GPH @ 10 feet
720
GPH @ 15 feet
480
Discharge Port Size
1-1/2 Inch
Manual Override
Yes
Max Head
36 Feet
Submersible
Yes
Engine
Horsepower
.16 hp
Overview
Product Category
Sump Pump
Weight
19 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
14.5 Inches
Product Width
14.5 Inches
Product Height
14.75 Inches
UPC
010121050556
