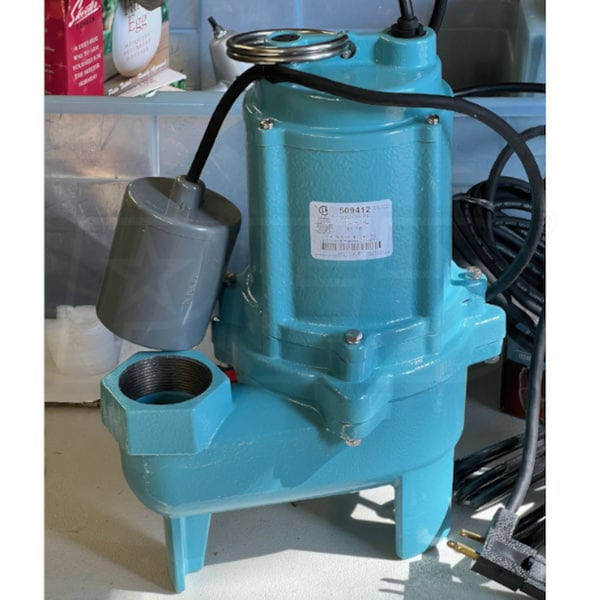

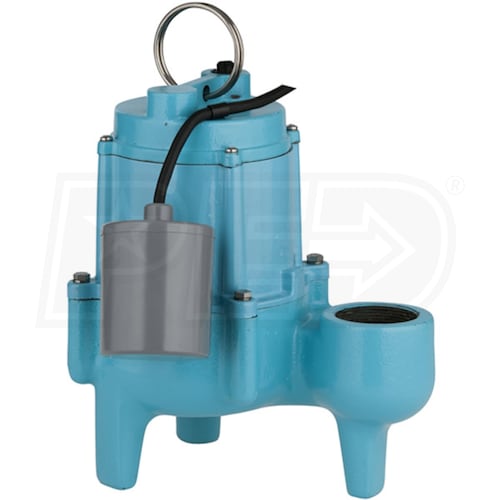

Little Giant 9SC-CIA-RF - 4/10 HP Cast Iron Sewage Pump (2") w/ Piggyback Tether Float

Model:

509412

Write A Review
$329.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 16th
Shipping to60601

Little Giant 9SC-CIA-RF - 4/10 HP Cast Iron Sewage Pump (2
Little Giant 9SC-CIA-RF - 4/10 HP Cast Iron Sewage Pump (2") w/ Piggyback Tether Float
Model: 509412
$329.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

6000 Gallons

Switch Type

Piggy-Back Tether

  • Continuous Duty Rated Automatic Submersible Sewage Pump
  • Vortex Nylon impeller
  • Designed for the tough demanding tasks for wastewater removal
  • Upper sintered sleeve and lower ball bearings
  • Epoxy Coated Cast Iron Pump Housing w/ 2" Discharge
  • Nitrile with carbon and cermaic faces
  • Minimizes rust & corrosion to extend overall pump life
  • Handles 2" solids
  • Epoxy coated cast iron housing, cover and volute
  • 4/10 HP PSC Motor w/ Thermal Overload Protection
  • Designed for continuous duty
  • Energy saving design w/ low amp draw (8-Amps full load)
  • 4 / 10 HP PSC motor with overload protection
  • Cooler running motor which extends the life of the pump
  • 2" FNPT ) discharge
  • Piggyback Tethered Float Switch
  • Switch can be bypassed to run pump manually in an emergency
  • Our SKU number(s): Little Giant 509204
  • The manufacturer model number(s): Little Giant 509204
  • Epoxy Coated Cast Iron Volute w/ Vortex Style Nylon Impeller
  • Non-clogging design passes up to 2" spherical solids
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection is harsh wastewater condtions
  • Upper Sintered Sleeve Bearings & Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • Stainless Steel Screws, Bolts & Handle
  • Never worry about sheet metal parts to rust or corrode
  • 20-Foot SJTW Power Cord
  • 20' Max Shutoff Head
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

509412
specs product image PID-109618
General Information
Product Category
Sump Pump
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
8
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch

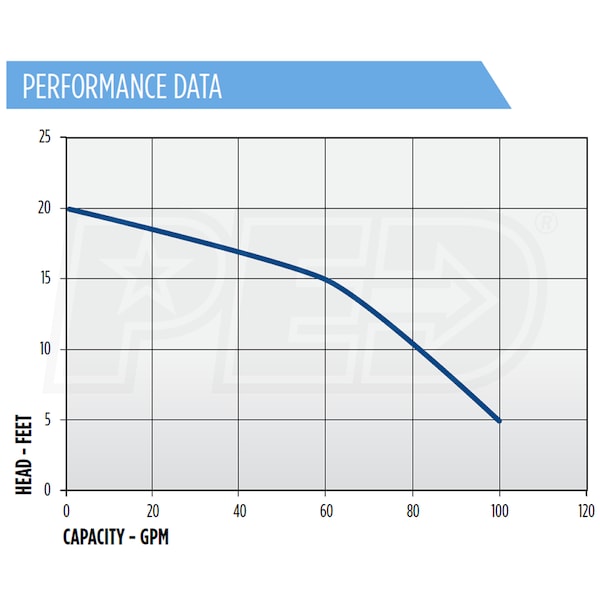

GPH @ 0 feet
6000
GPH @ 5 feet
6000
GPH @ 10 feet
4800
GPH @ 15 feet
3600
Discharge Port Size
2 Inch
Check Valve Included
No
Float On
16-19 Inches
Float Off
9-11 Inches
Manual Override
Yes
Engine
Horsepower
.4 HP
Overview
Product Category
Sump Pump
Weight
38.4 Pounds
Consumer Warranty
3 Years
Product Length
10.4 Inches
Product Width
8.6 Inches
Product Height
13.6 Inches
UPC
010121003248
