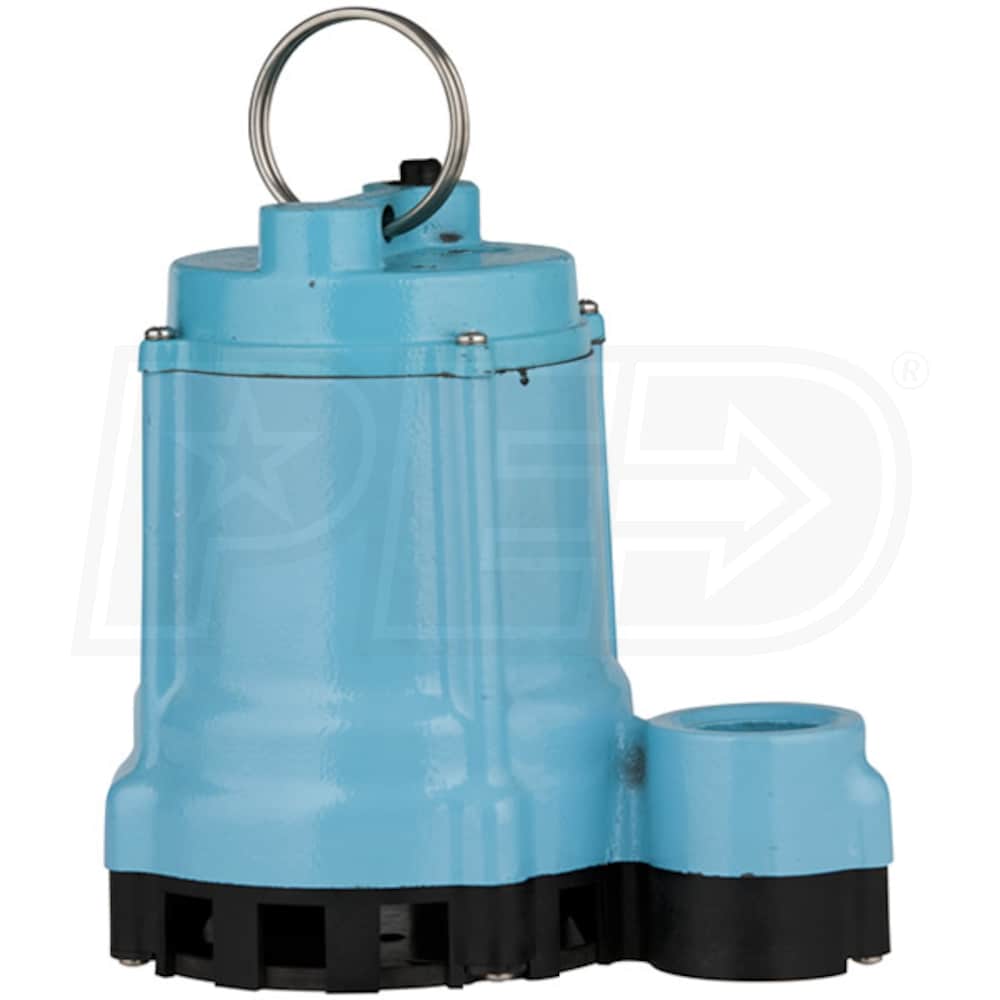

Little Giant 9EC-CIM - 4/10 HP Cast Iron Effluent Pump (20' Cord) (Non-Automatic)
Model: 509805
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
4200
Gallons
Switch Type
None
Style
Effluent
GPH
4200 Gallons
Switch Type
None
Features
Features
- *NON-AUTOMATIC - Float Switch Req'd For Auto Operation *
- Continuous Duty Rated Submersible Effluent Pump
- For sump & effluent applications
- Epoxy Coated Cast Iron Pump Housing
- Minimizes rust & corrosion to extend overall pump life
- 4/10 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw (7.5-Amps full load)
- Cooler running motor which extends the life of the pump
- Vortex Style Nylon Impeller
- Non-clogging design passes up to 3/4" solids
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel intake plate, screws, bolts and handle
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection for extended pump life
- Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
- Minimizes friction while providing smooth & quiet operation
- 20-Foot Power Cord
- 2-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
7.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch

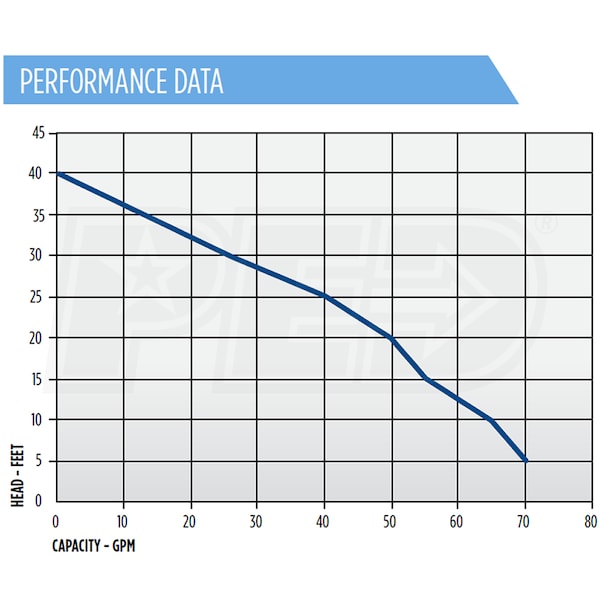

GPH @ 0 feet
4200
GPH @ 5 feet
4200
GPH @ 10 feet
3900
GPH @ 20 feet
3000
Discharge Port Size
1-1/2 Inch
Engine
Horsepower
.4 hp
Overview
Weight
27.5 Pounds
Product Length
8.9 Inches
Product Width
8.4 Inches
Product Height
11 Inches
