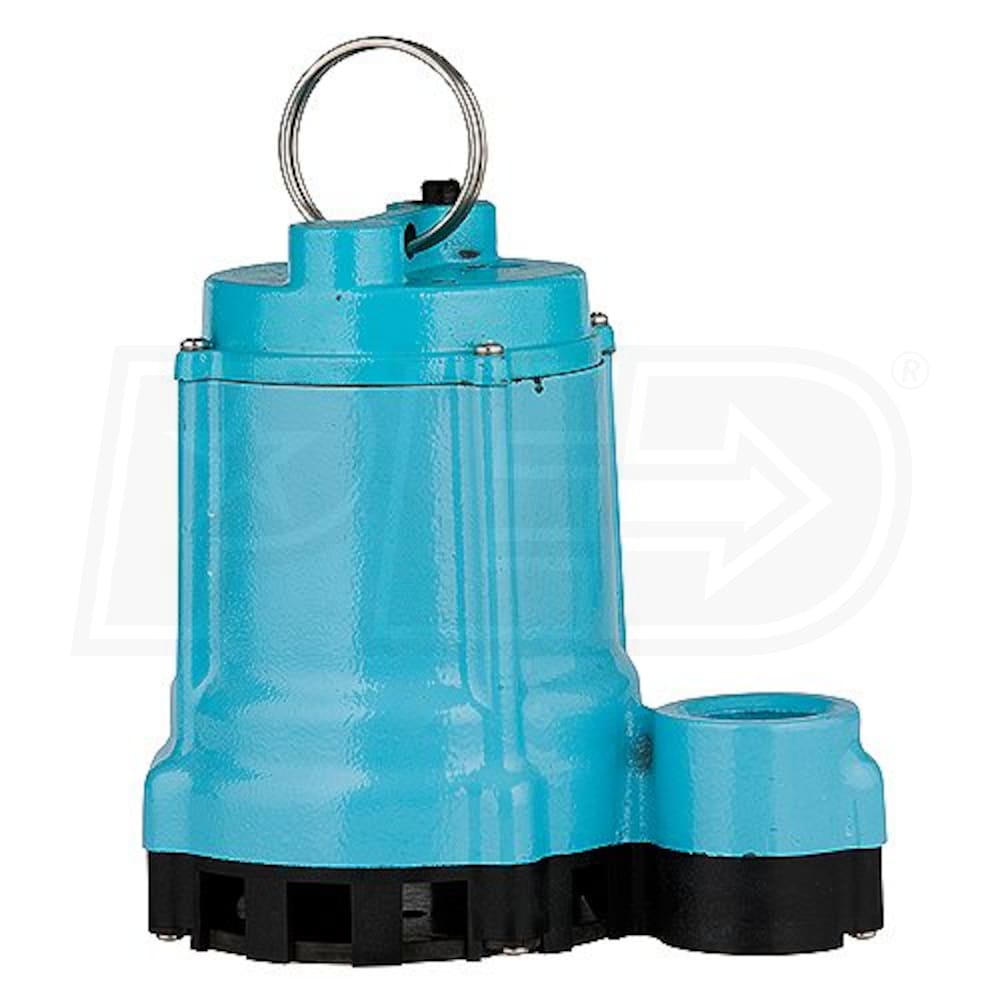

Little Giant 9EC-CIM - 4/10 HP Cast Iron Effluent Pump (30' Cord) (Non-Automatic)
Model: 509808
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$244.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
4200
Gallons
Switch Type
None
Style
Primary
GPH
4200 Gallons
Switch Type
None
Features
Features
  • *NON-AUTOMATIC - Float Switch Req'd For Auto Operation *
  • Continuous Duty Rated Automatic Submersible Effluent Pump
  • For sump & effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 4/10 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (7.5-Amps full load)
  • Cooler running motor which extends the life of the pump
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 3/4" solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 30-Foot Power Cord
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
7.5
Power Cord Length
30 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch

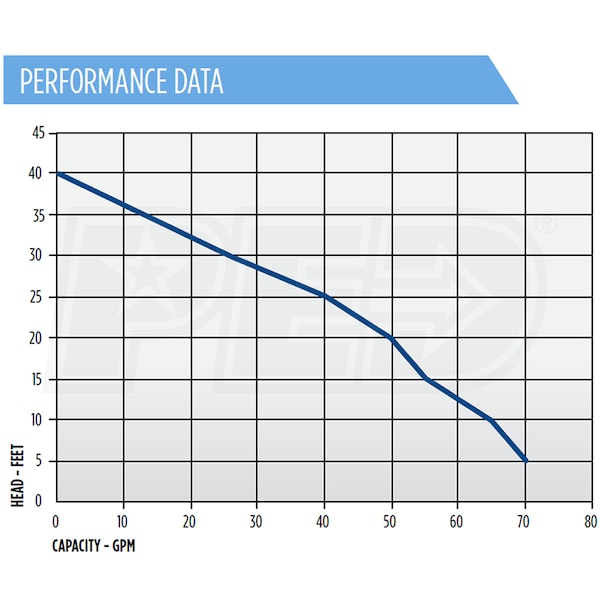

GPH @ 0 feet
4200
GPH @ 5 feet
4200
GPH @ 10 feet
3900
GPH @ 20 feet
3000
Discharge Port Size
1-1/2 Inch
Engine
Horsepower
.4 hp
Overview
Weight
38.5 Pounds
Product Length
8.9 Inches
Product Width
8.4 Inches
Product Height
11 Inches
UPC
010121003217
Style
Primary Sumps Pumps
GPH
4200
Gallons
Switch Type
None
Style
Primary
GPH
4200 Gallons
Switch Type
None
Features
Features
  • *NON-AUTOMATIC - Float Switch Req'd For Auto Operation *
  • Continuous Duty Rated Automatic Submersible Effluent Pump
  • For sump & effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 4/10 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (7.5-Amps full load)
  • Cooler running motor which extends the life of the pump
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 3/4" solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 30-Foot Power Cord
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
7.5
Power Cord Length
30 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
4200
GPH @ 5 feet
4200
GPH @ 10 feet
3900
GPH @ 20 feet
3000
Discharge Port Size
1-1/2 Inch
Engine
Horsepower
.4 hp
Overview
Weight
38.5 Pounds
Product Length
8.9 Inches
Product Width
8.4 Inches
Product Height
11 Inches
UPC
010121003217
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
7.5
Power Cord Length
30 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
4200
GPH @ 5 feet
4200
GPH @ 10 feet
3900
GPH @ 20 feet
3000
Discharge Port Size
1-1/2 Inch
Engine
Horsepower
.4 hp
Overview
Weight
38.5 Pounds
Product Length
8.9 Inches
Product Width
8.4 Inches
Product Height
11 Inches
UPC
010121003217
