Features
Style
Sewage Pump
GPH
3000 Gallons
Switch Type
None
- ***NON-AUTOMATIC - Requires Float Switch*** (230V)
- Little Giant 16G Series 1 HP Grinder Pump
- Designed for residential and light commercial applications
- Ideal replacement for effluent/sewage pumps that bind and clog
- Epoxy Powder Coated Cast Iron Construction
- Provides excellent corrosion-resistance & durability
- 27-Stationary & 8-Rotating Blade Cutting Mechanism (440 Stainless Steel)
- 3450 RPM design provides over 700k cuts per minute
- Easily handles flushables and other debris
- Heavy-Duty 1 HP Single-Phase Motor (230V)
- Class F motor for optimal power
- Capacitor start, capacitor run design w/ internal overload protection
- Silicone Carbide Mechanical Seal
- Provides lower thermal expansion and higher abrasion resistance
- Up to 6X longer life compared to carbon ceramic seals
- 420 Stainless Steel Shaft w/ Upper/Lower Ball Bearings
- Minimizes friction while providing smooth & quiet operation
- 1-1/4" Discharge w/ 2" NPT Adapter
- Compatible with grinder and effluent/sewage applications
- 20' Power Cord
- Replaceable design, sealed at connection for easier service
- Non-Skid, Adjustable Legs
- Helps keep the pump level and in-place during operation
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
509812
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
6.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Stainless Steel
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2976
GPH @ 20 feet
2976
Discharge Port Size
1-1/4 Inch and 2 Inch
Check Valve Included
No
Max Head
53 Feet
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Product Category
Sump Pump
Weight
76 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
11.33 Inches
Product Width
10.03 Inches
Product Height
18.4 Inches
UPC
0010121004078
Reviews
Little Giant 509812 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Jim, the Sump Pump Expert
How-To Articles
How Often to Pump a Septic Tank
Living in the countryside is great, but it does come with some additional respo...
How to Pick the Perfect Sewage Pump
Ask anyone; who wants to think about sewage in their home? Centuries ago...
Sump Pumps How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

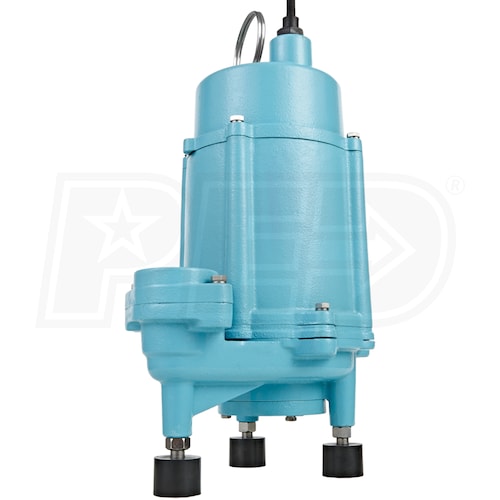

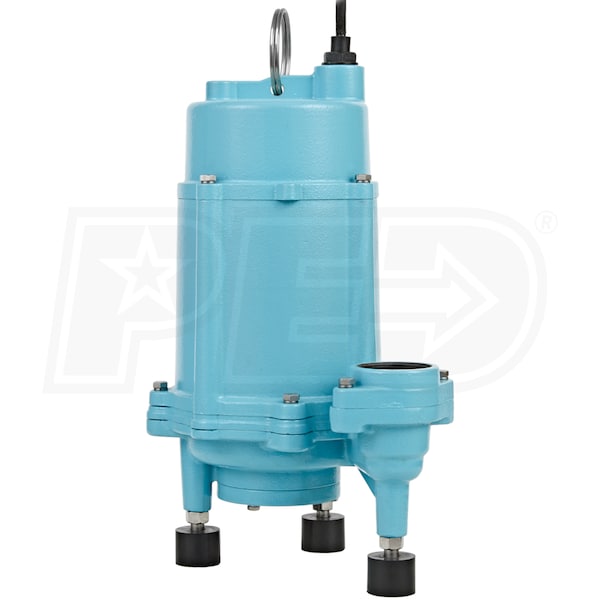

Little Giant 16G-M231-20 - 1 HP Grinder Pump (Non-Automatic) (230V)
