Little Giant 16JF2V2D - Pit Plus® Jr. 1 HP Premium Simplex Grinder Pump System w/ Tether Float (2" Vent, 2" Discharge)

Model:

509815

Write A Review
$1,194.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability August 06, 2024
Shipping to60601

Little Giant 16JF2V2D - Pit Plus® Jr. 1 HP Premium Simplex Grinder Pump System w/ Tether Float (2
Little Giant 16JF2V2D - Pit Plus® Jr. 1 HP Premium Simplex Grinder Pump System w/ Tether Float (2" Vent, 2" Discharge)
Model: 509815
$1,194.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

3060 Gallons

Switch Type

Tether

  • Little Giant 16JF2V2D - Pit+Plus® Jr. Premium Simplex Grinder System (115V)
  • Most advanced and contractor-friendly sewage basin in the industry
  • Separate Pump And Switch Access Cover
  • Access the pump and/or switch independently
  • No disruption to the plumbing connections
  • Saves time, money, and mess
  • Easy Installation w/ All Materials Included
  • Molded inlet hub, torque stops, 360° molded handle
  • Integrated anti-flotation collar, stainless steel fasteners
  • 4-Inch intake grommet
  • 24" x 24" Basin w/ Functional & Aesthetic Finished Cover
  • 2" discharge, 2" vent recessed location
  • Independent recessed switch module and pump access cover
  • Switch cord grips and locators for directional control
  • Little Giant 16G Series 1 HP Automatic Grinder Pump w/ PB Tethered Float
  • Designed for residential and light commercial applications
  • Ideal replacement for effluent/sewage pumps that bind and clog
  • Epoxy Powder Coated Cast Iron Construction
  • Provides excellent corrosion-resistance & durability
  • 27-Stationary & 8-Rotating Blade Cutting Mechanism (440 Stainless Steel)
  • 3450 RPM design provides over 700k cuts per minute
  • Easily handles flushables and other debris
  • Piggyback Tether Float Switch
  • Provides reliable automatic operation
  • 20-Foot Power Cord
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

509815
specs product image PID-153039
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Handles Solids
Yes
Float Type
Tether Switch

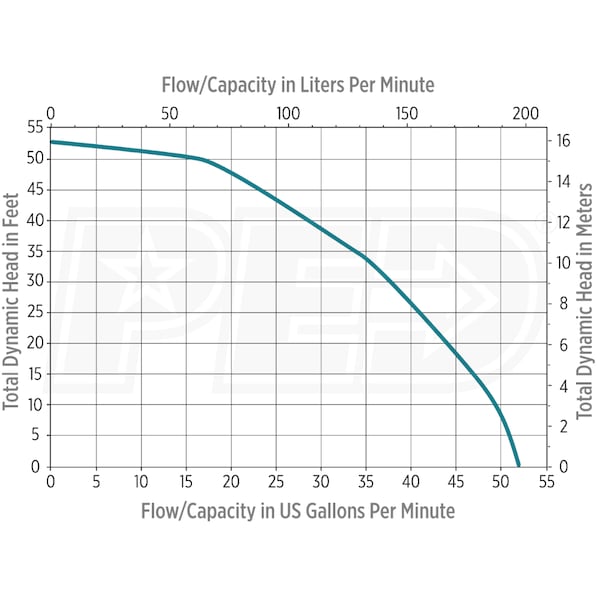

GPH @ 0 feet
3060
GPH @ 5 feet
3060
GPH @ 10 feet
2958
GPH @ 15 feet
2796
GPH @ 20 feet
2634
Discharge Port Size
2 Inch
Check Valve Included
Yes
Manual Override
Yes
Max Head
51 Feet
Engine
Continuous Operation
Yes
Horsepower
1 HP
Overview
Product Category
Sump Pump
Assembly Required
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
24 Inches
Product Width
24 Inches
Product Height
24 Inches
UPC
010121999398
