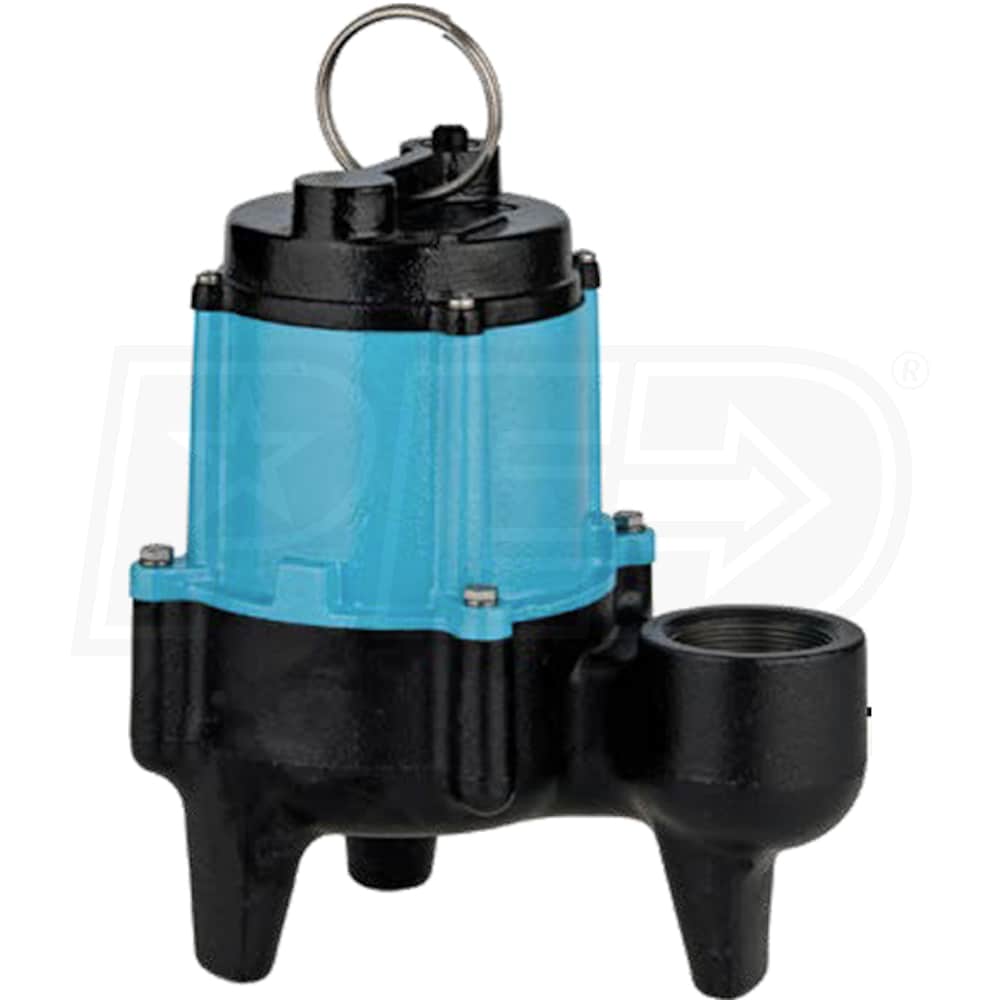

Little Giant 10SC-CIM 115V - 1/2 HP Cast Iron Sewage Pump (3") (20' Cord) (Non-Automatic)
Model: 511435
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
7800
Gallons
Switch Type
None
Style
Sewage Pump
GPH
7800 Gallons
Switch Type
None
Features
Features
- *Non-Automatic - Requires Float Switch or Controller*
- Continuous Duty Rated Automatic Submersible Sewage Pump
- Designed for the tough demanding tasks for wastewater removal
- Epoxy Coated Cast Iron Housing w/ 3" Discharge
- Minimizes rust & corrosion to extend overall pump life
- 1/2 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw (11-Amps full load)
- Cooler running motor which extends the life of the pump
- Epoxy Coated Cast Iron Volute w/ Vortex Style Thermoplastic Impeller
- Non-clogging design passes up to 2" spherical solids
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection is harsh wastewater conditions
- Upper Sintered Sleeve Bearings & Lower Ball Bearings
- Minimizes friction while providing smooth & quiet operation
- Stainless Steel Screws, Bolts & Handle
- Never worry about sheet metal parts that rust or corrode
- 20-Foot SJTW Power Cord
- 25' Max Shutoff Head
- 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
11
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch

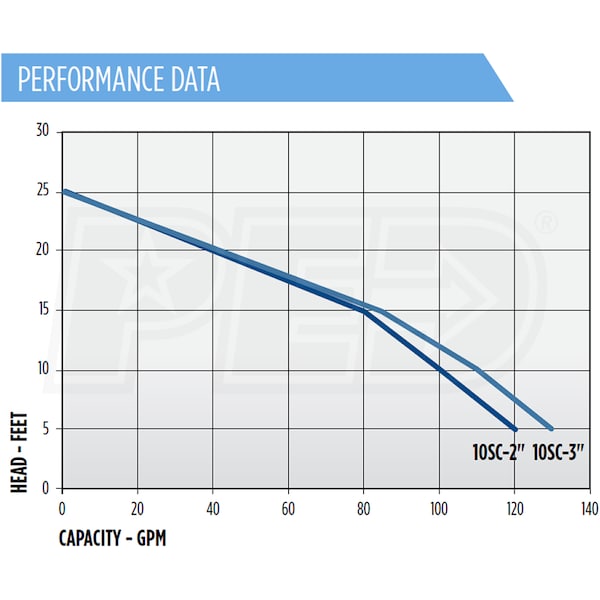

GPH @ 0 feet
7800
GPH @ 5 feet
7800
GPH @ 10 feet
6600
GPH @ 15 feet
5100
Discharge Port Size
3 Inch
Max Head
25 Feet
Engine
Horsepower
.5 hp
Overview
Weight
36.5 Pounds
Product Length
10.4 Inches
Product Width
8.6 Inches
Product Height
14 Inches
UPC
010121002937
Style

GPH
7800
Gallons
Switch Type
None
Style
Sewage Pump
GPH
7800 Gallons
Switch Type
None
Features
Features
- *Non-Automatic - Requires Float Switch or Controller*
- Continuous Duty Rated Automatic Submersible Sewage Pump
- Designed for the tough demanding tasks for wastewater removal
- Epoxy Coated Cast Iron Housing w/ 3" Discharge
- Minimizes rust & corrosion to extend overall pump life
- 1/2 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw (11-Amps full load)
- Cooler running motor which extends the life of the pump
- Epoxy Coated Cast Iron Volute w/ Vortex Style Thermoplastic Impeller
- Non-clogging design passes up to 2" spherical solids
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection is harsh wastewater conditions
- Upper Sintered Sleeve Bearings & Lower Ball Bearings
- Minimizes friction while providing smooth & quiet operation
- Stainless Steel Screws, Bolts & Handle
- Never worry about sheet metal parts that rust or corrode
- 20-Foot SJTW Power Cord
- 25' Max Shutoff Head
- 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
11
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
7800
GPH @ 5 feet
7800
GPH @ 10 feet
6600
GPH @ 15 feet
5100
Discharge Port Size
3 Inch
Max Head
25 Feet
Engine
Horsepower
.5 hp
Overview
Weight
36.5 Pounds
Product Length
10.4 Inches
Product Width
8.6 Inches
Product Height
14 Inches
UPC
010121002937
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
11
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
7800
GPH @ 5 feet
7800
GPH @ 10 feet
6600
GPH @ 15 feet
5100
Discharge Port Size
3 Inch
Max Head
25 Feet
Engine
Horsepower
.5 hp
Overview
Weight
36.5 Pounds
Product Length
10.4 Inches
Product Width
8.6 Inches
Product Height
14 Inches
UPC
010121002937
