Free Shipping on Sump Pumps and Accessories*

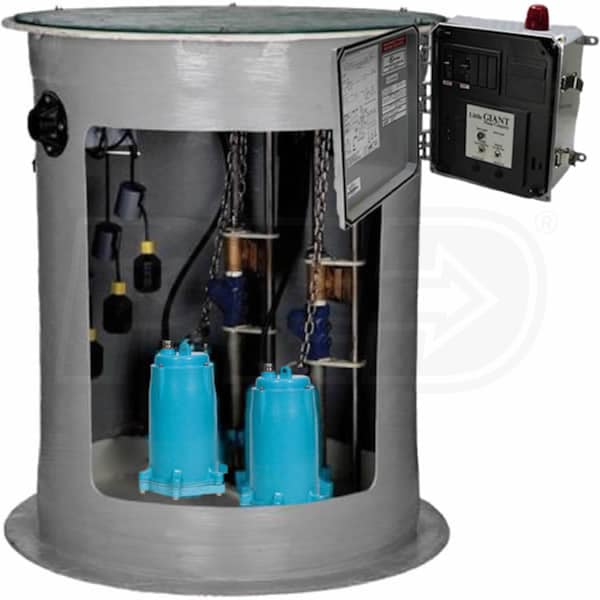

Little Giant GP-DPLX3660 - 2 HP GP Series Duplex Grinder Pump System (36"x 60" - 208-230V 1)

Little Giant GP-DPLX3660 - 2 HP GP Series Duplex Grinder Pump System (36"x 60" - 208-230V 1)
Our Price
Compare Prices
Shipping Info
Model: 520841
$6,079.00

Only 1 In-Stock
Ships Monday, Mar 25th
Add-Ons
+$50.00
In-Stock $6,079.00Buy Now
$6,129.00Visit Site
Only 1 In-Stock
Ships Monday, Mar 25th
Shipping Info
Shipping Info
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
1920
Gallons
Switch Type
Tether Float Switch
Style
Sewage Pump
GPH
1920 Gallons
Switch Type
Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • GP-DPLX3660 - 2 HP Duplex Grinder Package (208-230V 1P)
  • Easy-to-follow installation instructions
  • 36" x 60" (Deep) Heavy-Duty Fiberglass Basin
  • Includes 4 Adapt-a-flex inlet and structural foam cover (6 - 1/4" Bolts)
  • Internal, Pre-mounted NEMA 4X Junction Box
  • 208-230V Duplex Control Panel & Alarm
  • Corrosion-resistant NEMA 4X fiberglass pad-lockable enclosure
  • Start/Run capacitors & start relay necessary for proper motor operation
  • 4-Float (On/Off/High Water) Control Switches w./ Alarm Beacon & Buzzer
  • See and hear when there's a high water event; silence button w/ auto reset
  • (2) Little Giant GP-M231 2 HP Grinder Pump (208-230V Single Phase)
  • Thermally protected, heavy-duty motor provides Up to 130' Lift
  • Epoxy Powder Coated Cast Iron Construction
  • Provides excellent corrosion-resistance & durability
  • Hardened Stainless Steel, Patented Cutter Design
  • Tight cutting clearances for better shearing action; 414,000 cuts/hour
  • EZ-Out Stainless Steel Rail System w/ Sealing Flange
  • SS Guide rails and lifting chain for harsh sewage environments
  • Discharge pipe disconnect, ball check valve & shut-off valve
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
208/230 Volt
Running Amps
13.9
Thermal Protection
Yes
Power Cord Length
15 Feet
Pump
Housing Material
Cast Iron
Float Type
Tether Switch
GPH @ 0 feet
1920
GPH @ 5 feet
1920
GPH @ 10 feet
1920
GPH @ 15 feet
1920
GPH @ 20 feet
1920
Discharge Port Size
1-1/4 Inch
Built-in check Valve
Yes
Manual Override
Yes
Engine
Horsepower
2 hp
Overview
Weight
202 Pounds
Product Length
28 Inches
Product Width
24 Inches
Product Height
62 Inches
Consumer Warranty
2 Years
UPC
010121144552
Style
Sewage Pumps
GPH
1920
Gallons
Switch Type
Tether Float Switch
Style
Sewage Pump
GPH
1920 Gallons
Switch Type
Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • GP-DPLX3660 - 2 HP Duplex Grinder Package (208-230V 1P)
  • Easy-to-follow installation instructions
  • 36" x 60" (Deep) Heavy-Duty Fiberglass Basin
  • Includes 4 Adapt-a-flex inlet and structural foam cover (6 - 1/4" Bolts)
  • Internal, Pre-mounted NEMA 4X Junction Box
  • 208-230V Duplex Control Panel & Alarm
  • Corrosion-resistant NEMA 4X fiberglass pad-lockable enclosure
  • Start/Run capacitors & start relay necessary for proper motor operation
  • 4-Float (On/Off/High Water) Control Switches w./ Alarm Beacon & Buzzer
  • See and hear when there's a high water event; silence button w/ auto reset
  • (2) Little Giant GP-M231 2 HP Grinder Pump (208-230V Single Phase)
  • Thermally protected, heavy-duty motor provides Up to 130' Lift
  • Epoxy Powder Coated Cast Iron Construction
  • Provides excellent corrosion-resistance & durability
  • Hardened Stainless Steel, Patented Cutter Design
  • Tight cutting clearances for better shearing action; 414,000 cuts/hour
  • EZ-Out Stainless Steel Rail System w/ Sealing Flange
  • SS Guide rails and lifting chain for harsh sewage environments
  • Discharge pipe disconnect, ball check valve & shut-off valve
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
208/230 Volt
Running Amps
13.9
Thermal Protection
Yes
Power Cord Length
15 Feet
Pump
Housing Material
Cast Iron
Float Type
Tether Switch
GPH @ 0 feet
1920
GPH @ 5 feet
1920
GPH @ 10 feet
1920
GPH @ 15 feet
1920
GPH @ 20 feet
1920
Discharge Port Size
1-1/4 Inch
Built-in check Valve
Yes
Manual Override
Yes
Engine
Horsepower
2 hp
Overview
Weight
202 Pounds
Product Length
28 Inches
Product Width
24 Inches
Product Height
62 Inches
Consumer Warranty
2 Years
UPC
010121144552
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
208/230 Volt
Running Amps
13.9
Thermal Protection
Yes
Power Cord Length
15 Feet
Pump
Housing Material
Cast Iron
Float Type
Tether Switch
GPH @ 0 feet
1920
GPH @ 5 feet
1920
GPH @ 10 feet
1920
GPH @ 15 feet
1920
GPH @ 20 feet
1920
Discharge Port Size
1-1/4 Inch
Built-in check Valve
Yes
Manual Override
Yes
Engine
Horsepower
2 hp
Overview
Weight
202 Pounds
Product Length
28 Inches
Product Width
24 Inches
Product Height
62 Inches
Consumer Warranty
2 Years
UPC
010121144552
