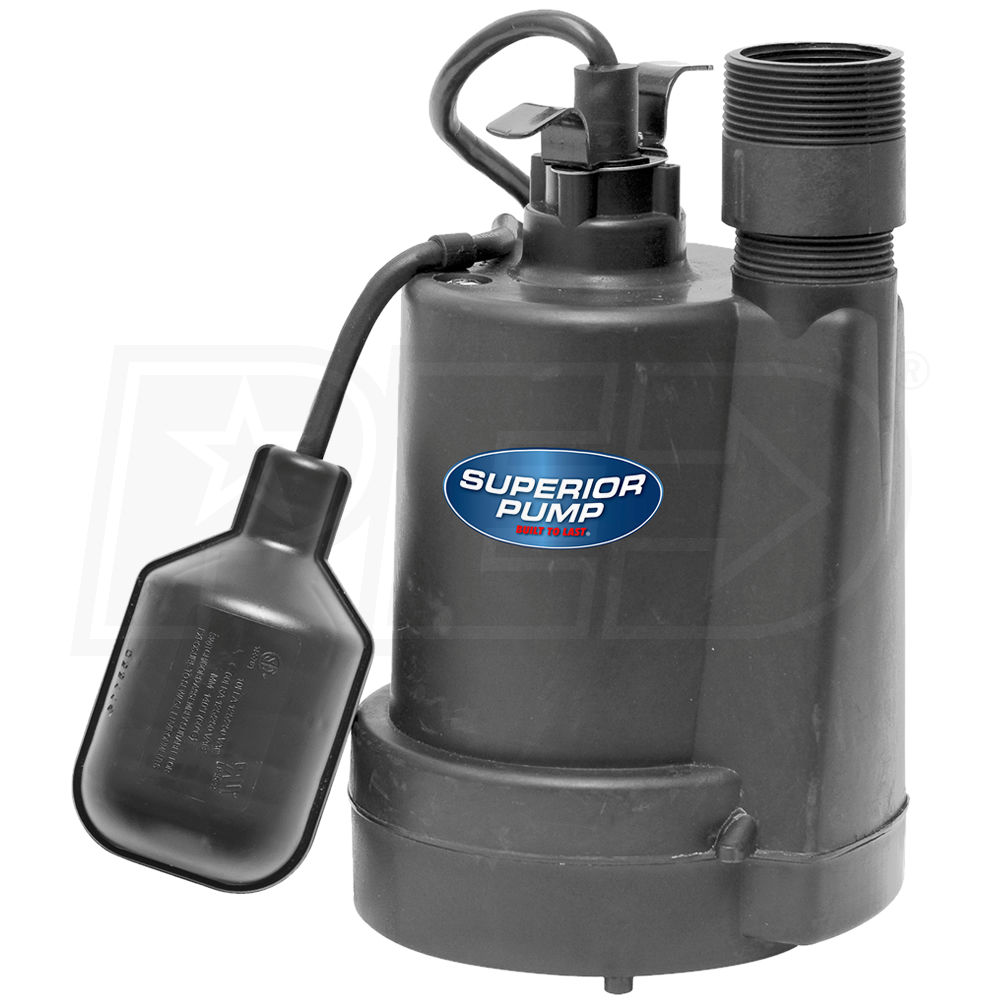

Superior Pump 92250 - 1/4 HP Thermoplastic Submersible Sump Pump w/ Tether Float Switch
Superior Pump 92250 - 1/4 HP Thermoplastic Submersible Sump Pump w/ Tether Float Switch
+
Share This Product
-
Product Description
-
6Reviews
-
3Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
1800
Gallons
Switch Type
Style
Primary
GPH
1800 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Submersible Sump Pump w/ Tether Float Switch
- Ideal for average water removal
- Thermally Protected, 1/4 HP Split Capacitor Motor
- Continuous duty design, only draws 3.8A
- Corrosion-Resistant Thermoplastic Construction
- Designed to maximize pump life
- Bottom Suction Design w/ Intake Screen
- Able to pass up to 1/8" solids
- High-Quality Components
- Stainless steel motor shaft & fasteners
Specifications
Motor
Voltage
120 Volt
Running Amps
3.8
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
17
Pump
Housing Material
Thermoplastic
Float Type
Piggy-Back Tether Switch

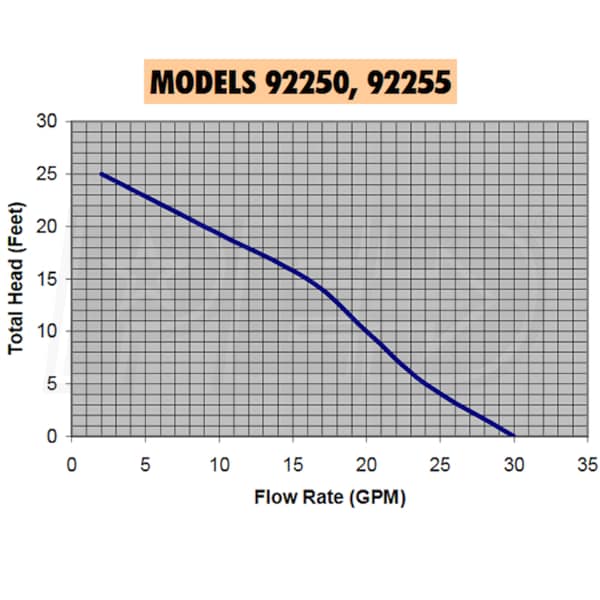

GPH @ 0 feet
1800
GPH @ 5 feet
1320
GPH @ 10 feet
1200
GPH @ 15 feet
960
GPH @ 20 feet
540
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Manual Override
No
Engine
Horsepower
.25 hp
Overview
Weight
8 Pounds
Consumer Warranty
1 Year
Product Length
5.875 Inches
Product Width
5.3125 Inches
Product Height
9.25 Inches
UPC
725113922505
Style
GPH
1800
Gallons
Switch Type
Style
Primary
GPH
1800 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Submersible Sump Pump w/ Tether Float Switch
- Ideal for average water removal
- Thermally Protected, 1/4 HP Split Capacitor Motor
- Continuous duty design, only draws 3.8A
- Corrosion-Resistant Thermoplastic Construction
- Designed to maximize pump life
- Bottom Suction Design w/ Intake Screen
- Able to pass up to 1/8" solids
- High-Quality Components
- Stainless steel motor shaft & fasteners
Specifications
Motor
Voltage
120 Volt
Running Amps
3.8
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
17
Pump
Housing Material
Thermoplastic
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
1800
GPH @ 5 feet
1320
GPH @ 10 feet
1200
GPH @ 15 feet
960
GPH @ 20 feet
540
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Manual Override
No
Engine
Horsepower
.25 hp
Overview
Weight
8 Pounds
Consumer Warranty
1 Year
Product Length
5.875 Inches
Product Width
5.3125 Inches
Product Height
9.25 Inches
UPC
725113922505
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
3.8
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
17
Pump
Housing Material
Thermoplastic
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
1800
GPH @ 5 feet
1320
GPH @ 10 feet
1200
GPH @ 15 feet
960
GPH @ 20 feet
540
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Manual Override
No
Engine
Horsepower
.25 hp
Overview
Weight
8 Pounds
Consumer Warranty
1 Year
Product Length
5.875 Inches
Product Width
5.3125 Inches
Product Height
9.25 Inches
UPC
725113922505
Product Q&A
(3)
+−
Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
howe far this pump push whater
George
from Texas
June 06, 2012
Answer
The Superior pump model 92250 will pump a maximum of 20 feet of head or vertical lift.
Was this answer helpful?
Yes
0
No
0
+−
My current sump pump is 20+ years old and I'm only replacing it for age - it does what it needs to. We have a continuous flow of water from our dehumidifier so it goes off every 2 days and more during very heavy storms. The pit is only 11 inches in diameter and the current submersible pump is 1/4 HP 10 amps. I notice a lot of silt and junk in the pump and this one has never gotten clogged. What would this be a good replacement? Thanks!
William
from Pennsylvania
December 19, 2011
Answer
Due to the operation of the tether float on this pump, I would recommend a pump with a vertical float design. You may want to look at a Pro Series model ST1033 which is designed to fit in basins as narrow as 10 inches. I would also suggest, as do all manufacturers that you check and clean your basins at least once every 1-3 months to insure that the basin is clean of any debris that might impede the operation of the float or pump and also to insure that the pump is operating correctly.
Was this answer helpful?
Yes
0
No
0
+−
Would this pump be suitable for a 12' x 12' basement?
Cody Dix
from Ohio
January 10, 2011
Answer
The interior dimensions of a basement aren't a major factor in sizing a sump pump correctly.
Monitoring your current pump during normal operation and during a storm can give you a better idea of what size pump you would need.
Monitoring your current pump during normal operation and during a storm can give you a better idea of what size pump you would need.
Was this answer helpful?
Yes
0
No
0
