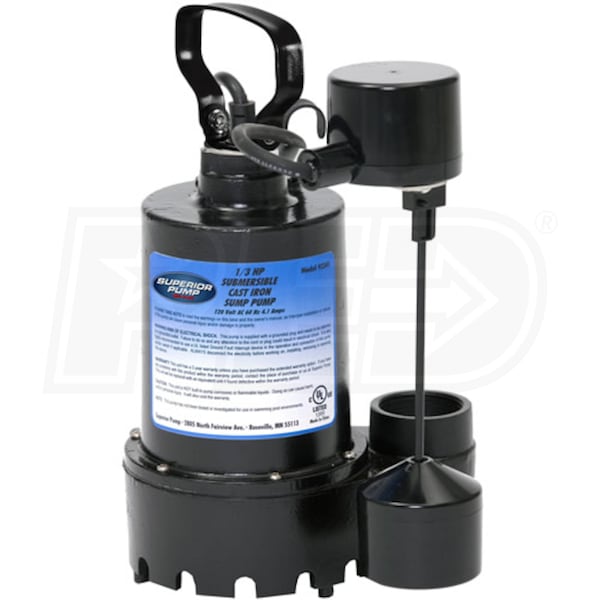

Superior Pump 92341 - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Model: 92341
+
Share This Product
-
Product Description
-
15Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
2760
Gallons
Switch Type

Style
Primary
GPH
2760 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Submersible Sump Pump w/ Vertical Float Switch
- Ideal for average water removal
- Sleek design and works in narrow sump basins
- Thermally Protected, 1/3 HP Split Capacitor Motor
- Continuous duty design, only draws 4.1A
- Heavy-Duty Cast Iron Housing & Base Construction
- For rapid heat dissipation and extended life
- Side/Bottom Suction Design
- Able to pass up to 3/8" solids
- High-Quality Components
- Stainless steel motor shaft & fasteners
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
4.1
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
19
Pump
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
0.375 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2760
GPH @ 5 feet
2160
GPH @ 10 feet
1800
GPH @ 15 feet
1500
GPH @ 20 feet
720
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
3 Years
Product Length
8.25 Inches
Product Width
7.625 Inches
Product Height
10.5 Inches
UPC
725113923410
Style

GPH
2760
Gallons
Switch Type

Style
Primary
GPH
2760 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Submersible Sump Pump w/ Vertical Float Switch
- Ideal for average water removal
- Sleek design and works in narrow sump basins
- Thermally Protected, 1/3 HP Split Capacitor Motor
- Continuous duty design, only draws 4.1A
- Heavy-Duty Cast Iron Housing & Base Construction
- For rapid heat dissipation and extended life
- Side/Bottom Suction Design
- Able to pass up to 3/8" solids
- High-Quality Components
- Stainless steel motor shaft & fasteners
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
4.1
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
19
Pump
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
0.375 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2760
GPH @ 5 feet
2160
GPH @ 10 feet
1800
GPH @ 15 feet
1500
GPH @ 20 feet
720
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
3 Years
Product Length
8.25 Inches
Product Width
7.625 Inches
Product Height
10.5 Inches
UPC
725113923410
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
4.1
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
19
Pump
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
0.375 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2760
GPH @ 5 feet
2160
GPH @ 10 feet
1800
GPH @ 15 feet
1500
GPH @ 20 feet
720
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
3 Years
Product Length
8.25 Inches
Product Width
7.625 Inches
Product Height
10.5 Inches
UPC
725113923410
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
Does this come with two plug-ins or just one for the motor?
ken
from Nevada
September 28, 2020
Answer
This pump has a "piggy back" style plug-in, in which there are two cords: one for the switch and one for the pump.
