Zoeller 105-0001 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch

Close
Zoeller Sump Pumps and Accessories
Model: 105-0001
(Based on expert analysis, manufacturer ratings and customer reviews)
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
73 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
In-Stock In-Stock
Ships Wednesday, Sep 27th

Estimate Arrival
$208.00

StoreShippingPriceShop

In-Stock
Free Shipping
$208.00
No Sales Tax*
(Except IL)
Buy

$208.00
No Sales Tax*
(Except IL)
Visit Site

$208.00
(as of 07:37 CST - Details)
Sales Tax Extra
Visit Site

$276.30
Sales Tax Extra
Visit Site
  • Features
  • Specs
  • 6
    Q&A
  • 73
    Reviews
  • Articles
  • Shipping
  • Accessories
Style
Primary Sumps Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

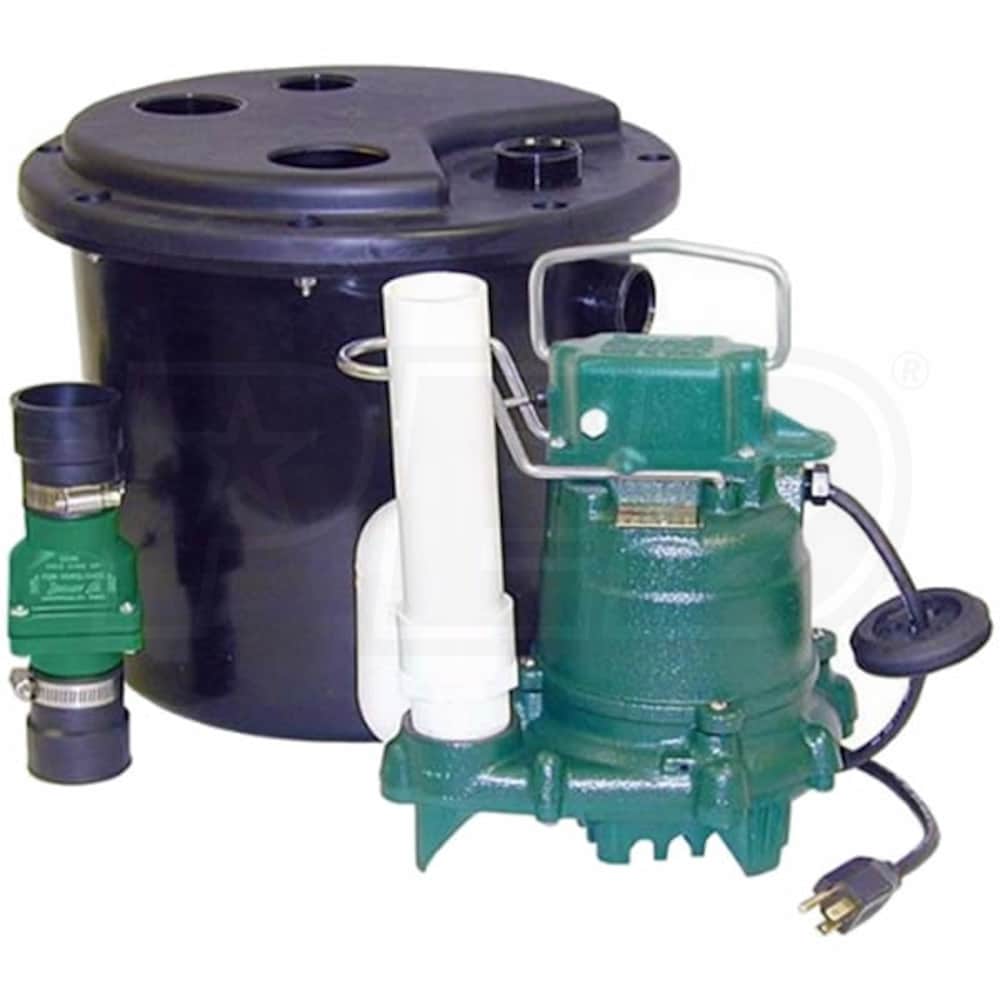

Automatic Remote Drain Pump & Laundry Tray System
Pre-packaged for easy installation

Cast Iron Switch Case, Motor & Pump Housing
Designed for rapid heat dissipation and extended life

Engineered Thermoplastic Base w/ Built-In Strainer
Corrosion resistant design, easily passes laundry lint

1/3 HP Thermally Protected Motor
Oil-filled and hermetically sealed to prevent overheating

Non-Clogging Vortex Impeller
Capable of passing 1/2" diameter solids

Vertical Float Switch
Solid and buoyant polypropylene design

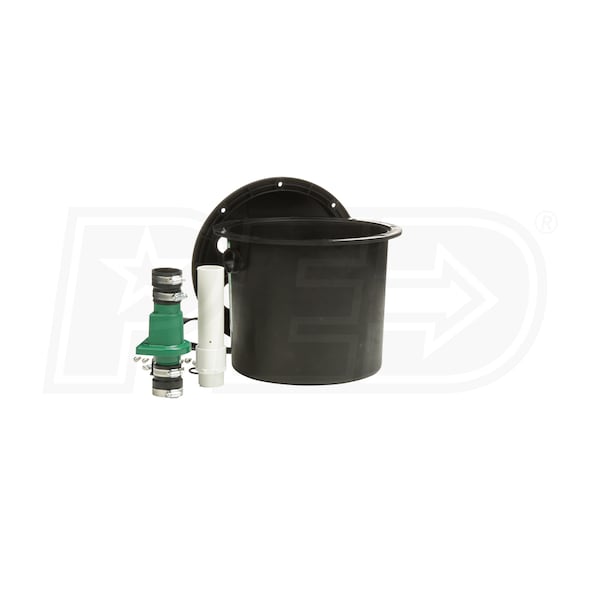

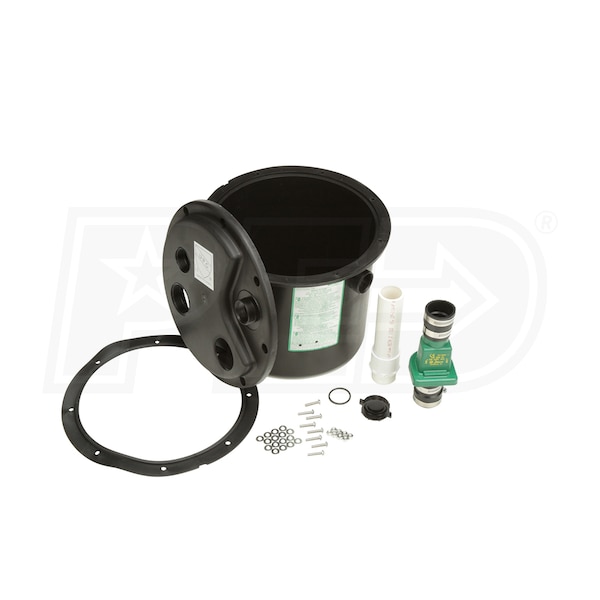

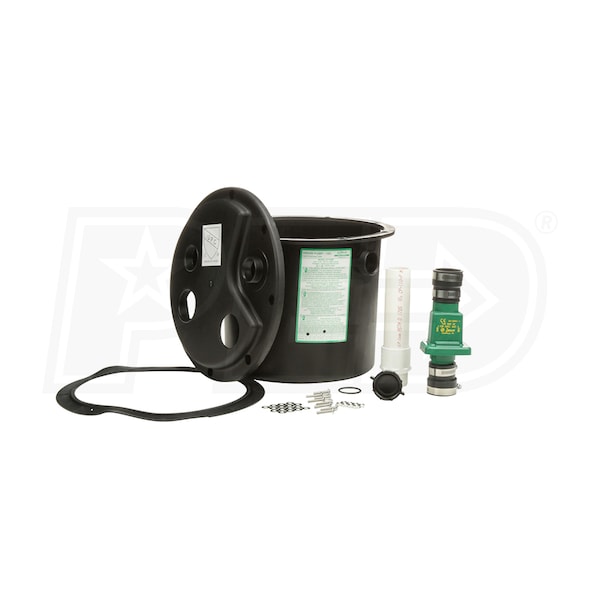

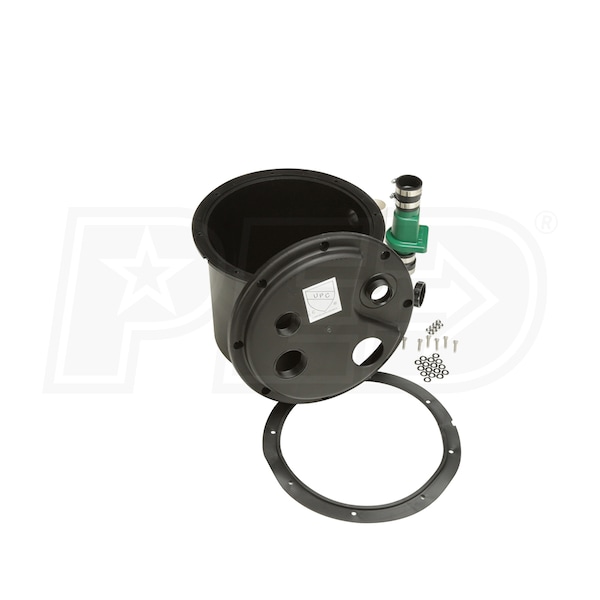

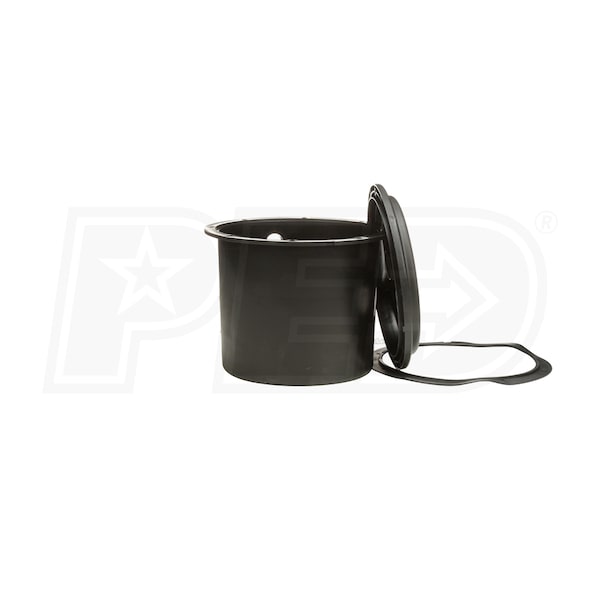

14.5"W x 12.5"H Polyethylene Basin
High capacity, corrosion resistant w/ Gas Tight Cover

Threaded Connection For Easy Installation
1-1/2" Compression Intake, 2" NPT Vent & 1-1/2" NPT Discharge

1-1/2" Slip-On Check Valve
Engineered for longer life & quiet operation

9-Foot Power Cord For Easy Connection

UL Listed


Base
Min Sump Basin Size
15 Inch
Motor
Voltage
120 Volt
Running Amps
9.3
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
7.25 Inches
Float Off
3 Inches
Manual Override
No
Overview
Made in USA
Yes
Weight
30 Pounds
Product Width
14.5 Inches
Product Height
12.5 Inches
Consumer Warranty
3 Years
UPC
053514012953
Model
105-0001
Download Documents
Need Help? Call Our Experts.
Subject: Store ID: Product ID: Data Category: Brand Category:

*Ask Jim about the Zoeller 105-0001. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit
  6 Questions
Q: Jim,
I need to replace my Flotec laundry tray pump system which is getting ready to celebrate its 20th birthday. I really want to buy the Zoeller 105-0001. It looks like a great product. Could I get a copy of the installation manual with the dimensions for the tank and the input and output locations?
Plus, I don't see a float switch. What triggers the pump to turn on and off?

Thank You,
Ray

by Ray Brennan from Pennsylvania on July 05, 2016

A: Ray,

This unit does have vertical float switch. Here are the specs you asked for.

Zoeller 105-0001 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch Spec

Zoeller 105-0001 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch owners manual
by Jim, Product Expert
Q: Zoeller 105-0001 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch

I see this is pictured with a (tank) What all comes with this ? for $214.00

by John S from Texas on June 08, 2015

A: The Zoeller 105-0001 Remote Sink/Drain Pump System includes the M53 Zoeller pump, the check valve, 15.75" x 15.5" polyethylene basin and cover, PVC discharge pipe from the pump to the top of the basin, hardware and cover seal and instruction manual.
by Jim, Product Expert
Q: How many vertical feet and horizontal feet can this pump?
by Katherine from Virginia on January 02, 2015

A: The Zoeller 105-0001 can handle a maximum total head of 19 feet. That said, you typically don't want to max out the ability of the pump so I would recommend keeping that total head at more in the 12 - 16 foot range. The total head takes into account the total vertical lift and FRICTION LOSS based on long horizontal runs and the number of elbows that you incorporate into your discharge configuration.
by Jim, Product Expert
Q: Jim,
Can the discharge on these be reduced to fit a tight install. Also Can it use different style vent

by Lloyd from Pennsylvania on July 09, 2014

A: The Remote Sink/Drain Systems must be installed using the same diameter discharge and venting as instructed in the manual, 1-1/2" discharge and 2" vent. Venting must be done in accordance to local codes. This Zoeller system does however, allow for a few different installation methods, based on your clearance. DO NOT USE AN AUTOMATIC PLUMBING VENT DEVICE SIMILAR TO A "PRO-VENT". Some states require this product to be installed by a licensed plumber.
by Jim, Product Expert
Q: Dear Jim- I want to make sure this is what I'm looking for because the drain basin seems small. I would like to drain a washing machine into a basin and have that pumped into a drain line, are these the correct products, are these basins large enough to handle the discharge from a washing machine?

Thank You

by Robert P from Pennsylvania on November 18, 2013

A: The basin on the Zoeller is 5.8 gallons. The pump will handle 2040GPH at a 10 foot head and should not have any problems handling the discharge from any washing machine.
by Jim, Product Expert
Q: Installing an underground sump pump to drain water coming under the house. Was thinking about ordering the following kit, but I am not sure if the basin is the correct one for a sump pump or if we should switch it to something bigger.
Zoeller 1050001 13 HP M53 Remote SinkDrain Pump System w Vertical Float Switch

Thank you,
Nestor Ho

by Nestor H from Texas on October 21, 2013

A: Thank you for your interest in Sump Pumps Direct. It really depends on how you plan on getting the water into the sump basin. If you are doing a typical basement INSTALLATION, I would advise something more like the Zoeller model M53 or M98, depending on your water table. I would then suggest installing a standard SUMP BASIN and COVER. You can then tie this in to a french drain or you can drill holes in the basin to allow the water to seep through and into the basin for discharge by the pump. If you are looking to install this system outdoors or in a crawl space, the Liberty 1/3 HP Cast Iron Crawl Space Sump Pump Kit, model CSP-257 might be a better choice.
And don't forget the CHECK VALVE.
by Jim, Product Expert
