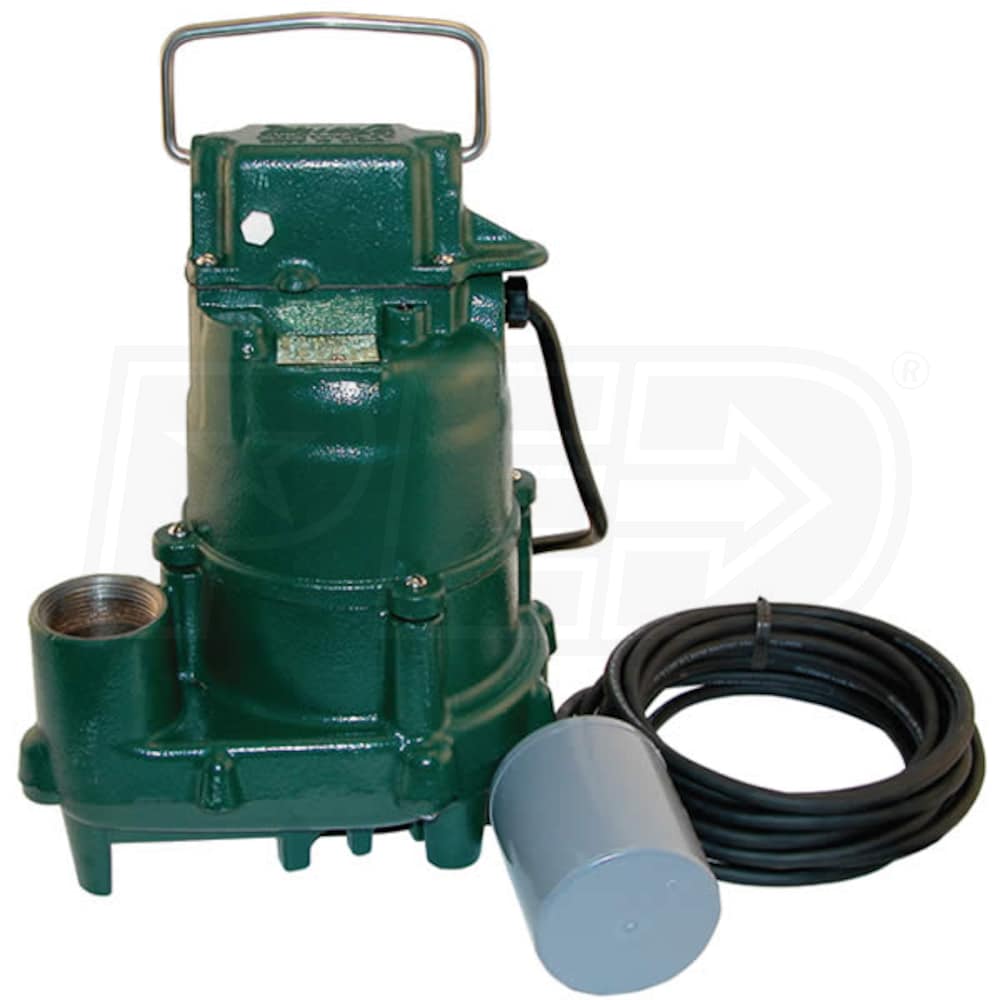

Zoeller BN152 - 4/10 HP Cast Iron High Head Effluent / Sump Pump w/ 20' Variable Level Float Switch

Zoeller BN152 - 4/10 HP Cast Iron High Head Effluent / Sump Pump w/ 20' Variable Level Float Switch
Model: 152-0005
$262.50
In-Stock
Ships Thursday, Jun 21st
Free Shipping &
Tax-Free (Except IL)
In-Stock Free ShippingNo Sales Tax* (Except IL)$262.50Buy Now
No Sales Tax* (Except IL)$309.60Visit Site
In-Stock
Ships Thursday, Jun 21st
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 4
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Effluent Sumps Pumps
GPH
4140
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Effluent
GPH
4140 Gallons
Switch Type
Piggy-Back Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Zoeller Dose-Mate Submersible Effluent Pump
  • For septic tank, low pressure pipe (LPP) & enhanced flow step systems
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • Thermally Protected, 4/10 HP Permanent Split Capacitor Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Variable Level Tether Float Switch w/ 20' Cord
  • Enough cord for reliable operation in septic systems
  • Cast Iron Construction w/ Powder Coated Epoxy Finish
  • Assures maximum protection for extended pump life
  • 1-1/2" Discharge & Engineered Thermoplastic Vortex Impeller
  • Non-clogging, can pass up to 3/4" spherical solids
  • No screen to interfere with flowing debris
  • Carbon/Ceramic Shaft Seals & Upper Sleeve / Lower Ball Bearings
  • Provides smooth, quiet operation & lower operating temperatures
  • 20' UL Listed Power Cord w/ 3-Prong Ground Plug
  • Same length as float switch cord for reliable operation
  • Includes 1-1/2" x 2" PVC Adapter Fitting
  • *Note* Max Operating 130F & 38' Shutoff Head
  • 3-Year Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Engine
Horsepower
.4 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Piggy-Back Tether Switch

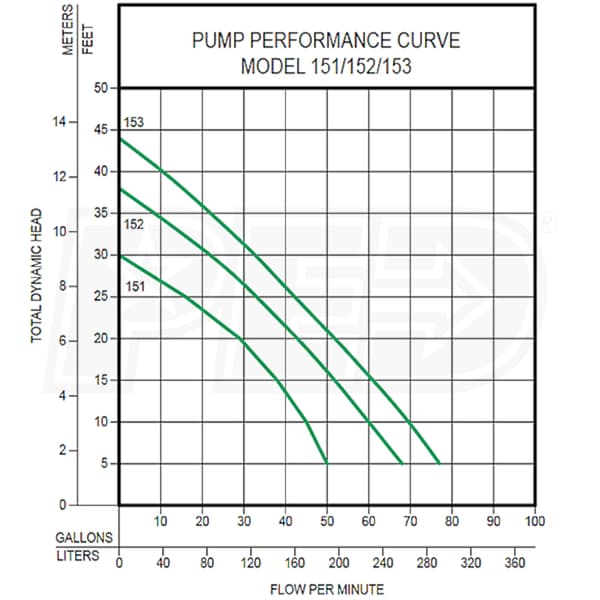

GPH @ 0 feet
4140
GPH @ 5 feet
4140
GPH @ 10 feet
3660
GPH @ 15 feet
3180
GPH @ 20 feet
2640
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Overview
Weight
38 Pounds
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
Consumer Warranty
3 Years
UPC
053514118679
Style
Effluent Sumps Pumps
GPH
4140
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Effluent
GPH
4140 Gallons
Switch Type
Piggy-Back Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Zoeller Dose-Mate Submersible Effluent Pump
  • For septic tank, low pressure pipe (LPP) & enhanced flow step systems
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • Thermally Protected, 4/10 HP Permanent Split Capacitor Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Variable Level Tether Float Switch w/ 20' Cord
  • Enough cord for reliable operation in septic systems
  • Cast Iron Construction w/ Powder Coated Epoxy Finish
  • Assures maximum protection for extended pump life
  • 1-1/2" Discharge & Engineered Thermoplastic Vortex Impeller
  • Non-clogging, can pass up to 3/4" spherical solids
  • No screen to interfere with flowing debris
  • Carbon/Ceramic Shaft Seals & Upper Sleeve / Lower Ball Bearings
  • Provides smooth, quiet operation & lower operating temperatures
  • 20' UL Listed Power Cord w/ 3-Prong Ground Plug
  • Same length as float switch cord for reliable operation
  • Includes 1-1/2" x 2" PVC Adapter Fitting
  • *Note* Max Operating 130F & 38' Shutoff Head
  • 3-Year Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Engine
Horsepower
.4 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4140
GPH @ 5 feet
4140
GPH @ 10 feet
3660
GPH @ 15 feet
3180
GPH @ 20 feet
2640
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Overview
Weight
38 Pounds
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
Consumer Warranty
3 Years
UPC
053514118679
Product Specs
+
Specifications
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Engine
Horsepower
.4 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4140
GPH @ 5 feet
4140
GPH @ 10 feet
3660
GPH @ 15 feet
3180
GPH @ 20 feet
2640
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Overview
Weight
38 Pounds
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
Consumer Warranty
3 Years
UPC
053514118679
