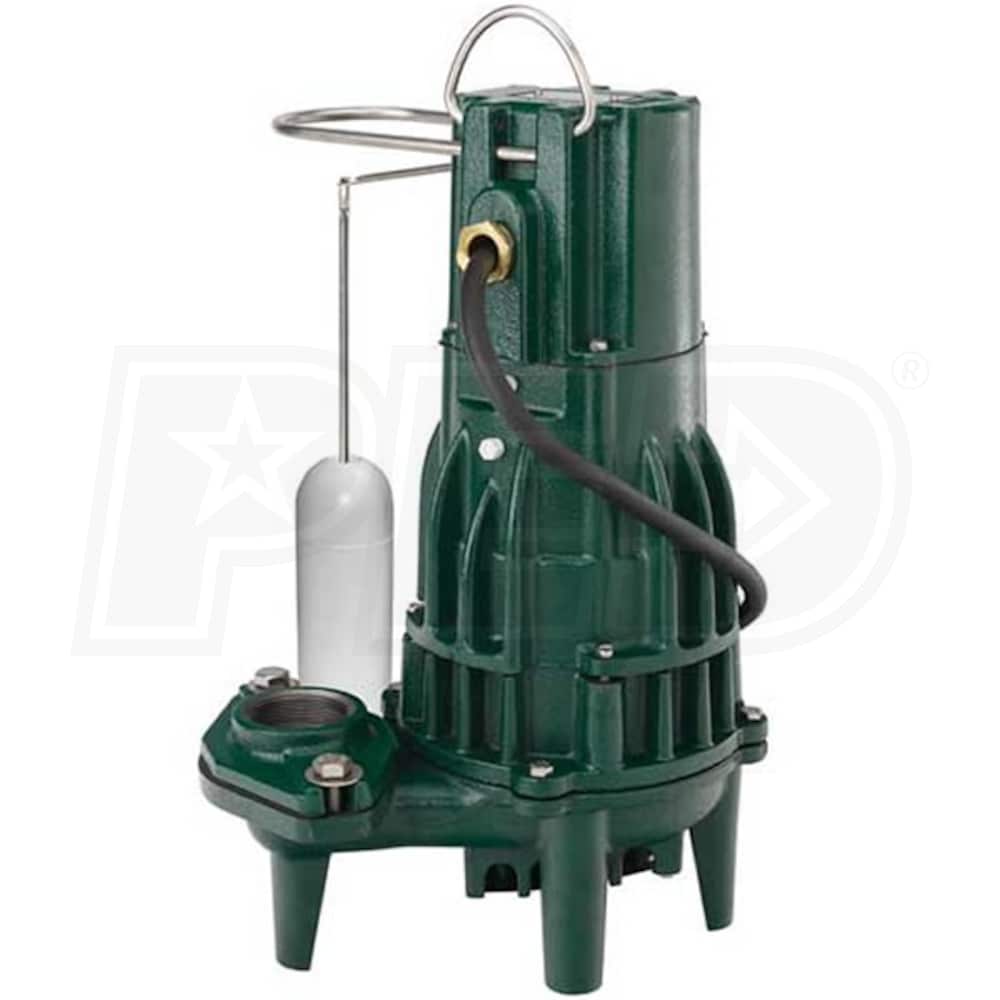

Zoeller M163 - 1/2 HP High Head Flow-Mate Sump/Effluent Pump w/ Vertical Float Switch
Model: 163-0001
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
3600
Gallons
Switch Type

Style
Effluent
GPH
3600 Gallons
Switch Type
Vertical
Features
Features
- Zoeller High Head Flow-Mate Submersible Sump / Effluent Pump
- For septic tank, low pressure pipe (LPP) & enhanced flow step systems
- Cast Iron Switch Case, Base, Motor & Pump Housing Construction
- Powder coated epoxy finish assures maximum protection for extended pump life
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- 1/2 HP Oil-Filled Permanent Split Capacitor Motor
- Thermally protected, hermetically sealed to prevent overheating
- High Head Design (66' Shut-Off Head)
- Can pump up to 2700 GPH @ 40' head
- Float-Operated, 2-Pole, Vertical Mechanical Switch
- Provides reliable automatic operation
- Non-Clogging Bronze Vortex Impeller
- Capable of passing 3/4" spherical solids
- Carbon/Ceramic Shaft Seals & Upper / Lower Ball Bearings
- Provides smooth, quiet operation & lower operating temperatures
- 20' UL Listed Power Cord w/ 3-Prong Grounded Plug
- Makes replacing your existing pump an easy task
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
- 1-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
15
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Nominal Voltage
120 Volt
Pump
Solids Handling Size
.75 inch
Total Head Lift
66 Feet
Float Type
Vertical Float
GPH @ 0 feet
3600
GPH @ 5 feet
3600
GPH @ 10 feet
3600
GPH @ 15 feet
3600
GPH @ 20 feet
3600
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
15.75
Float Off
5.25
Manual Override
No
Max Head
66 Feet
Engine
Horsepower
.5 hp
Overview
Weight
80 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
12.75 Inches
Product Width
10.34 Inches
Product Height
19.31 Inches
UPC
053514015060
Style

GPH
3600
Gallons
Switch Type

Style
Effluent
GPH
3600 Gallons
Switch Type
Vertical
Features
Features
- Zoeller High Head Flow-Mate Submersible Sump / Effluent Pump
- For septic tank, low pressure pipe (LPP) & enhanced flow step systems
- Cast Iron Switch Case, Base, Motor & Pump Housing Construction
- Powder coated epoxy finish assures maximum protection for extended pump life
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- 1/2 HP Oil-Filled Permanent Split Capacitor Motor
- Thermally protected, hermetically sealed to prevent overheating
- High Head Design (66' Shut-Off Head)
- Can pump up to 2700 GPH @ 40' head
- Float-Operated, 2-Pole, Vertical Mechanical Switch
- Provides reliable automatic operation
- Non-Clogging Bronze Vortex Impeller
- Capable of passing 3/4" spherical solids
- Carbon/Ceramic Shaft Seals & Upper / Lower Ball Bearings
- Provides smooth, quiet operation & lower operating temperatures
- 20' UL Listed Power Cord w/ 3-Prong Grounded Plug
- Makes replacing your existing pump an easy task
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
- 1-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
15
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Nominal Voltage
120 Volt
Pump
Solids Handling Size
.75 inch
Total Head Lift
66 Feet
Float Type
Vertical Float
GPH @ 0 feet
3600
GPH @ 5 feet
3600
GPH @ 10 feet
3600
GPH @ 15 feet
3600
GPH @ 20 feet
3600
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
15.75
Float Off
5.25
Manual Override
No
Max Head
66 Feet
Engine
Horsepower
.5 hp
Overview
Weight
80 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
12.75 Inches
Product Width
10.34 Inches
Product Height
19.31 Inches
UPC
053514015060
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
15
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Nominal Voltage
120 Volt
Pump
Solids Handling Size
.75 inch
Total Head Lift
66 Feet
Float Type
Vertical Float
GPH @ 0 feet
3600
GPH @ 5 feet
3600
GPH @ 10 feet
3600
GPH @ 15 feet
3600
GPH @ 20 feet
3600
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
15.75
Float Off
5.25
Manual Override
No
Max Head
66 Feet
Engine
Horsepower
.5 hp
Overview
Weight
80 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
12.75 Inches
Product Width
10.34 Inches
Product Height
19.31 Inches
UPC
053514015060
