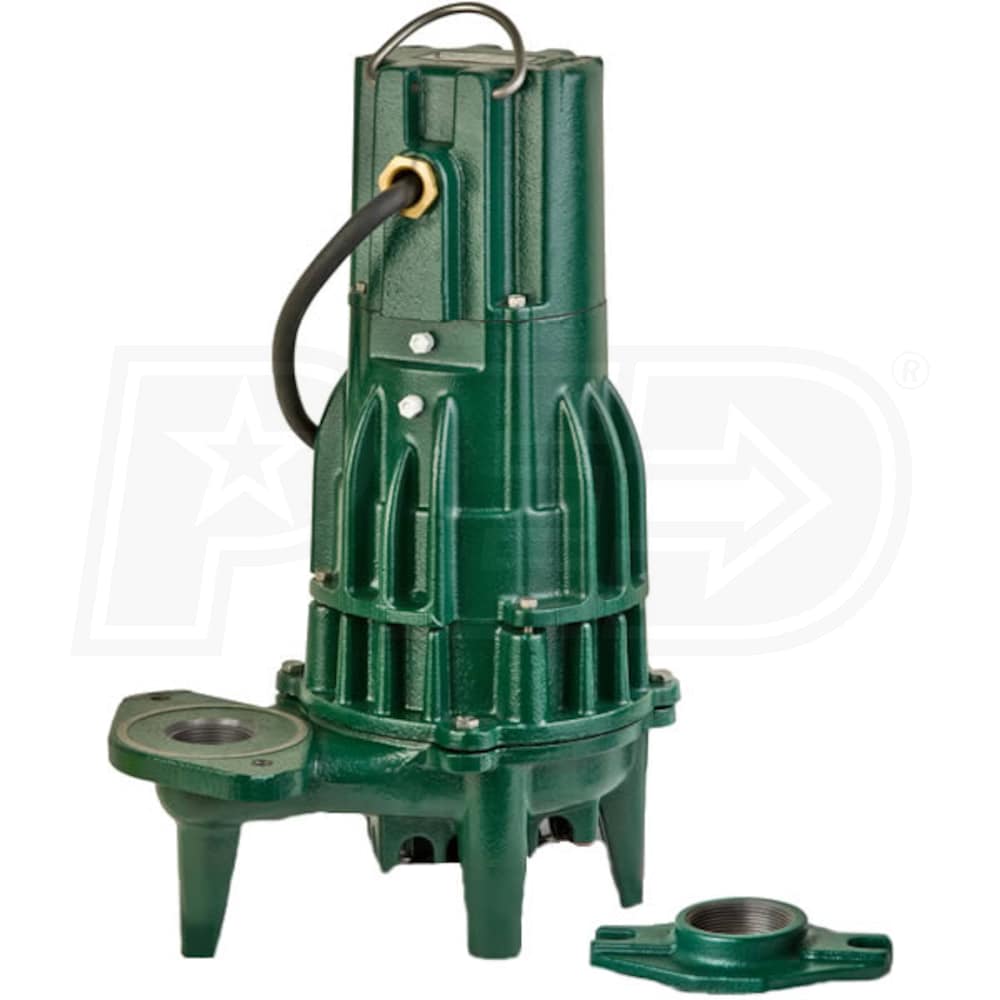

Zoeller E189 - 2 HP Cast Iron High Head Effluent Pump (Non-Automatic) (230V)
Model:
189-0004
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Effluent
GPH
8700 Gallons
Switch Type
None
- ***NON-AUTOMATIC - Requires Float Switch or Controller***
- Zoeller High Head Flow-Mate Effluent Pump (230V)
- For septic tank, low pressure pipe (LPP) & enhanced flow STEP systems
- Durable Cast Iron Construction (Base, Pump & Motor Housing
- Corrosion-resistant powder coated epoxy finish
- 2 HP Thermally Protected PSC Motor (3450 RPM)
- Oil-filled & hermetically sealed to prevent overheating w/ auto-reset
- High Head Design (110' Shut-Off Head)
- Can pump up to 960 GPH @ 100' head
- Non-Clogging Bronze Vortex Impeller
- Capable of passing 3/4" spherical solids
- Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
- Assures maximum protection for extended pump life
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- 1-1/2" NPT Discharge
- Allows for easy connection to your discharge line
- 20' Power Cord
- UL Listed 3-wire neoprene cord and 230V plug
- 1-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
189-0004
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
17.1
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Bronze
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
8700
GPH @ 5 feet
8700
GPH @ 10 feet
8400
GPH @ 20 feet
7830
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
2 hp
Overview
Weight
87 Pounds
Consumer Warranty
1 Year
Product Width
12.75 Inches
Product Height
19.3 Inches
UPC
053514016333
