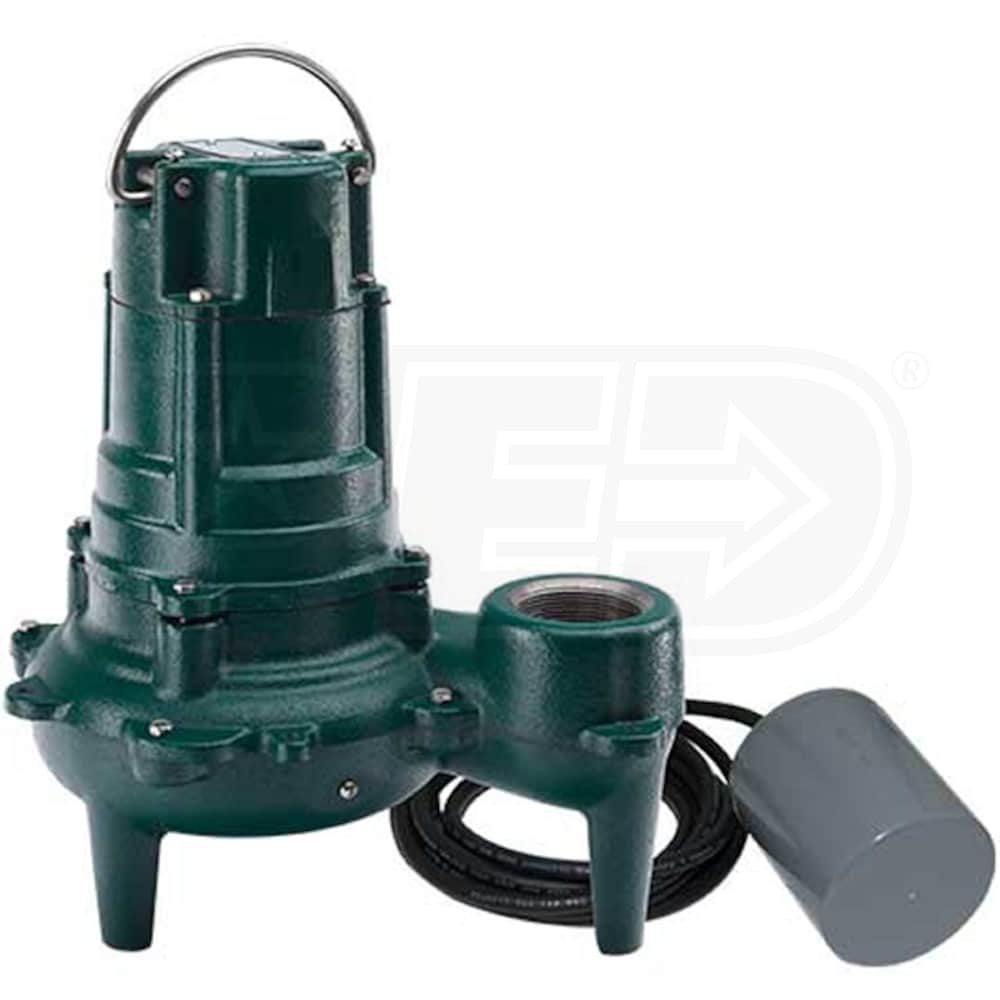

Zoeller BN267 - 1/2 HP Cast Iron Sewage Pump (2") w/ Variable Level Float Switch
Zoeller BN267 - 1/2 HP Cast Iron Sewage Pump (2") w/ Variable Level Float Switch
+
Share This Product
-
Product Description
-
10Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
7680
Gallons
Switch Type
Style
Sewage Pump
GPH
7680 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Submersible Sewage / Ejector Pump
- Ideal for average to above average sewage removal
- Variable-Level Tether Float Switch w/ Piggyback Plug
- Fully-Adjustable, ideal for larger basins & longer pump cycles
- Durable Cast Iron Design w/ Powder Coated Epoxy Finish
- Provides a corrosion resistant switch case, base, motor & pump housing
- 1/2 HP Thermally Protected Motor (1725 RPM)
- Oil-filled and hermetically sealed to prevent overheating
- Non-Clogging Vortex Plastic Impeller Design w/ Metal Inserts
- Provide added strength & Capable of passing 2" spherical solids
- Carbon & Ceramic Shaft Seal
- Assures maximum protection for extended pump life
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- Added Features:
- 15' Neoprene UL Listed power cord, square ring & gasket
- Oil-lubricated bearings for pump longevity
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
- 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
43.6
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
7680
GPH @ 5 feet
7680
GPH @ 10 feet
5340
GPH @ 15 feet
3000
GPH @ 20 feet
600
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
47.5 Pounds
Consumer Warranty
3 Years
Product Length
12.5 Inches
Product Width
12.5 Inches
Product Height
14.25 Inches
UPC
053514017835
Style
GPH
7680
Gallons
Switch Type
Style
Sewage Pump
GPH
7680 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Submersible Sewage / Ejector Pump
- Ideal for average to above average sewage removal
- Variable-Level Tether Float Switch w/ Piggyback Plug
- Fully-Adjustable, ideal for larger basins & longer pump cycles
- Durable Cast Iron Design w/ Powder Coated Epoxy Finish
- Provides a corrosion resistant switch case, base, motor & pump housing
- 1/2 HP Thermally Protected Motor (1725 RPM)
- Oil-filled and hermetically sealed to prevent overheating
- Non-Clogging Vortex Plastic Impeller Design w/ Metal Inserts
- Provide added strength & Capable of passing 2" spherical solids
- Carbon & Ceramic Shaft Seal
- Assures maximum protection for extended pump life
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- Added Features:
- 15' Neoprene UL Listed power cord, square ring & gasket
- Oil-lubricated bearings for pump longevity
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
- 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
43.6
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
7680
GPH @ 5 feet
7680
GPH @ 10 feet
5340
GPH @ 15 feet
3000
GPH @ 20 feet
600
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
47.5 Pounds
Consumer Warranty
3 Years
Product Length
12.5 Inches
Product Width
12.5 Inches
Product Height
14.25 Inches
UPC
053514017835
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
43.6
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
7680
GPH @ 5 feet
7680
GPH @ 10 feet
5340
GPH @ 15 feet
3000
GPH @ 20 feet
600
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
47.5 Pounds
Consumer Warranty
3 Years
Product Length
12.5 Inches
Product Width
12.5 Inches
Product Height
14.25 Inches
UPC
053514017835
