Zoeller M267 - 1/2 HP Cast Iron Sewage Pump (2") w/ Vertical Float & Cast Iron Impeller
Model: 267-0050
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
7680
Gallons
Switch Type

Style
Sewage Pump
GPH
7680 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Submersible Sewage / Ejector Pump
- Ideal for average to above average sewage removal
- Durable Cast Iron Design
- Switch case, base, motor & pump housing
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- Thermally Protected Motor
- Oil-filled and hermetically sealed to prevent overheating
- Cast Iron Impeller
- Capable of passing 2" spherical solids
- Carbon & Ceramic Shaft Seal
- Assures maximum protection for extended pump life
- Powder Coated Epoxy Finish
- Provides a corrosion resistant exterior
- Added Features:
- Neoprene square ring & gasket
- Completely submersible, watertight and dust tight
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
43.6
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Vertical Float

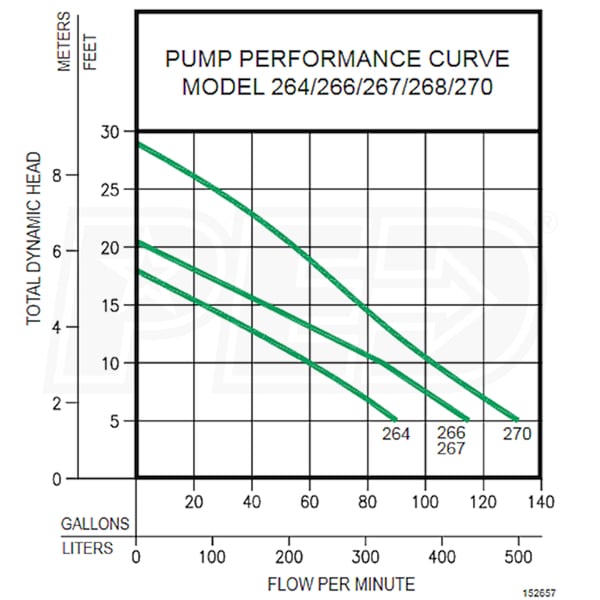

GPH @ 0 feet
7680
GPH @ 5 feet
7680
GPH @ 10 feet
5340
GPH @ 15 feet
3000
GPH @ 20 feet
600
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
12 Inches
Float Off
4 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
47.5 Pounds
Consumer Warranty
3 Years
Product Length
12.5 Inches
Product Width
12.5 Inches
Product Height
14.25 Inches
UPC
053514040536
Style

GPH
7680
Gallons
Switch Type

Style
Sewage Pump
GPH
7680 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Submersible Sewage / Ejector Pump
- Ideal for average to above average sewage removal
- Durable Cast Iron Design
- Switch case, base, motor & pump housing
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- Thermally Protected Motor
- Oil-filled and hermetically sealed to prevent overheating
- Cast Iron Impeller
- Capable of passing 2" spherical solids
- Carbon & Ceramic Shaft Seal
- Assures maximum protection for extended pump life
- Powder Coated Epoxy Finish
- Provides a corrosion resistant exterior
- Added Features:
- Neoprene square ring & gasket
- Completely submersible, watertight and dust tight
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
43.6
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
7680
GPH @ 5 feet
7680
GPH @ 10 feet
5340
GPH @ 15 feet
3000
GPH @ 20 feet
600
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
12 Inches
Float Off
4 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
47.5 Pounds
Consumer Warranty
3 Years
Product Length
12.5 Inches
Product Width
12.5 Inches
Product Height
14.25 Inches
UPC
053514040536
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
43.6
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
7680
GPH @ 5 feet
7680
GPH @ 10 feet
5340
GPH @ 15 feet
3000
GPH @ 20 feet
600
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
12 Inches
Float Off
4 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
47.5 Pounds
Consumer Warranty
3 Years
Product Length
12.5 Inches
Product Width
12.5 Inches
Product Height
14.25 Inches
UPC
053514040536
