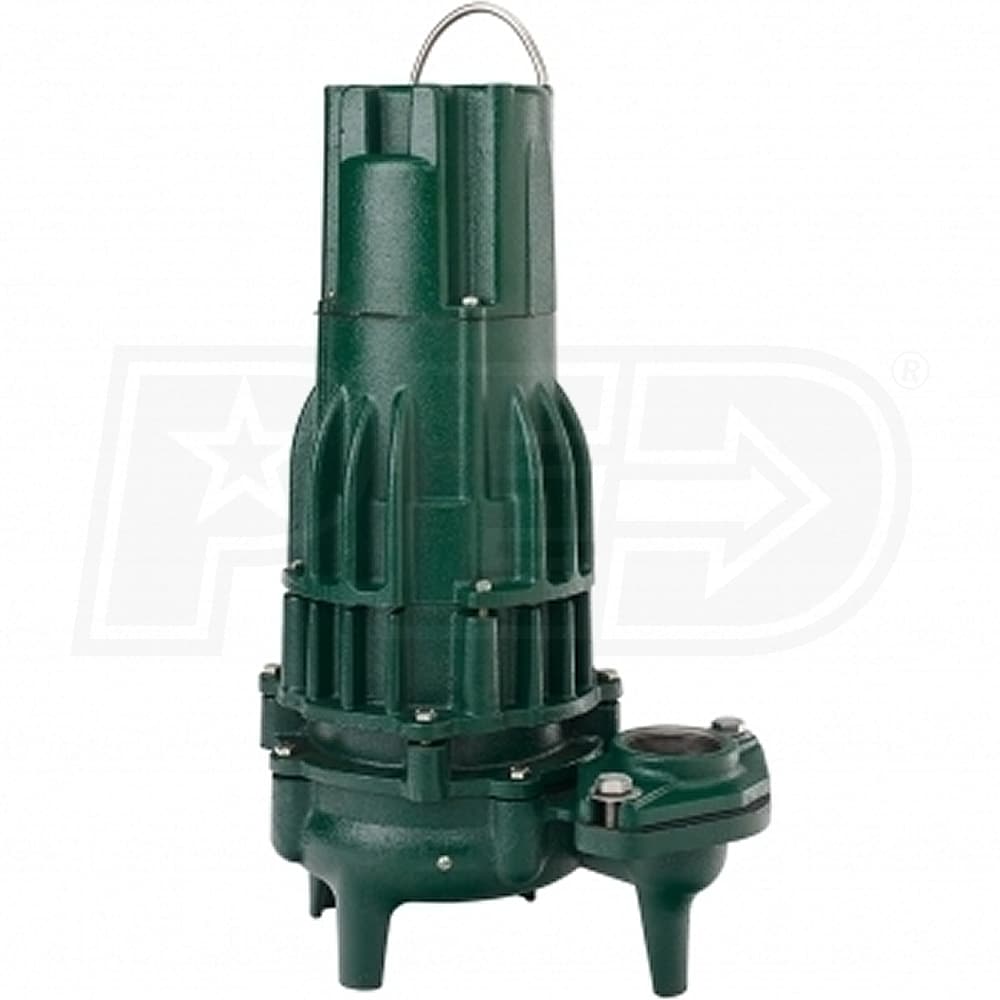

Zoeller N292 - 1/2 HP High Head Waste-Mate Cast Iron Sewage Pump (2") (Non-Automatic)
Model: 292-0002
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$729.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-3 Business Days
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States

Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 1
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
8400
Gallons
Switch Type
None
Style
Sewage Pump
GPH
8400 Gallons
Switch Type
None
Features
Features
  • ***NON-AUTOMATIC - Requires Float Switch or Controller***
  • Zoeller N292 High Head Waste-Mate Sewage Pump
  • Ideal for average to above average sewage removal in high-head applications
  • Durable Cast Iron Construction (Base, Pump & Motor Housing)
  • Corrosion-resistant powder coated epoxy finish
  • 1/2 HP Thermally Protected PSC Motor (3450 RPM)
  • Oil-filled & hermetically sealed to prevent overheating w/ auto-reset
  • High Head Design (42' Shut-Off Head)
  • Can pump up to 3000 GPH @ 30' head
  • Non-Clogging Cast Iron Vortex Impeller
  • Capable of passing 2" spherical solids
  • Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • 2" NPT Discharge
  • Allows for easy connection to your discharge line
  • 20' Power Cord
  • UL listed, 3-wire neoprene cord and plug
  • Added Features:
  • 1117 Carbon Steel Motor Shaft; Neoprene square ring & gasket
  • Industry Leading Quality Control
  • 100% Pressure-tested, submerged and run to ensure quality and reliability
  • 1-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
15
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
8400
GPH @ 5 feet
8400
GPH @ 10 feet
7260
GPH @ 15 feet
6540
GPH @ 20 feet
5400
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
15.75
Float Off
5
Manual Override
No
Max Head
42 Feet
Min Head
5 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Accessories
Float Switch
No
Overview
Weight
86 Pounds
Consumer Warranty
1 Year
Product Length
12.875 Inches
Product Height
19.3125 Inches
Style
Sewage Pumps
GPH
8400
Gallons
Switch Type
None
Style
Sewage Pump
GPH
8400 Gallons
Switch Type
None
Features
Features
  • ***NON-AUTOMATIC - Requires Float Switch or Controller***
  • Zoeller N292 High Head Waste-Mate Sewage Pump
  • Ideal for average to above average sewage removal in high-head applications
  • Durable Cast Iron Construction (Base, Pump & Motor Housing)
  • Corrosion-resistant powder coated epoxy finish
  • 1/2 HP Thermally Protected PSC Motor (3450 RPM)
  • Oil-filled & hermetically sealed to prevent overheating w/ auto-reset
  • High Head Design (42' Shut-Off Head)
  • Can pump up to 3000 GPH @ 30' head
  • Non-Clogging Cast Iron Vortex Impeller
  • Capable of passing 2" spherical solids
  • Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • 2" NPT Discharge
  • Allows for easy connection to your discharge line
  • 20' Power Cord
  • UL listed, 3-wire neoprene cord and plug
  • Added Features:
  • 1117 Carbon Steel Motor Shaft; Neoprene square ring & gasket
  • Industry Leading Quality Control
  • 100% Pressure-tested, submerged and run to ensure quality and reliability
  • 1-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
15
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
8400
GPH @ 5 feet
8400
GPH @ 10 feet
7260
GPH @ 15 feet
6540
GPH @ 20 feet
5400
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
15.75
Float Off
5
Manual Override
No
Max Head
42 Feet
Min Head
5 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Accessories
Float Switch
No
Overview
Weight
86 Pounds
Consumer Warranty
1 Year
Product Length
12.875 Inches
Product Height
19.3125 Inches
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
15
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
8400
GPH @ 5 feet
8400
GPH @ 10 feet
7260
GPH @ 15 feet
6540
GPH @ 20 feet
5400
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
15.75
Float Off
5
Manual Override
No
Max Head
42 Feet
Min Head
5 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Accessories
Float Switch
No
Overview
Weight
86 Pounds
Consumer Warranty
1 Year
Product Length
12.875 Inches
Product Height
19.3125 Inches
