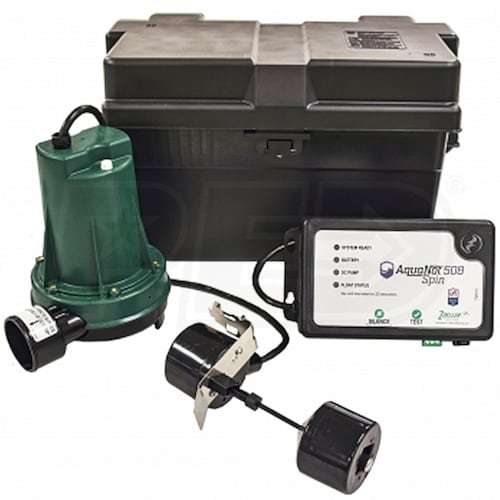

Zoeller 508 - Aquanot® Spin Battery Backup Sump Pump System (1800 GPH @ 10')
Model: 508-0005
+
Share This Product
-
Product Description
-
40Reviews
-
6Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
2340
Gallons
Switch Type

Style
Back-up
GPH
2340 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Zoeller 12V Aquanot® Spin Battery Backup Sump Pump System
- Automatically starts when your existing sump pump fails
- 12-Volt, Highly Efficient Backup Sump Pump (6' Leads)
- Non-corrosive design w/ Integrated Check Valve & Pump Legs
- Pumps 2340 gallons-per-hour @ 5’ lift (or 1800 GPH @ 10’)
- Built-In Alarms w/ Aux. Contact (Dialers & Home Security Systems)
- High Water, Low Battery & Reverse Polarity
- 10-Amp Battery Charger & Control Box w/ LED Screen
- Self-contained design w/ Battery burnout & overcharge protection
- Displays battery voltage & important system information
- LED Light Indicators & Buttons
- For system status; AC Power, Charged, Charging & Low Battery
- Plus High Water, Alarm Off button
- Vertical Float Switch
- Compact, low-voltage design for reliable operation
- Corrosion-Resistant Box Fits Group 27, 29 or 31 Batteries
- Furnished With All Required Fittings
- Heavy duty check valve adaptable to 1 ¼” or 1 ½” pipe
- BATTERY & PRIMARY PUMP SOLD SEPARATELY
- 3-Year Warranty
Specifications
Motor
Voltage
12 Volt DC
Battery Included
No
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
2340
GPH @ 5 feet
2340
GPH @ 10 feet
1800
GPH @ 15 feet
1200
GPH @ 20 feet
360
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Manual Override
No
Overview
Weight
20 Pounds
Consumer Warranty
3 Years
UPC
053514349066
Style

GPH
2340
Gallons
Switch Type

Style
Back-up
GPH
2340 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Zoeller 12V Aquanot® Spin Battery Backup Sump Pump System
- Automatically starts when your existing sump pump fails
- 12-Volt, Highly Efficient Backup Sump Pump (6' Leads)
- Non-corrosive design w/ Integrated Check Valve & Pump Legs
- Pumps 2340 gallons-per-hour @ 5’ lift (or 1800 GPH @ 10’)
- Built-In Alarms w/ Aux. Contact (Dialers & Home Security Systems)
- High Water, Low Battery & Reverse Polarity
- 10-Amp Battery Charger & Control Box w/ LED Screen
- Self-contained design w/ Battery burnout & overcharge protection
- Displays battery voltage & important system information
- LED Light Indicators & Buttons
- For system status; AC Power, Charged, Charging & Low Battery
- Plus High Water, Alarm Off button
- Vertical Float Switch
- Compact, low-voltage design for reliable operation
- Corrosion-Resistant Box Fits Group 27, 29 or 31 Batteries
- Furnished With All Required Fittings
- Heavy duty check valve adaptable to 1 ¼” or 1 ½” pipe
- BATTERY & PRIMARY PUMP SOLD SEPARATELY
- 3-Year Warranty
Specifications
Motor
Voltage
12 Volt DC
Battery Included
No
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
2340
GPH @ 5 feet
2340
GPH @ 10 feet
1800
GPH @ 15 feet
1200
GPH @ 20 feet
360
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Manual Override
No
Overview
Weight
20 Pounds
Consumer Warranty
3 Years
UPC
053514349066
Product Specs
+−
Specifications
Motor
Voltage
12 Volt DC
Battery Included
No
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
2340
GPH @ 5 feet
2340
GPH @ 10 feet
1800
GPH @ 15 feet
1200
GPH @ 20 feet
360
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Manual Override
No
Overview
Weight
20 Pounds
Consumer Warranty
3 Years
UPC
053514349066
Product Q&A
(6)
+−

Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
With the integrated check valve that comes on the 508, are any vent holes or other check valves required in my PVC pipe?
Erick
from Ohio
February 27, 2018
Answer
Since the check valve is installed at the pump discharge, there is no need for the weep hole or for any other check valves. Just make sure that you check & keep the air relief hole from the pump clear.
Was this answer helpful?
Yes

0
No

0
+−
can this system be used with AGM batteries?
Don G
from Illinois
April 21, 2016
Answer
Yes! This system will work with wet cell or maintenance free AGM batteries. I recommend deep cycle 12V rated at a minimum 100ah or 175 reserve minutes.
Please note that the Zoeller 508 Battery Backup System does include a 1 year manufacturer warranty. If you purchase the Zoeller 10-1450 - Aquanot 12V Deep Cycle 72AH AGM Battery or the Zoeller 10-0761 - Aquanot 12V Deep Cycle 83AH Wet Battery at time of purchase, that warranty is extended by 2 years to a THREE year manufacturer warranty.
If you have any other questions, please let me know.
Please note that the Zoeller 508 Battery Backup System does include a 1 year manufacturer warranty. If you purchase the Zoeller 10-1450 - Aquanot 12V Deep Cycle 72AH AGM Battery or the Zoeller 10-0761 - Aquanot 12V Deep Cycle 83AH Wet Battery at time of purchase, that warranty is extended by 2 years to a THREE year manufacturer warranty.
If you have any other questions, please let me know.
Was this answer helpful?
Yes

1
No

0
+−
will the Zoeller 508 run on AC power if necessary?
Scott B
from Illinois
January 19, 2016
Answer
No, this system only operates on 12V DC power regardless if you have AC power available.
Was this answer helpful?
Yes

1
No

0
+−
I have no experience with battery back-up systems but I'm considering this system for purchase. It does not include a battery. What type and size battery is optimally recommended for this system?
Kevin
from New York
April 08, 2015
Answer
The Zoeller 508 Battery Backup Sump Pump System battery box will accept all group size 27, 29 and 31 batteries. This includes wet cell and maintenance free batteries. The larger the battery AH (Amp Hour) or CCA (Cold Cranking Amps), the longer runtime your system will realize. That said, the system comes with a ONE year warranty. IF you purchase a Zoeller Aquanot WET CELL BATTERY or MAINTENANCE FREE BATTERY at time of purchase, that system warranty will be increased to THREE years.
If you have any other questions, please let me know.
If you have any other questions, please let me know.
Was this answer helpful?
Yes

6
No

0
+−
Does the Zoeller Aquanot 508 have to be installed as shown in the picture (integrated with the primary) or can it be installed with separate piping and check valve next to and above the primary? Thanks in advance!
Chris
from Indiana
February 07, 2015
Answer
It can be installed separately. A check valve is already integrated on the discharge of the 508 pump, so no other check valve is needed.
Was this answer helpful?
Yes

0
No

0
+−
Hello! What is the minimum amount of clearance needed to install the Zoeller 508 - Aquanot system? I have an older house with a relatively small sump basin. Thanks!
Dave
from Michigan
November 27, 2014
Answer
Minimum pit size requirements: 18" diameter X 24" deep.
For 18" x 22" applications, consult Zoeller at 800-928-7867.
For 18" x 22" applications, consult Zoeller at 800-928-7867.
Was this answer helpful?
Yes

0
No

0
Recommended Accessories
+−

Expert Recommended Accessories
Hand Picked By Our Expert Jim
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Jim O.
Manuals
+−
+
Ask Jim, Our Product Expert, A Question!
*Required Fields

+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery
Zoeller 508 - Aquanot® Spin Battery Backup Sump Pump System (1800 GPH @ 10')




×

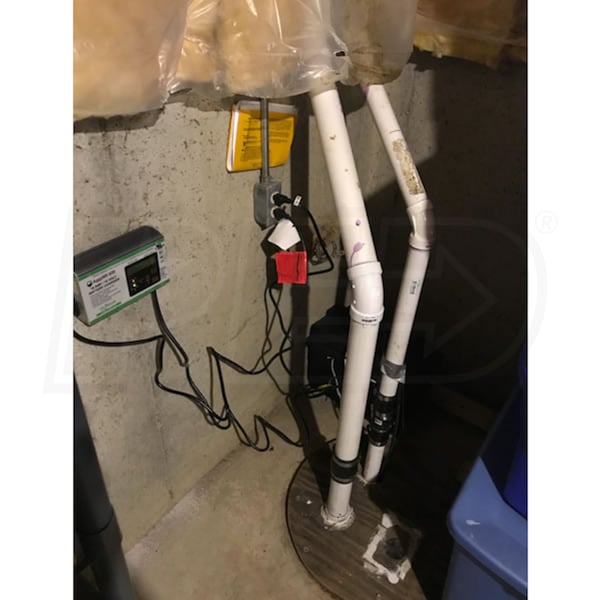

Customer Review Images
