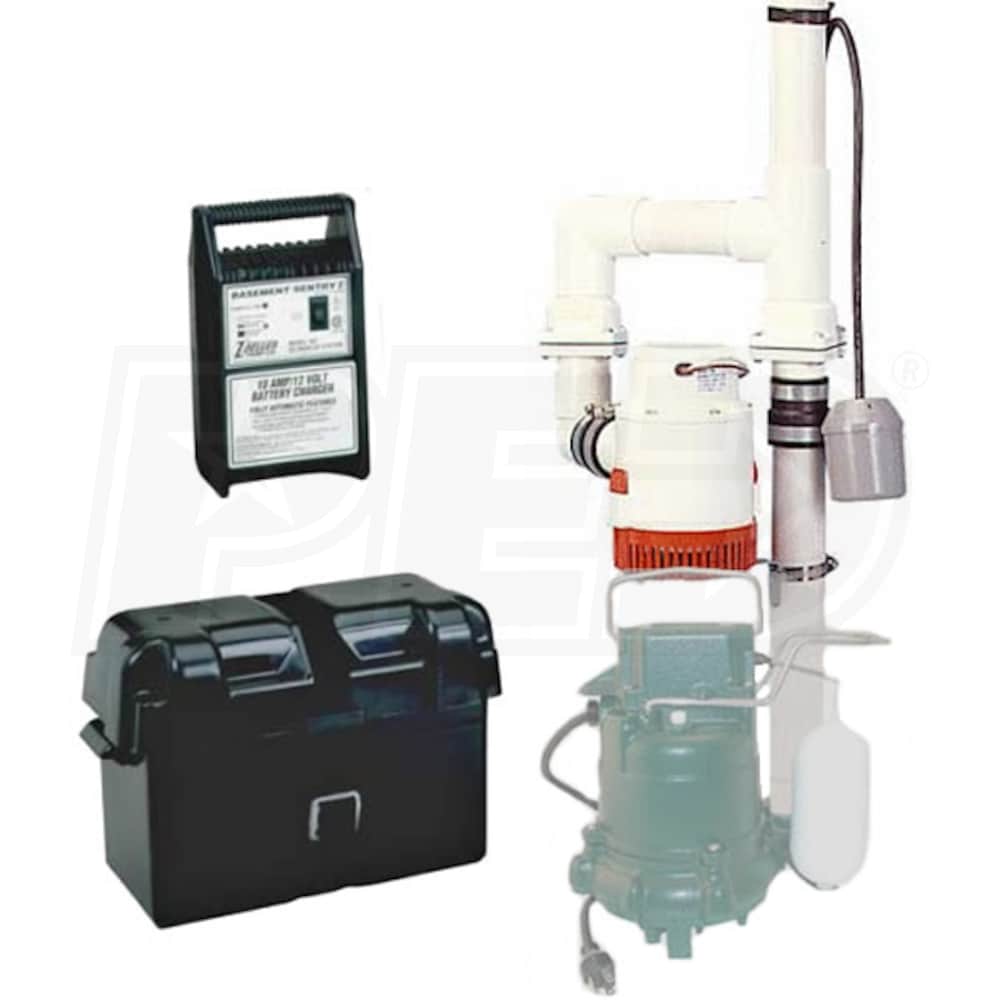

Zoeller 510 - Sentry® II Battery Backup Sump Pump System (1320 GPH @ 10')

Zoeller 510 - Sentry® II Battery Backup Sump Pump System (1320 GPH @ 10')
Model: 510
Product Discontinued
Sorry, this product is no longer available.
There Is A Newer Model Of This Item
Discontinued

(as of 02:01 CST - Details) Sales Tax Extra $874.00Visit Site
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping
Free Shipping
  • Product Description
  • 2
    Reviews
  • 5
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Back-up Sump Pumps
GPH
2040
Gallons
Switch Type
Tether Float Switch


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Protect Your Basement Or Crawl Space From Flooding
  • Automatically starts when your existing sump pump fails
  • 12-Volt, High Capacity Backup Sump Pump
  • Non-corrosive thermoplastic construction
  • Pumps 2040 gallons-per-hour @ 5’ lift (or 1320 GPH @ 10’)
  • Battery Charger & Control Box w/ Alarms
  • Self contained 10-Amp battery charger
  • Battery burn out and overcharge protection
  • LED lights for charging/battery and alarm status
  • Control Device
  • Reliable tether float switch
  • Battery Box
  • Non-corrosive polyethylene design w/ lock strap
  • Accommodates maximum battery size of 13” x 7 ½” x 9 ½”
  • Fits all group size 27 marine batteries
  • System can be expanded to accommodate multiple batteries
  • Furnished With All Required Fittings
  • Includes (2) heavy duty check valves
  • BATTERY & PRIMARY PUMP SOLD SEPARATELY
  • PLEASE NOTE - Higher Volume Pump May Be Substituted
Specifications
Motor
Voltage
12 Volt DC
Battery Included
No
Pump
Housing Material
Thermoplastic
Handles Solids
No
Float Type
Tether Switch
GPH @ 0 feet
2040
GPH @ 5 feet
2040
GPH @ 10 feet
1320
GPH @ 15 feet
660
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Overview
Consumer Warranty
1 Year
UPC
053514038908
Style
Back-up Sump Pumps
GPH
2040
Gallons
Switch Type
Tether Float Switch


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Protect Your Basement Or Crawl Space From Flooding
  • Automatically starts when your existing sump pump fails
  • 12-Volt, High Capacity Backup Sump Pump
  • Non-corrosive thermoplastic construction
  • Pumps 2040 gallons-per-hour @ 5’ lift (or 1320 GPH @ 10’)
  • Battery Charger & Control Box w/ Alarms
  • Self contained 10-Amp battery charger
  • Battery burn out and overcharge protection
  • LED lights for charging/battery and alarm status
  • Control Device
  • Reliable tether float switch
  • Battery Box
  • Non-corrosive polyethylene design w/ lock strap
  • Accommodates maximum battery size of 13” x 7 ½” x 9 ½”
  • Fits all group size 27 marine batteries
  • System can be expanded to accommodate multiple batteries
  • Furnished With All Required Fittings
  • Includes (2) heavy duty check valves
  • BATTERY & PRIMARY PUMP SOLD SEPARATELY
  • PLEASE NOTE - Higher Volume Pump May Be Substituted
Specifications
Motor
Voltage
12 Volt DC
Battery Included
No
Pump
Housing Material
Thermoplastic
Handles Solids
No
Float Type
Tether Switch
GPH @ 0 feet
2040
GPH @ 5 feet
2040
GPH @ 10 feet
1320
GPH @ 15 feet
660
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Overview
Consumer Warranty
1 Year
UPC
053514038908
Product Specs
+
Specifications
Motor
Voltage
12 Volt DC
Battery Included
No
Pump
Housing Material
Thermoplastic
Handles Solids
No
Float Type
Tether Switch
GPH @ 0 feet
2040
GPH @ 5 feet
2040
GPH @ 10 feet
1320
GPH @ 15 feet
660
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Overview
Consumer Warranty
1 Year
UPC
053514038908
Reviews
(2)
+
Zoeller 510 Reviews & Ratings
Product Q&A
(5)
+
Looking down the road, if and when the pump fails / wears out, would I be able to replace it or do I need to replace the entire unit? Hence, would I be able to use the power inverter or controller with other pumps? Thanks.
Larry
from Illinois
January 22, 2014
Read Response +
Answer
These battery backup systems, like any other system are designed to work with their specific components only. If any one of them should fail, you could contact the MANUFACTURER and they would assist you in replacing the specific component.
Hide Response -
I want to purchase an alarm system for my Zoeller 503-0005 water activated sump pump backup system. I believe this is called an automatic dialer that will call my cell phone if the system is activated. Do I also need to purchase the Zoeller alarm system? What are the model numbers and prices for what I need? Thank you.
Terry Keegan
from Wisconsin
April 16, 2011
Read Response +
Answer
You could go with the Protected Home model BD-5000 Basic Alarm Dialer and the Protected Home model WS-04 WaterSiren Plus. This would give you a 90 Decibel Alarm for when you are home and the added convenience of the phone dialer when your not.
One last option would be the Reliance Controls model THP201 Freeze/Flood/Power Failure PhoneAlert Monitoring System which is capable of calling up to 3 phone lines.
Hide Response -
Why does the charging system stay on charge all the time and not go back and forth between charge and fully charge?
Thomas Kirkpatrick
from Michigan
January 28, 2011
Read Response +
Answer
According the the owner's manual, it should alternate between charge and fully charged. I would suggest having your battery tested to make sure that it is able to hold a full charge.

For advanced troubleshooting, Zoeller can be reached @ (800) 928-7867
Hide Response -
Do I need to leave my battery backup system charging at all times?
Patrick Mcclone
from Wisconsin
January 03, 2011
Read Response +
Answer
To be completely sure your backup system is fully functional during a power outage or weather event, these systems need to stay plugged in at all times.



Hide Response -
how many hours backup does this provide in case the power goes out. we are looking for a 24 hour back up pump.
Diana
from New Jersey
January 03, 2011
Read Response +
Answer
This system does not include a battery, and that is what determines the hours of backup a system can provide. There is also the factor of how often a system is running that determines the amount of backup time.

Hide Response -
