Zoeller N803 - 1/2 HP Cast Iron Residential Grinder Pump (1-1/4") (Non-Automatic)
Model: 803-0002
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
2100
Gallons
Switch Type
None
Style
Sewage Pump
GPH
2100 Gallons
Switch Type
None
Features
Features
- ***NON-AUTOMATIC - Requires Float Switch***
- Zoeller Shark® N803 - Residential Grinder Pump
- World's first integral automatic grinder; Up to 35' Max Head
- 1/2 HP Thermally Protected Motor (115V - 3400 RPM)
- Oil-filled & hermetically sealed to prevent overheating
- Stainless Steel Tri-Slice® Cutter Technology
- 3 Independent cutting channels provide over 250,000 cuts/min
- Cast Iron Motor Housing & Pump Housing
- Provides heat dissipation for extended life cycle & durability
- Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
- Assures maximum protection for extended pump life
- 1-1/4" NPT Discharge
- Easily connects to your current discharge line
- Stainless Steel Screws, Bolts & Lifting Handle
- Designed to minimize corrosion in hard environments
- Makes this pump easy to install, service and remove
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
- 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
7
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
No Switch

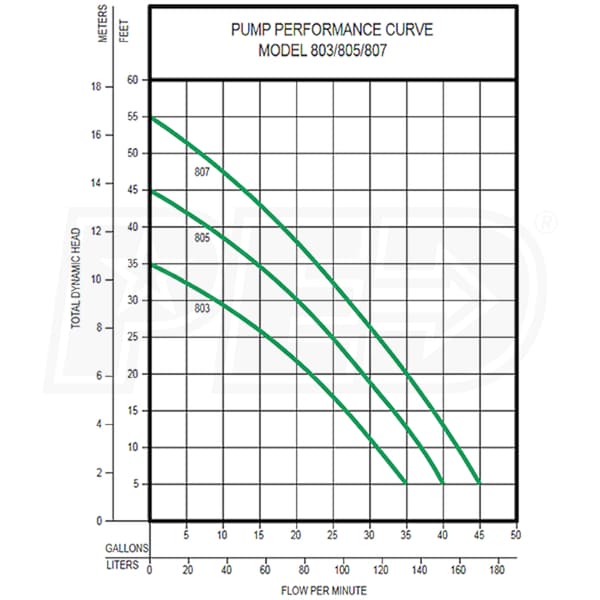

GPH @ 0 feet
2100
GPH @ 5 feet
2100
GPH @ 10 feet
1920
GPH @ 15 feet
1560
GPH @ 20 feet
1380
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Engine
Horsepower
.5 hp
Overview
Weight
65 Pounds
Consumer Warranty
3 Years
Product Length
13 Inches
Product Width
8.9 Inches
Product Height
17.25 Inches
UPC
053514365318
Style

GPH
2100
Gallons
Switch Type
None
Style
Sewage Pump
GPH
2100 Gallons
Switch Type
None
Features
Features
- ***NON-AUTOMATIC - Requires Float Switch***
- Zoeller Shark® N803 - Residential Grinder Pump
- World's first integral automatic grinder; Up to 35' Max Head
- 1/2 HP Thermally Protected Motor (115V - 3400 RPM)
- Oil-filled & hermetically sealed to prevent overheating
- Stainless Steel Tri-Slice® Cutter Technology
- 3 Independent cutting channels provide over 250,000 cuts/min
- Cast Iron Motor Housing & Pump Housing
- Provides heat dissipation for extended life cycle & durability
- Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
- Assures maximum protection for extended pump life
- 1-1/4" NPT Discharge
- Easily connects to your current discharge line
- Stainless Steel Screws, Bolts & Lifting Handle
- Designed to minimize corrosion in hard environments
- Makes this pump easy to install, service and remove
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
- 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
7
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
No Switch
GPH @ 0 feet
2100
GPH @ 5 feet
2100
GPH @ 10 feet
1920
GPH @ 15 feet
1560
GPH @ 20 feet
1380
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Engine
Horsepower
.5 hp
Overview
Weight
65 Pounds
Consumer Warranty
3 Years
Product Length
13 Inches
Product Width
8.9 Inches
Product Height
17.25 Inches
UPC
053514365318
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
7
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
No Switch
GPH @ 0 feet
2100
GPH @ 5 feet
2100
GPH @ 10 feet
1920
GPH @ 15 feet
1560
GPH @ 20 feet
1380
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Engine
Horsepower
.5 hp
Overview
Weight
65 Pounds
Consumer Warranty
3 Years
Product Length
13 Inches
Product Width
8.9 Inches
Product Height
17.25 Inches
UPC
053514365318
