Zoeller N805 - 3/4 HP Cast Iron Residential Grinder Pump (1-1/4") (Non-Automatic) (230V)

Zoeller N805 - 3/4 HP Cast Iron Residential Grinder Pump (1-1/4") (Non-Automatic) (230V)
Our Price
Compare Prices
Shipping Info
Model: 805-0004
(Based on expert analysis, manufacturer ratings and customer reviews)
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
$969.00

Ships in 2-5 Business Days
Shipping Crate Icon
Free Shipping
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
2400
Gallons
Switch Type
None
Style
Sewage Pump
GPH
2400 Gallons
Switch Type
None
Features
Features
  • ***NON-AUTOMATIC - Requires Float Switch***
  • Zoeller Shark® N805 - Residential Grinder Pump (230V)
  • World's first integral automatic grinder; Up to 45' Max Head
  • 3/4 HP Thermally Protected Motor (230V)
  • Oil-filled & hermetically sealed to prevent overheating
  • Stainless Steel Tri-Slice® Cutter Technology
  • 3 Independent cutting channels provide over 250,000 cuts/min
  • Cast Iron Motor Housing & Pump Housing
  • Provides heat dissipation for extended life cycle & durability
  • Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • 1-1/4" NPT Discharge
  • Easily connects to your current discharge line
  • Stainless Steel Screws, Bolts & Lifting Handle
  • Designed to minimize corrosion in hard environments
  • Makes this pump easy to install, service and remove
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
No Switch

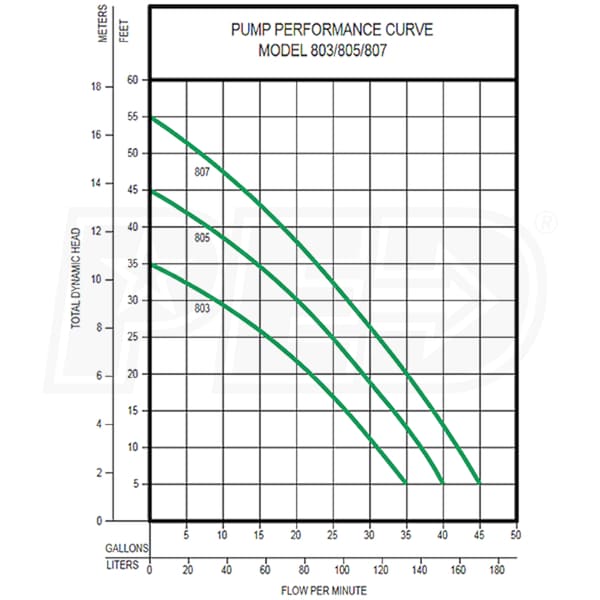

GPH @ 0 feet
2400
GPH @ 5 feet
2400
GPH @ 10 feet
2220
GPH @ 15 feet
1980
GPH @ 20 feet
1740
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Engine
Horsepower
.75 hp
Overview
Weight
65 Pounds
Consumer Warranty
3 Years
Product Length
13 Inches
Product Width
8.9 Inches
Product Height
17.25 Inches
UPC
053514365400
Style
Sewage Pumps
GPH
2400
Gallons
Switch Type
None
Style
Sewage Pump
GPH
2400 Gallons
Switch Type
None
Features
Features
  • ***NON-AUTOMATIC - Requires Float Switch***
  • Zoeller Shark® N805 - Residential Grinder Pump (230V)
  • World's first integral automatic grinder; Up to 45' Max Head
  • 3/4 HP Thermally Protected Motor (230V)
  • Oil-filled & hermetically sealed to prevent overheating
  • Stainless Steel Tri-Slice® Cutter Technology
  • 3 Independent cutting channels provide over 250,000 cuts/min
  • Cast Iron Motor Housing & Pump Housing
  • Provides heat dissipation for extended life cycle & durability
  • Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • 1-1/4" NPT Discharge
  • Easily connects to your current discharge line
  • Stainless Steel Screws, Bolts & Lifting Handle
  • Designed to minimize corrosion in hard environments
  • Makes this pump easy to install, service and remove
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
No Switch
GPH @ 0 feet
2400
GPH @ 5 feet
2400
GPH @ 10 feet
2220
GPH @ 15 feet
1980
GPH @ 20 feet
1740
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Engine
Horsepower
.75 hp
Overview
Weight
65 Pounds
Consumer Warranty
3 Years
Product Length
13 Inches
Product Width
8.9 Inches
Product Height
17.25 Inches
UPC
053514365400
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
No Switch
GPH @ 0 feet
2400
GPH @ 5 feet
2400
GPH @ 10 feet
2220
GPH @ 15 feet
1980
GPH @ 20 feet
1740
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Engine
Horsepower
.75 hp
Overview
Weight
65 Pounds
Consumer Warranty
3 Years
Product Length
13 Inches
Product Width
8.9 Inches
Product Height
17.25 Inches
UPC
053514365400
