Zoeller M807 - 1 HP Cast Iron Residential Grinder Pump (1-1/4") w/ Vertical Float
Model: 807-0001
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
Ask a Question
$966.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Sewage Pumps
GPH
2700
Gallons
Switch Type
Vertical Float Switch
Style
Sewage Pump
GPH
2700 Gallons
Switch Type
Vertical
Features
Features
  • Zoeller Shark® M807 - Automatic Residential Grinder Pump
  • World's first integral automatic grinder; Up to 55' Max Head
  • 1 HP Thermally Protected Motor (115V - 3400 RPM)
  • Oil-filled & hermetically sealed to prevent overheating
  • Stainless Steel Tri-Slice® Cutter Technology
  • 3 Independent cutting channels provide over 250,000 cuts/min
  • Cast Iron Motor Housing & Pump Housing
  • Provides heat dissipation for extended life cycle & durability
  • Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • Vertical Float Switch
  • Solid and buoyant polypropylene design
  • 1-1/4" NPT Discharge
  • Easily connects to your current discharge line
  • Stainless Steel Screws, Bolts & Lifting Handle
  • Designed to minimize corrosion in hard environments
  • Makes this pump easy to install, service and remove
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 1-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
11
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
Vertical Float

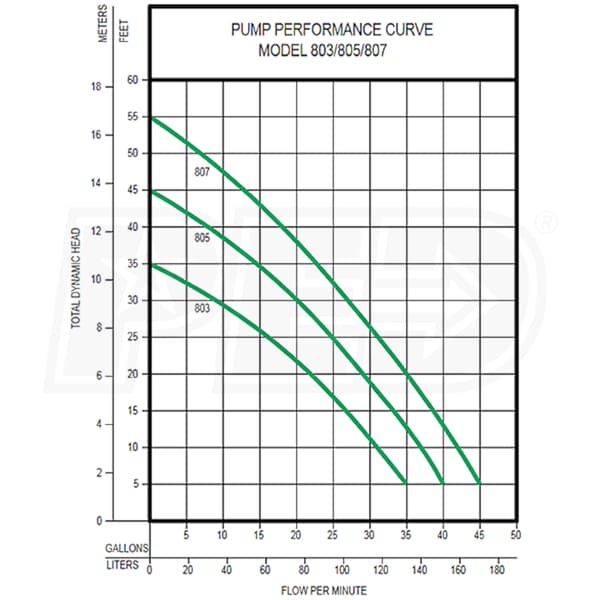

GPH @ 0 feet
2700
GPH @ 5 feet
2700
GPH @ 10 feet
2520
GPH @ 15 feet
2280
GPH @ 20 feet
2100
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Float On
13 Inches
Float Off
5.75 Inches
Engine
Horsepower
1 hp
Overview
Weight
65 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Length
13 Inches
Product Width
8.9 Inches
Product Height
17.25 Inches
UPC
053514361310
Style
Sewage Pumps
GPH
2700
Gallons
Switch Type
Vertical Float Switch
Style
Sewage Pump
GPH
2700 Gallons
Switch Type
Vertical
Features
Features
  • Zoeller Shark® M807 - Automatic Residential Grinder Pump
  • World's first integral automatic grinder; Up to 55' Max Head
  • 1 HP Thermally Protected Motor (115V - 3400 RPM)
  • Oil-filled & hermetically sealed to prevent overheating
  • Stainless Steel Tri-Slice® Cutter Technology
  • 3 Independent cutting channels provide over 250,000 cuts/min
  • Cast Iron Motor Housing & Pump Housing
  • Provides heat dissipation for extended life cycle & durability
  • Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • Vertical Float Switch
  • Solid and buoyant polypropylene design
  • 1-1/4" NPT Discharge
  • Easily connects to your current discharge line
  • Stainless Steel Screws, Bolts & Lifting Handle
  • Designed to minimize corrosion in hard environments
  • Makes this pump easy to install, service and remove
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 1-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
11
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
Vertical Float
GPH @ 0 feet
2700
GPH @ 5 feet
2700
GPH @ 10 feet
2520
GPH @ 15 feet
2280
GPH @ 20 feet
2100
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Float On
13 Inches
Float Off
5.75 Inches
Engine
Horsepower
1 hp
Overview
Weight
65 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Length
13 Inches
Product Width
8.9 Inches
Product Height
17.25 Inches
UPC
053514361310
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
11
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
Vertical Float
GPH @ 0 feet
2700
GPH @ 5 feet
2700
GPH @ 10 feet
2520
GPH @ 15 feet
2280
GPH @ 20 feet
2100
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Float On
13 Inches
Float Off
5.75 Inches
Engine
Horsepower
1 hp
Overview
Weight
65 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Length
13 Inches
Product Width
8.9 Inches
Product Height
17.25 Inches
UPC
053514361310
