Zoeller 912-0020
Zoeller 912-0020
Hover to zoom
1 Of 5
Zoeller 912-0020 - 1/2 HP Cast Iron Preassembled Sewage Pump System (LA Code)
Model: 912-0020
4.4 out of 54.4 out of 54.4 out of 54.4 out of 54.4 out of 5
Number of Reviews(5)
Write a Review
$591.60
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Tuesday, Dec 1st
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 5
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
7680
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Sewage Pump
GPH
7680 Gallons
Switch Type
Piggy-Back Tether
Features
Features

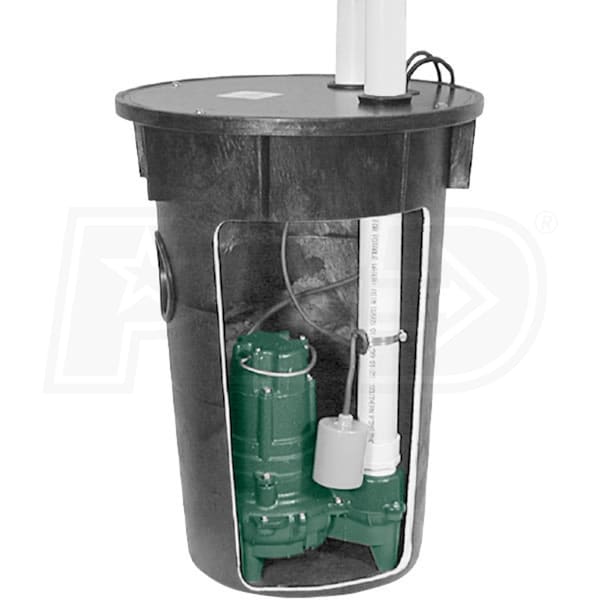

  • ***Please Note - Image Is Only Example of System***
  • Actual Basin Is Fiberglass
  • Zoeller Job Ready Simplex Sewage Package System (LA Code)
  • Easy Installation, Saves Labor & Reduces Installation Errors
  • Waste-Mate BN266 Sewage/Effluent Pump
  • A great pump that provides year of reliable operation
  • Variable-Level Tether Float Switch w/ Piggyback Plug
  • Fully-Adjustable, ideal for larger basins & longer pump cycles
  • Durable Cast Iron Design w/ Powder Coated Epoxy Finish
  • Engineered plastic pump bases prevents corrosion on pump legs
  • Thermally Protected, 1/2 HP Permanent Split Capacitor Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Non-Clogging Vortex Plastic Impeller Design w/ Metal Inserts
  • Provide added strength & Capable of passing 2" spherical solids
  • High-Quality Components
  • Carbon/Ceramic Shaft Seal & Stainless steel screws, guard, handle, arm & seal assembly
  • 18" x 30" Fiberglass Sewage Basin & Cover (10' Stack, LA Code)***
  • Withstands water pressure from a 10' vertical pipe (stack) w/o leaking
  • 4" Cast Iron Hub (LA Code) for easy connection to cast iron drain pipes
  • 30" (2") PVC Discharge Pipe for easy connection to existing plumbing
  • *Note* Check Valves & Vent Pipe Are Not Included
  • 3-Year Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
7680
GPH @ 5 feet
7680
GPH @ 10 feet
5340
GPH @ 15 feet
3000
GPH @ 20 feet
600
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
79 Pounds
Consumer Warranty
3 Years
UPC
053514026035
Style
Sewage Pumps
GPH
7680
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Sewage Pump
GPH
7680 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • ***Please Note - Image Is Only Example of System***
  • Actual Basin Is Fiberglass
  • Zoeller Job Ready Simplex Sewage Package System (LA Code)
  • Easy Installation, Saves Labor & Reduces Installation Errors
  • Waste-Mate BN266 Sewage/Effluent Pump
  • A great pump that provides year of reliable operation
  • Variable-Level Tether Float Switch w/ Piggyback Plug
  • Fully-Adjustable, ideal for larger basins & longer pump cycles
  • Durable Cast Iron Design w/ Powder Coated Epoxy Finish
  • Engineered plastic pump bases prevents corrosion on pump legs
  • Thermally Protected, 1/2 HP Permanent Split Capacitor Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Non-Clogging Vortex Plastic Impeller Design w/ Metal Inserts
  • Provide added strength & Capable of passing 2" spherical solids
  • High-Quality Components
  • Carbon/Ceramic Shaft Seal & Stainless steel screws, guard, handle, arm & seal assembly
  • 18" x 30" Fiberglass Sewage Basin & Cover (10' Stack, LA Code)***
  • Withstands water pressure from a 10' vertical pipe (stack) w/o leaking
  • 4" Cast Iron Hub (LA Code) for easy connection to cast iron drain pipes
  • 30" (2") PVC Discharge Pipe for easy connection to existing plumbing
  • *Note* Check Valves & Vent Pipe Are Not Included
  • 3-Year Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
7680
GPH @ 5 feet
7680
GPH @ 10 feet
5340
GPH @ 15 feet
3000
GPH @ 20 feet
600
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
79 Pounds
Consumer Warranty
3 Years
UPC
053514026035
Product Specs
+
Specifications
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
7680
GPH @ 5 feet
7680
GPH @ 10 feet
5340
GPH @ 15 feet
3000
GPH @ 20 feet
600
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
79 Pounds
Consumer Warranty
3 Years
UPC
053514026035
