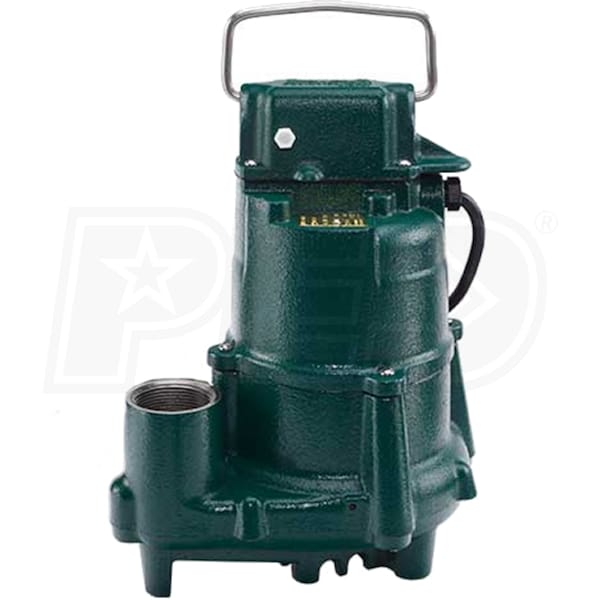

Zoeller E98-0004 - 1/2 HP Cast Iron Submersible Sump / Effluent Pump (Non-Automatic) (230V)

Zoeller E98-0004 - 1/2 HP Cast Iron Submersible Sump / Effluent Pump (Non-Automatic) (230V)
Our Price
Compare Prices
Shipping Info
Model: 98-0004
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
$282.00

Ships in 2-5 Business Days
Shipping Crate Icon
Free Shipping
Free Shipping$282.00Buy Now
$282.00Visit Site
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Effluent Sumps Pumps
GPH
4320
Gallons
Switch Type
None
Style
Effluent
GPH
4320 Gallons
Switch Type
None


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 230V ***NON-AUTOMATIC - Requires Float Switch***
  • Submersible Cast Iron Sump / Effluent Pump
  • Offers years of reliable, trouble-free operation
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • 1/2 HP Thermally Protected, Permanent Split Capacitor Motor (230V
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Powder Coated Epoxy Finish
  • Provides a corrosion resistant exterior
  • Clog-Resistant Design
  • No screen to interfere with flowing debris
  • Capable of passing 1/2" diameter solids
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
230 Volt
Running Amps
4.7
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
4320
GPH @ 5 feet
4320
GPH @ 10 feet
3660
GPH @ 15 feet
2700
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
38 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514029494
Style
Effluent Sumps Pumps
GPH
4320
Gallons
Switch Type
None
Style
Effluent
GPH
4320 Gallons
Switch Type
None


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 230V ***NON-AUTOMATIC - Requires Float Switch***
  • Submersible Cast Iron Sump / Effluent Pump
  • Offers years of reliable, trouble-free operation
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • 1/2 HP Thermally Protected, Permanent Split Capacitor Motor (230V
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Powder Coated Epoxy Finish
  • Provides a corrosion resistant exterior
  • Clog-Resistant Design
  • No screen to interfere with flowing debris
  • Capable of passing 1/2" diameter solids
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
230 Volt
Running Amps
4.7
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
4320
GPH @ 5 feet
4320
GPH @ 10 feet
3660
GPH @ 15 feet
2700
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
38 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514029494
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
230 Volt
Running Amps
4.7
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
4320
GPH @ 5 feet
4320
GPH @ 10 feet
3660
GPH @ 15 feet
2700
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
38 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514029494
