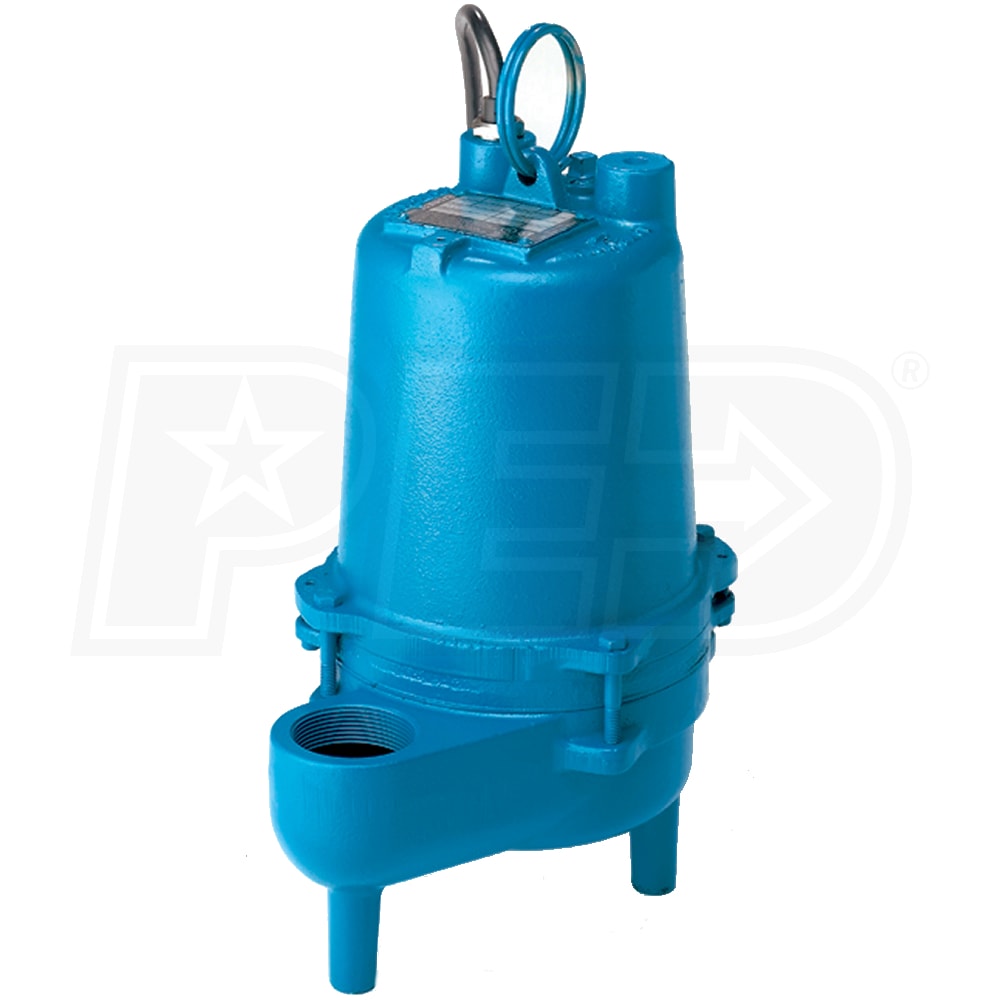

Barnes SE421 - 4/10 HP Cast Iron Sewage Pump (Non-Automatic) (230V)
Model: 096750
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
Ask a Question
$530.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 3-5 Days
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Sewage Pumps
GPH
7200
Gallons
Switch Type
None
Style
Sewage Pump
GPH
7200 Gallons
Switch Type
None
Features
Features
  • Barnes SE411 - 4/10 HP Cast Iron Sewage Pump (Non-Automatic) (230V)
  • Designed for sewage removal in residential and light commercial applications
  • Requires float switch or controller for automatic operation
  • Enamel Coated Cast Iron Construction
  • Helps prevent corrosion in harsh sewage applications
  • 4/10 HP Permanent Split-Capacitor (PSC) Motor (230V)
  • Oil-filled, thermally protected, energy-efficient design, only draws 6.2 FLA
  • 2-Vane, Cast Iron Vortex Impeller
  • Dynamically balanced design, can pass spherical solids up to 2"
  • Carbon/Ceramic/Buna-N Mechanical Seal
  • Assures maximum protection against pump failure
  • 416 Stainless Steel Shaft
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Helps reduce vibration and provides quieter operation
  • 2" NPT (Female) Discharge
  • Will replace most pumps without any plumbing changes
  • 15-Foot, Quick-Disconnect Power Cord w/ Plug
  • Pressure grommet for sealing and strain relief
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
6.2
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
19
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
No Switch

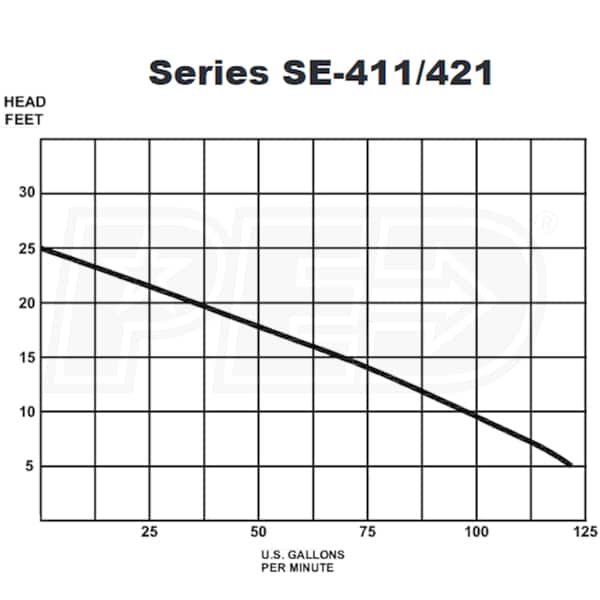

GPH @ 0 feet
7200
GPH @ 5 feet
7200
GPH @ 10 feet
6000
GPH @ 15 feet
4125
GPH @ 20 feet
2100
Discharge Port Size
2 Inch
Built-in check Valve
No
Submersible
Yes
Engine
Horsepower
.4 hp
Overview
Weight
53 Pounds
Consumer Warranty
2 Years
Product Length
10.75 Inches
Product Width
7.75 Inches
Product Height
16.76 Inches
Style
Sewage Pumps
GPH
7200
Gallons
Switch Type
None
Style
Sewage Pump
GPH
7200 Gallons
Switch Type
None
Features
Features
  • Barnes SE411 - 4/10 HP Cast Iron Sewage Pump (Non-Automatic) (230V)
  • Designed for sewage removal in residential and light commercial applications
  • Requires float switch or controller for automatic operation
  • Enamel Coated Cast Iron Construction
  • Helps prevent corrosion in harsh sewage applications
  • 4/10 HP Permanent Split-Capacitor (PSC) Motor (230V)
  • Oil-filled, thermally protected, energy-efficient design, only draws 6.2 FLA
  • 2-Vane, Cast Iron Vortex Impeller
  • Dynamically balanced design, can pass spherical solids up to 2"
  • Carbon/Ceramic/Buna-N Mechanical Seal
  • Assures maximum protection against pump failure
  • 416 Stainless Steel Shaft
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Helps reduce vibration and provides quieter operation
  • 2" NPT (Female) Discharge
  • Will replace most pumps without any plumbing changes
  • 15-Foot, Quick-Disconnect Power Cord w/ Plug
  • Pressure grommet for sealing and strain relief
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
6.2
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
19
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
No Switch
GPH @ 0 feet
7200
GPH @ 5 feet
7200
GPH @ 10 feet
6000
GPH @ 15 feet
4125
GPH @ 20 feet
2100
Discharge Port Size
2 Inch
Built-in check Valve
No
Submersible
Yes
Engine
Horsepower
.4 hp
Overview
Weight
53 Pounds
Consumer Warranty
2 Years
Product Length
10.75 Inches
Product Width
7.75 Inches
Product Height
16.76 Inches
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
6.2
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
19
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
No Switch
GPH @ 0 feet
7200
GPH @ 5 feet
7200
GPH @ 10 feet
6000
GPH @ 15 feet
4125
GPH @ 20 feet
2100
Discharge Port Size
2 Inch
Built-in check Valve
No
Submersible
Yes
Engine
Horsepower
.4 hp
Overview
Weight
53 Pounds
Consumer Warranty
2 Years
Product Length
10.75 Inches
Product Width
7.75 Inches
Product Height
16.76 Inches
