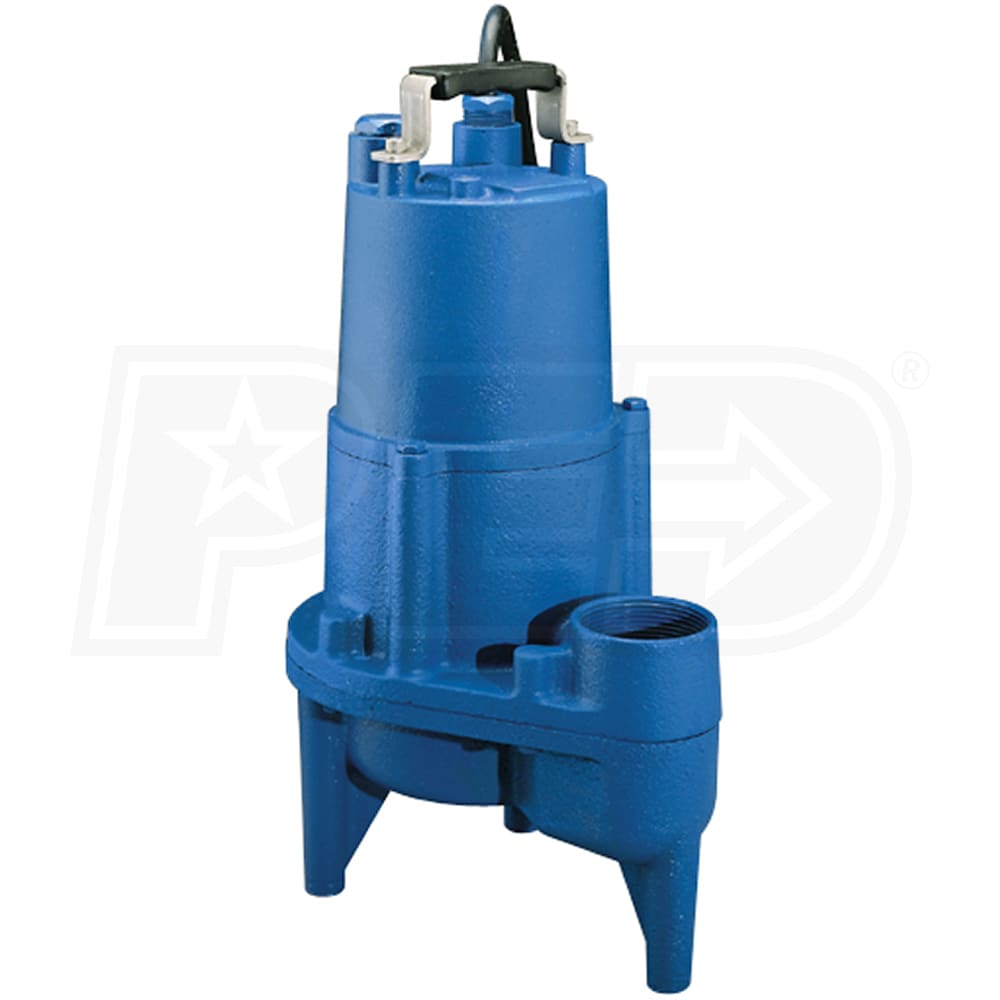

Barnes SEV412A - 1/2 HP Cast Iron Sewage Pump w/ Pipe-Mount Tether Float (Scratch & Dent)

Barnes SEV412A - 1/2 HP Cast Iron Sewage Pump w/ Pipe-Mount Tether Float (Scratch & Dent)
Model: 101293-SD
(Based on expert analysis, manufacturer ratings and customer reviews)
$396.00
$376.00
Only 1 In-Stock
Ships Tuesday, Sep 25th
Free Shipping
Scratch and Dent - Learn More
Only 1 In-Stock
Ships Tuesday, Sep 25th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
4260
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Sewage Pump
GPH
4260 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • *Scratch & Dent Model*
  • Scratches on the exterior of the pump
  • Shipped to another customer and returned to us, cosmetic only, will not affect operation
  • Barnes SEV412A - 1/2 HP Cast Iron Sewage Pump w/ Piggyback Tether Float
  • Designed for sewage removal in residential and light commercial applications
  • Enamel Coated Cast Iron Construction
  • Helps prevent corrosion in harsh sewage applications
  • 1/2 HP Permanent Split-Capacitor (PSC) Motor
  • Oil-filled, thermally protected, energy-efficient design, only draws 10.5 FLA
  • Piggyback Tether Float Switch (Not Shown)
  • Pipe-mounted design, allows for easier servicing
  • Multi-Vane, Cast Iron Vortex Impeller
  • Dynamically balanced design, can pass spherical solids up to 2"
  • Carbon/Ceramic/Buna-N Mechanical Seal
  • Assures maximum protection against pump failure
  • 416 Stainless Steel Shaft
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Helps reduce vibration and provides quieter operation
  • 2" NPT (Female) Discharge
  • Will replace most pumps without any plumbing changes
  • 20-Foot, Quick-Disconnect Power Cord w/ Plug
  • Pressure grommet for sealing and strain relief
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
18.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
Piggy-Back Tether Switch

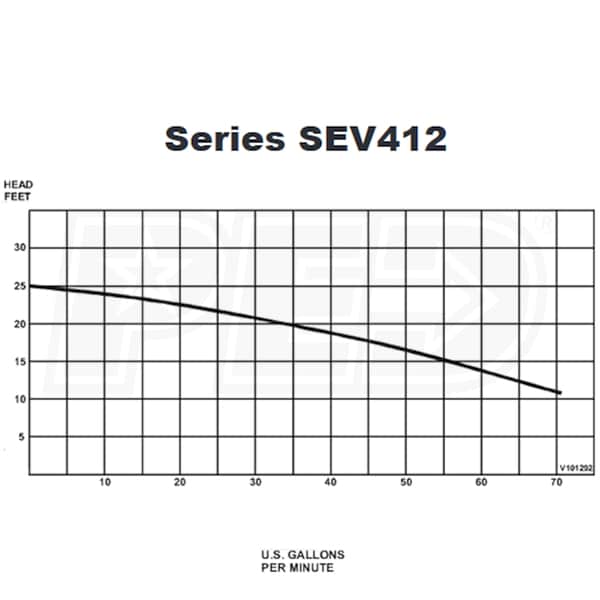

GPH @ 0 feet
4260
GPH @ 5 feet
4260
GPH @ 10 feet
4260
GPH @ 15 feet
3300
GPH @ 20 feet
2100
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
45 Pounds
Product Length
9.63 Inches
Product Width
7 Inches
Product Height
15.69 Inches
Consumer Warranty
2 Years
Style
Sewage Pumps
GPH
4260
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Sewage Pump
GPH
4260 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • *Scratch & Dent Model*
  • Scratches on the exterior of the pump
  • Shipped to another customer and returned to us, cosmetic only, will not affect operation
  • Barnes SEV412A - 1/2 HP Cast Iron Sewage Pump w/ Piggyback Tether Float
  • Designed for sewage removal in residential and light commercial applications
  • Enamel Coated Cast Iron Construction
  • Helps prevent corrosion in harsh sewage applications
  • 1/2 HP Permanent Split-Capacitor (PSC) Motor
  • Oil-filled, thermally protected, energy-efficient design, only draws 10.5 FLA
  • Piggyback Tether Float Switch (Not Shown)
  • Pipe-mounted design, allows for easier servicing
  • Multi-Vane, Cast Iron Vortex Impeller
  • Dynamically balanced design, can pass spherical solids up to 2"
  • Carbon/Ceramic/Buna-N Mechanical Seal
  • Assures maximum protection against pump failure
  • 416 Stainless Steel Shaft
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Helps reduce vibration and provides quieter operation
  • 2" NPT (Female) Discharge
  • Will replace most pumps without any plumbing changes
  • 20-Foot, Quick-Disconnect Power Cord w/ Plug
  • Pressure grommet for sealing and strain relief
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
18.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4260
GPH @ 5 feet
4260
GPH @ 10 feet
4260
GPH @ 15 feet
3300
GPH @ 20 feet
2100
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
45 Pounds
Product Length
9.63 Inches
Product Width
7 Inches
Product Height
15.69 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
18.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4260
GPH @ 5 feet
4260
GPH @ 10 feet
4260
GPH @ 15 feet
3300
GPH @ 20 feet
2100
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
45 Pounds
Product Length
9.63 Inches
Product Width
7 Inches
Product Height
15.69 Inches
Consumer Warranty
2 Years
