Barnes EHV412 - 1/2 HP Cast Iron Effluent Pump (Non-Automatic) (30' Cord)
Model:
101298G
Number of Reviews
(0)
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Shop All Effluent Pumps
Shop Barnes Effluent Pumps
Barnes EHV412 - 1/2 HP Cast Iron Effluent Pump (Non-Automatic) (30' Cord)
Model: 101298G
Number of Reviews
(0)
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share
+
Share This Product
Recommended Accessories
+
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Add All Required Accessories
Optional Accessories
10
Features
+
Style
Effluent
GPH
2880 Gallons
Switch Type
None
Barnes EHV412 - 1/2 HP Cast Iron Effluent Pump (Non-Automatic)
Ideal for residential effluent applications
Cast Iron Motor Housing & Pump Body
Allows for maximum heat dissipation for increased motor life
1/2 HP Oil-Filled Permanent Split-Capacitor (PSC) Motor
Thermally protected, energy-efficient design, only draws 6.4 FLA
Multi-Vane, Cast Iron Vortex Impeller
Allows for easy-passage of spherical solids up to 3/4"
Type 21 Carbon/Ceramic/Buna-N Mechanical Seal
Assures maximum protection against pump failure
Stainless Steel Shaft & Hardware
Robust design helps increase life-span of pump
Oil-Lubricated, Upper & Lower Ball Bearings
Provides increased life-span and quieter operation
High Capacity 2" Discharge
Will replace most pumps without any plumbing changes
30-Foot Power Cord w/ Plug
Pressure grommet for sealing and strain relief
2-Year Limited Warranty
California residents see
Prop 65 WARNINGS
Show All Features
×
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to:
www.p65Warnings.ca.gov
Specifications
+
101298G
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
6.4
Thermal Protection
Yes
Power Cord Length
30 Feet
Oil Free Motor
No
Starting Amps
19.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes

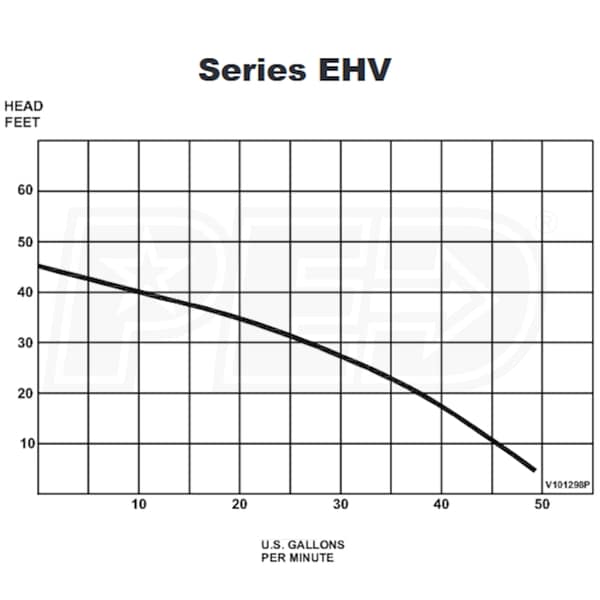

Total Head Lift
45 Feet
Float Type
No Switch
GPH @ 0 feet
2880
GPH @ 5 feet
2880
GPH @ 10 feet
2700
GPH @ 15 feet
2550
GPH @ 20 feet
2280
Discharge Port Size
2 Inch
Check Valve Included
No
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
45 Pounds
Consumer Warranty
2 Years
Product Length
9.63 Inches
Product Width
7.0 Inches
Product Height
13.5 Inches
