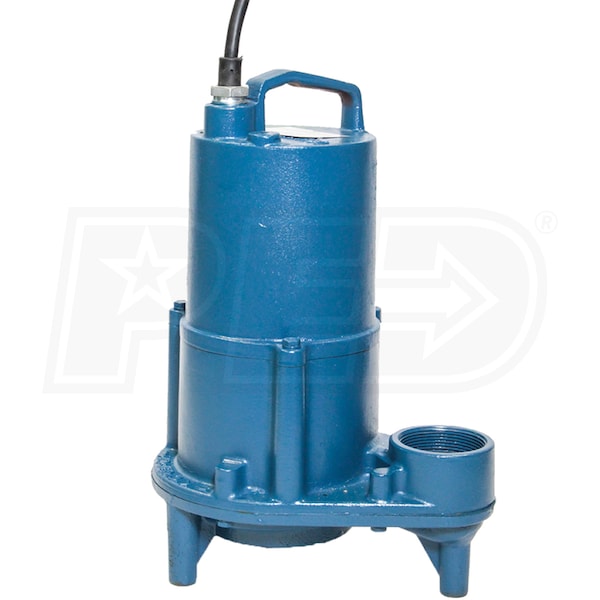

Barnes EHV412VF - 1/2 HP Cast Iron Effluent Pump w/ Pipe-Mount Vertical Float

Barnes EHV412VF - 1/2 HP Cast Iron Effluent Pump w/ Pipe-Mount Vertical Float
Our Price
Compare Prices
Shipping Info
Model: 101300
$419.25
Ships in 4-7 Business Days
Free Shipping
Free Shipping$419.25Buy Now
$419.25Visit Site
Ships in 4-7 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Effluent Sumps Pumps
GPH
2880
Gallons
Switch Type
Vertical Float Switch
Style
Effluent
GPH
2880 Gallons
Switch Type
Vertical
Features
Features
  • Barnes EHV412AT - 1/2 HP Cast Iron Effluent Pump w/ Pipe-Mount Vertical Float
  • Ideal for residential effluent applications
  • Cast Iron Motor Housing & Pump Body
  • Allows for maximum heat dissipation for increased motor life
  • 1/2 HP Oil-Filled Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 6.4 FLA
  • Vertical Float Switch (Not Shown)
  • Pipe-mounted design, allows for easier servicing
  • Multi-Vane, Cast Iron Vortex Impeller
  • Allows for easy-passage of spherical solids up to 3/4"
  • Type 21 Carbon/Ceramic/Buna-N Mechanical Seal
  • Assures maximum protection against pump failure
  • Stainless Steel Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Provides increased life-span and quieter operation
  • High Capacity 2" Discharge
  • Will replace most pumps without any plumbing changes
  • 20-Foot Power Cord w/ Plug
  • Pressure grommet for sealing and strain relief
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
6.4
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
19.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Total Head Lift
45 Feet
Float Type
Vertical Float

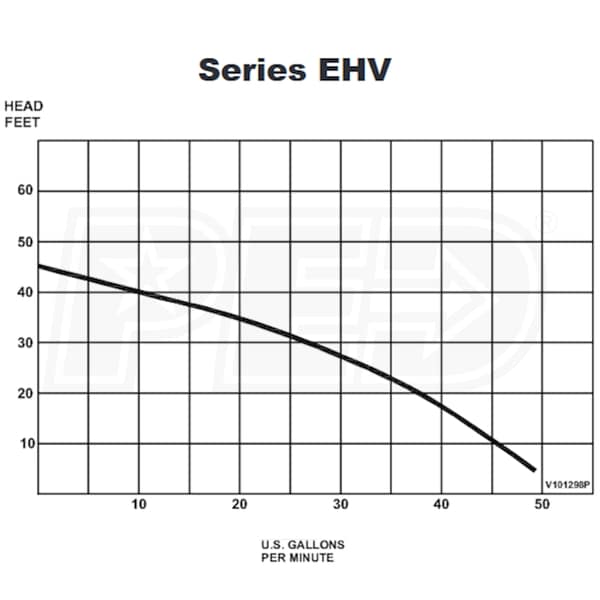

GPH @ 0 feet
2880
GPH @ 5 feet
2880
GPH @ 10 feet
2700
GPH @ 15 feet
2550
GPH @ 20 feet
2280
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
45 Pounds
Product Length
9.63 Inches
Product Width
7 Inches
Product Height
13.5 Inches
Consumer Warranty
2 Years
Style
Effluent Sumps Pumps
GPH
2880
Gallons
Switch Type
Vertical Float Switch
Style
Effluent
GPH
2880 Gallons
Switch Type
Vertical
Features
Features
  • Barnes EHV412AT - 1/2 HP Cast Iron Effluent Pump w/ Pipe-Mount Vertical Float
  • Ideal for residential effluent applications
  • Cast Iron Motor Housing & Pump Body
  • Allows for maximum heat dissipation for increased motor life
  • 1/2 HP Oil-Filled Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 6.4 FLA
  • Vertical Float Switch (Not Shown)
  • Pipe-mounted design, allows for easier servicing
  • Multi-Vane, Cast Iron Vortex Impeller
  • Allows for easy-passage of spherical solids up to 3/4"
  • Type 21 Carbon/Ceramic/Buna-N Mechanical Seal
  • Assures maximum protection against pump failure
  • Stainless Steel Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Provides increased life-span and quieter operation
  • High Capacity 2" Discharge
  • Will replace most pumps without any plumbing changes
  • 20-Foot Power Cord w/ Plug
  • Pressure grommet for sealing and strain relief
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
6.4
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
19.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Total Head Lift
45 Feet
Float Type
Vertical Float
GPH @ 0 feet
2880
GPH @ 5 feet
2880
GPH @ 10 feet
2700
GPH @ 15 feet
2550
GPH @ 20 feet
2280
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
45 Pounds
Product Length
9.63 Inches
Product Width
7 Inches
Product Height
13.5 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
6.4
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
19.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Total Head Lift
45 Feet
Float Type
Vertical Float
GPH @ 0 feet
2880
GPH @ 5 feet
2880
GPH @ 10 feet
2700
GPH @ 15 feet
2550
GPH @ 20 feet
2280
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
45 Pounds
Product Length
9.63 Inches
Product Width
7 Inches
Product Height
13.5 Inches
Consumer Warranty
2 Years
