Barnes BGBSE411 - 4/10 HP Basement Genie System

Model:

102148

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Barnes BGBSE411 - 4/10 HP Basement Genie System
Barnes BGBSE411 - 4/10 HP Basement Genie System
Model: 102148
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

7200 Gallons

Switch Type

Vertical

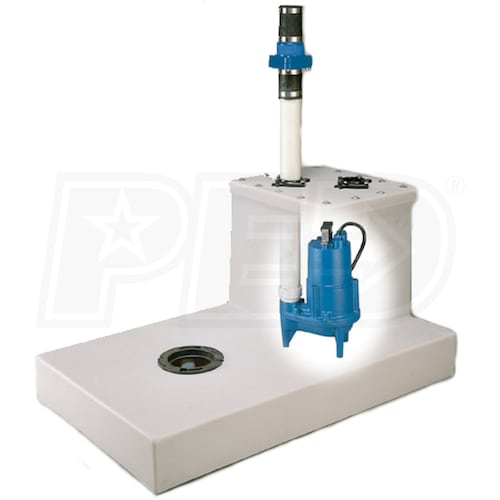

  • Barnes BGBSE411 - 4/10 HP Basement Genie System
  • Add a bathroom almost anywhere
  • Basement Genie Basin w/ Lid
  • Accommodates a toilet, shower, vanity or humidifier
  • Allows for use of a wide variety of toilet styles
  • Saves $$$ On Bathroom Construction
  • No need to destroy walls and concrete floors
  • Basin and plumbing can be hidden behind a wall or under a floor

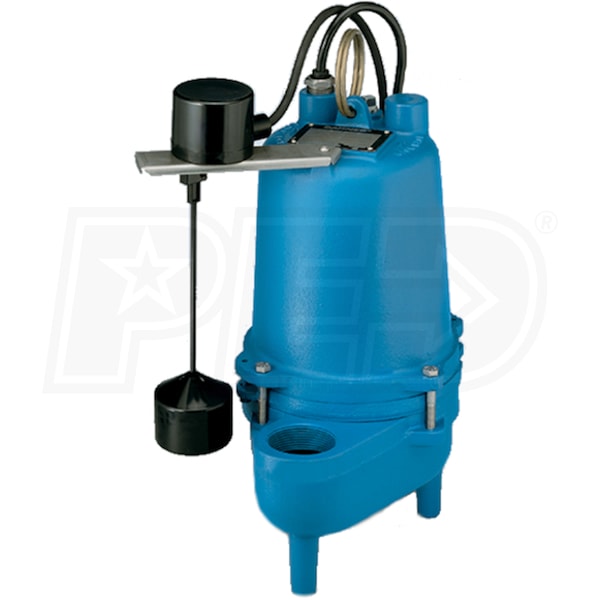

  • Barnes 4/10 HP Cast Iron Sewage Pump w/ Vertical Float
  • Designed for sewage removal in residential and light commercial applications
  • Also Includes:
  • 2" PVC Discharge Pipe
  • 2" NPT Vent Flange
  • 2" Straight Discharge Flange
  • 2" Rubber Gasket
  • Cast Iron Closet Flange
  • Rubber Cord Grommet
  • 3/8" Foam Lid Gasket
  • 2" Check Valve & Hardware
  • 2-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

102148
specs product image PID-80819
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
19
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Total Head Lift
25 Feet
Float Type
Vertical Float
GPH @ 0 feet
7200
GPH @ 5 feet
7200
GPH @ 10 feet
6000
GPH @ 15 feet
4125
GPH @ 20 feet
2100
Discharge Port Size
2 Inch
Check Valve Included
Yes
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.4 hp
Overview
Weight
102 Pounds
Consumer Warranty
2 Years
Product Length
40.75 Inches
Product Height
21 Inches
