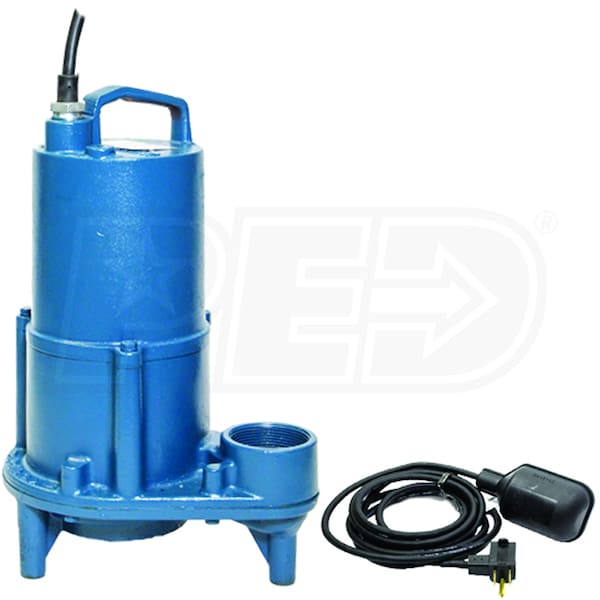

Barnes EHV412A - 1/2 HP Cast Iron Effluent Pump w/ Pipe-Mount Tether Float

Model:

103542

Write a Review
$471.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 2 In-Stock
Ships Monday, Apr 12th
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Barnes EHV412A - 1/2 HP Cast Iron Effluent Pump w/ Pipe-Mount Tether Float
Barnes EHV412A - 1/2 HP Cast Iron Effluent Pump w/ Pipe-Mount Tether Float
Model: 103542
$471.00
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Style

Effluent

GPH

2880 Gallons

Switch Type

Tether

  • Barnes EHV412A - 1/2 HP Cast Iron Effluent Pump w/ Pipe-Mount Tether Float
  • Ideal for residential effluent applications
  • Cast Iron Motor Housing & Pump Body
  • Allows for maximum heat dissipation for increased motor life
  • 1/2 HP Oil-Filled Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 6.4 FLA
  • Piggyback Tether Float Switch
  • Pipe-mounted design, allows for easier servicing
  • Multi-Vane, Cast Iron Vortex Impeller
  • Allows for easy-passage of spherical solids up to 3/4"
  • Type 21 Carbon/Ceramic/Buna-N Mechanical Seal
  • Assures maximum protection against pump failure
  • Stainless Steel Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Provides increased life-span and quieter operation
  • High Capacity 2" Discharge
  • Will replace most pumps without any plumbing changes
  • 20-Foot Power Cord w/ Plug
  • Pressure grommet for sealing and strain relief
  • 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

103542
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
6.4
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
19.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Total Head Lift
45 Feet
Float Type
Tether Switch
GPH @ 0 feet
2880
GPH @ 5 feet
2880
GPH @ 10 feet
2700
GPH @ 15 feet
2550
GPH @ 20 feet
2280
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
45 Pounds
Consumer Warranty
2 Years
Product Length
9.63 Inches
Product Width
7 Inches
Product Height
13.5 Inches
