Barnes EHV412AT -1/2 HP Cast Iron Effluent Pump w/ Pump-Mount Tether Float

Model:

103543

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Barnes EHV412AT -1/2 HP Cast Iron Effluent Pump w/ Pump-Mount Tether Float
Barnes EHV412AT -1/2 HP Cast Iron Effluent Pump w/ Pump-Mount Tether Float
Model: 103543
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Style

Effluent

GPH

2880 Gallons

Switch Type

Piggy-Back Tether

  • Barnes EHV412AT - 1/2 HP Cast Iron Effluent Pump w/ Pipe-Mount Tether Float
  • Ideal for residential effluent applications
  • Cast Iron Motor Housing & Pump Body
  • Allows for maximum heat dissipation for increased motor life
  • 1/2 HP Oil-Filled Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 6.4 FLA
  • Piggyback Tether Float Switch (Not Shown)
  • Pump-mounted design, allows for easier installation
  • Multi-Vane, Cast Iron Vortex Impeller
  • Allows for easy-passage of spherical solids up to 3/4"
  • Type 21 Carbon/Ceramic/Buna-N Mechanical Seal
  • Assures maximum protection against pump failure
  • Stainless Steel Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Provides increased life-span and quieter operation
  • High Capacity 2" Discharge
  • Will replace most pumps without any plumbing changes
  • 20-Foot Power Cord w/ Plug
  • Pressure grommet for sealing and strain relief
  • 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

103543
specs product image PID-80845
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
6.4
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
19.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Total Head Lift
45 Feet
Float Type
Piggy-Back Tether Switch

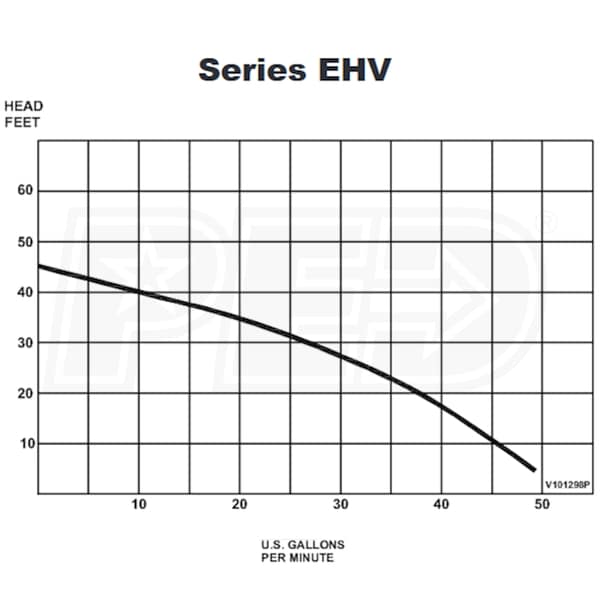

GPH @ 0 feet
2880
GPH @ 5 feet
2880
GPH @ 10 feet
2700
GPH @ 15 feet
2550
GPH @ 20 feet
2280
Discharge Port Size
2 Inch
Check Valve Included
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
45 Pounds
Consumer Warranty
2 Years
Product Length
9.63 Inches
Product Width
7 Inches
Product Height
13.5 Inches
