Barnes EP52X - 1/2 HP Cast Iron Effluent Pump (Non-Automatic) (240V)

Model:

119330

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Barnes EP52X - 1/2 HP Cast Iron Effluent Pump (Non-Automatic) (240V)
Barnes EP52X - 1/2 HP Cast Iron Effluent Pump (Non-Automatic) (240V)
Model: 119330
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Effluent

GPH

5100 Gallons

Switch Type

None

  • Barnes EP52X - 1/2 HP Cast Iron Effluent Pump (Non-Automatic) (240V)
  • Ideal for residential effluent applications
  • Requires float switch or controller for automatic operation
  • Cast Iron Motor Housing
  • Allows for maximum heat dissipation for increased motor life
  • Thermoplastic Volute & Strainer
  • Corrosion-resistant design provides long life in effluent applications
  • 1/2 HP Oil-Filled Permanent Split-Capacitor (PSC) Motor (240V)
  • Thermally protected, energy-efficient design, only draws 3.4 FLA
  • 10-Vane, Cast Iron Vortex Impeller
  • Allows for easy-passage of spherical solids up to 3/4"
  • Silicon Carbide Mechanical Seal
  • Assures maximum protection against pump failure
  • Stainless Steel Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Provides increased life-span and quieter operation
  • High Capacity 2" Discharge
  • Will replace most pumps without any plumbing changes
  • 20-Foot Power Cord w/ Plug (NEMA 6-15P)
  • Allows for easy installation
  • 1-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

119330
specs product image PID-80839
Base
Base Material
Thermoplastic
Motor
Voltage
240 Volt Single-Phase
Running Amps
3.4
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Total Head Lift
23 Feet
Float Type
No Switch

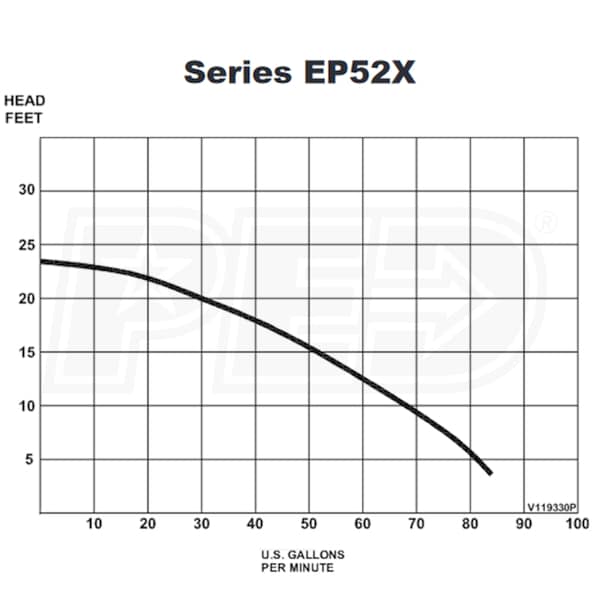

GPH @ 0 feet
5100
GPH @ 5 feet
4860
GPH @ 10 feet
4080
GPH @ 15 feet
3060
GPH @ 20 feet
1800
Discharge Port Size
2 Inch
Check Valve Included
No
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
35 Pounds
Consumer Warranty
1 Year
Product Length
8.52 Inches
Product Width
6.23 Inches
Product Height
13 Inches
