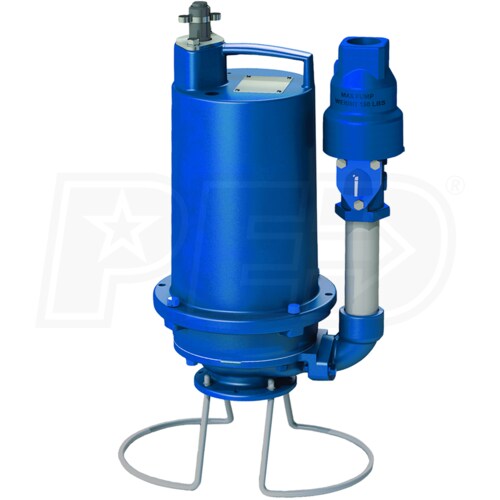

Barnes PGPT1022 - 1 HP Cast Iron Grinder Pump (Non-Automatic) (240V)
Model: 140708
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
1080
Gallons
Switch Type
None
Style
Sewage Pump
GPH
1080 Gallons
Switch Type
None
Features
Features
- Barnes PGPT1022 - 1 HP PGPT Turbine Grinder Pump (Non-Automatic) (240V)
- An excellent choice for commercial, residential, and industrial wastewater environments
- Requires control box or float switch for automatic operation
- Enamel Coated Cast Iron Construction
- Helps prevent corrosion in harsh sewage applications
- 1 HP Energy Efficient, Oil-Filled Motor (240V)
- High-torque design helps eliminates jamming during grind cycle
- Only draws 12.5A, can be used on a standard 15A circuit
- Exclusive Slicerator™ Technology (440 Stainless Steel)
- Radial cutter eliminates clogging with over 400,000 slices per minute
- Keyed Grinder Assembly
- Provides tighter tolerances and better cutting of tough objects
- 7/8" Stainless Steel Shaft
- Short overhang reduces deflection at seal and cutter
- Silicon Carbide Seal
- Abrasion-resistant design increase seal life with reduced operating pressure
- Abrasion Resistant Coating (Impeller & Casing)
- Helps extend pump life by reducing wear
- Built-In Stainless Steel Stand
- Corrosion-resistant design keeps pump off bottom of basin
- Flapper-Style Check Valve & Stainless Steel Nipple
- Anti-siphon design helps break up solids
- 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
240 Volt
Running Amps
12.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
35
Pump
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Stainless Steel
Handles Solids
Yes
Total Head Lift
220 Feet
Float Type
No Switch
GPH @ 0 feet
1080
GPH @ 5 feet
1080
GPH @ 10 feet
1080
GPH @ 15 feet
1080
GPH @ 20 feet
1080
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
91 Pounds
Consumer Warranty
2 Years
Product Length
11.1 Inches
Product Width
8.81 Inches
Product Height
20.84 Inches
Style
GPH
1080
Gallons
Switch Type
None
Style
Sewage Pump
GPH
1080 Gallons
Switch Type
None
Features
Features
- Barnes PGPT1022 - 1 HP PGPT Turbine Grinder Pump (Non-Automatic) (240V)
- An excellent choice for commercial, residential, and industrial wastewater environments
- Requires control box or float switch for automatic operation
- Enamel Coated Cast Iron Construction
- Helps prevent corrosion in harsh sewage applications
- 1 HP Energy Efficient, Oil-Filled Motor (240V)
- High-torque design helps eliminates jamming during grind cycle
- Only draws 12.5A, can be used on a standard 15A circuit
- Exclusive Slicerator™ Technology (440 Stainless Steel)
- Radial cutter eliminates clogging with over 400,000 slices per minute
- Keyed Grinder Assembly
- Provides tighter tolerances and better cutting of tough objects
- 7/8" Stainless Steel Shaft
- Short overhang reduces deflection at seal and cutter
- Silicon Carbide Seal
- Abrasion-resistant design increase seal life with reduced operating pressure
- Abrasion Resistant Coating (Impeller & Casing)
- Helps extend pump life by reducing wear
- Built-In Stainless Steel Stand
- Corrosion-resistant design keeps pump off bottom of basin
- Flapper-Style Check Valve & Stainless Steel Nipple
- Anti-siphon design helps break up solids
- 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
240 Volt
Running Amps
12.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
35
Pump
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Stainless Steel
Handles Solids
Yes
Total Head Lift
220 Feet
Float Type
No Switch
GPH @ 0 feet
1080
GPH @ 5 feet
1080
GPH @ 10 feet
1080
GPH @ 15 feet
1080
GPH @ 20 feet
1080
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
91 Pounds
Consumer Warranty
2 Years
Product Length
11.1 Inches
Product Width
8.81 Inches
Product Height
20.84 Inches
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
240 Volt
Running Amps
12.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
35
Pump
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Stainless Steel
Handles Solids
Yes
Total Head Lift
220 Feet
Float Type
No Switch
GPH @ 0 feet
1080
GPH @ 5 feet
1080
GPH @ 10 feet
1080
GPH @ 15 feet
1080
GPH @ 20 feet
1080
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
91 Pounds
Consumer Warranty
2 Years
Product Length
11.1 Inches
Product Width
8.81 Inches
Product Height
20.84 Inches
