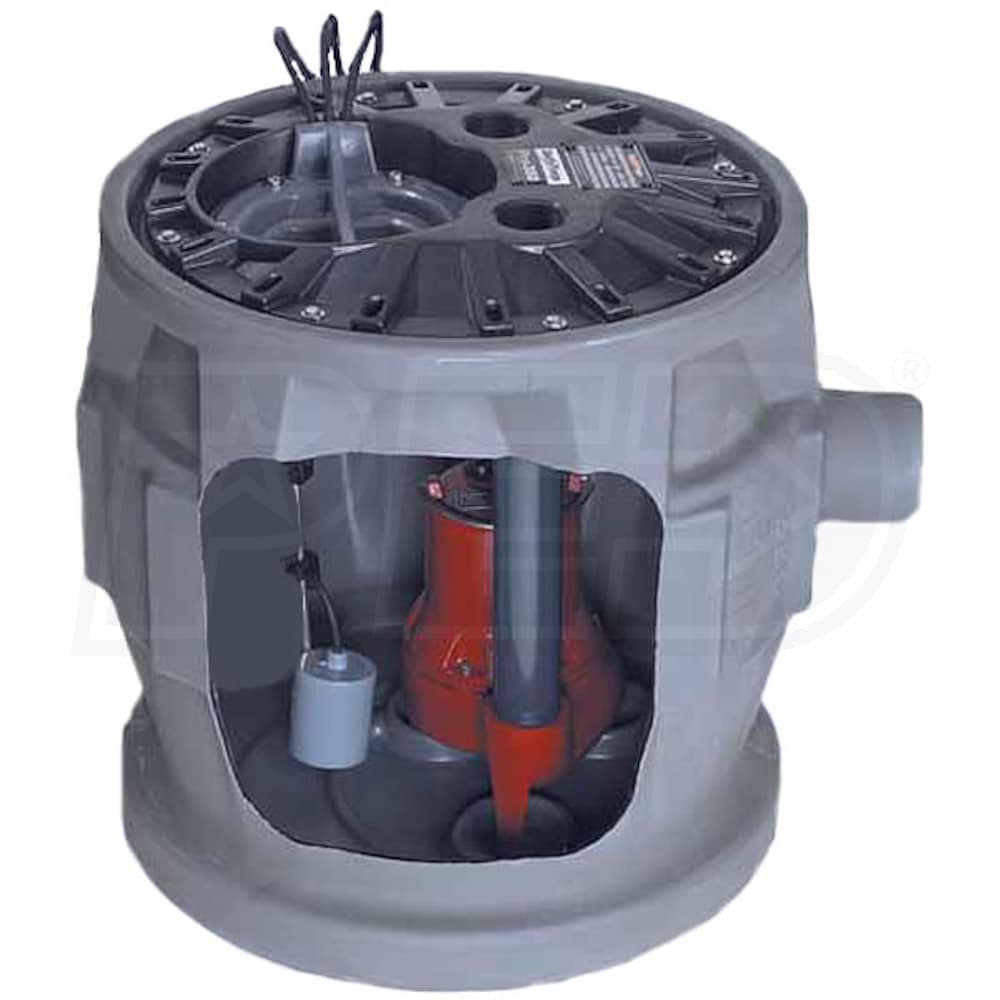

Liberty Pumps P382LE51 - 1/2 HP Pro380 Cast Iron Sewage Pump System (24"x24") w/ Top Discharge
Model: P382LE51
+
Share This Product
-
Product Description
-
5Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
9600
Gallons
Switch Type
Style
Sewage Pump
GPH
9600 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Liberty Pro380 Series P382LE51 w/ QuickTree®Technology
- Factory pre-assembled for easy installation
- 1/2 HP Cast Iron Sewage Pump (LE51)
- A workhorse for residential & light commercial sewage apps.
- Piggyback Tether Float Switch
- Provides reliable automatic operation & allows for longer cycles
- Epoxy Powder Coated Cast Iron Construction
- Designed to provide years of reliable performance
- Engineered 2-Vane Semi-Open HYTREL Polymer Impeller
- Corrosion-resistant design, passes spherical solids up to 2"
- Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
- With permanently lubricated bearings for extended pump life
- 24" x 24" (41-Gallon) Polyethylene Basin w/ Molded 4" Inlet
- For easier installation in difficult soil/bedrock locations
- Integrally molded anti-flotation collar & torque stops (pump)
- QuickTree® Technology & Separate Access Cover w/ Rubber Seals
- Allows easy removal of floats without pulling the pump
- Unique integrated cord seal technology in cover
- 2" Top Discharge / Vent
- Designed for vertical discharge applications
- 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
22.5
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
9600
GPH @ 5 feet
8400
GPH @ 10 feet
6720
GPH @ 15 feet
5400
GPH @ 20 feet
3300
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
64 Pounds
Consumer Warranty
3 Years
Product Width
25 Inches
Product Height
24 Inches
UPC
671812110487
Style
GPH
9600
Gallons
Switch Type
Style
Sewage Pump
GPH
9600 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Liberty Pro380 Series P382LE51 w/ QuickTree®Technology
- Factory pre-assembled for easy installation
- 1/2 HP Cast Iron Sewage Pump (LE51)
- A workhorse for residential & light commercial sewage apps.
- Piggyback Tether Float Switch
- Provides reliable automatic operation & allows for longer cycles
- Epoxy Powder Coated Cast Iron Construction
- Designed to provide years of reliable performance
- Engineered 2-Vane Semi-Open HYTREL Polymer Impeller
- Corrosion-resistant design, passes spherical solids up to 2"
- Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
- With permanently lubricated bearings for extended pump life
- 24" x 24" (41-Gallon) Polyethylene Basin w/ Molded 4" Inlet
- For easier installation in difficult soil/bedrock locations
- Integrally molded anti-flotation collar & torque stops (pump)
- QuickTree® Technology & Separate Access Cover w/ Rubber Seals
- Allows easy removal of floats without pulling the pump
- Unique integrated cord seal technology in cover
- 2" Top Discharge / Vent
- Designed for vertical discharge applications
- 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
22.5
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
9600
GPH @ 5 feet
8400
GPH @ 10 feet
6720
GPH @ 15 feet
5400
GPH @ 20 feet
3300
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
64 Pounds
Consumer Warranty
3 Years
Product Width
25 Inches
Product Height
24 Inches
UPC
671812110487
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
22.5
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
9600
GPH @ 5 feet
8400
GPH @ 10 feet
6720
GPH @ 15 feet
5400
GPH @ 20 feet
3300
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
64 Pounds
Consumer Warranty
3 Years
Product Width
25 Inches
Product Height
24 Inches
UPC
671812110487
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
Does this pump have an alarm?
Steve
from Washington
October 12, 2020
Answer
It does not have an alarm. If you would like an alarm, model P382LE51/A2 has one.
