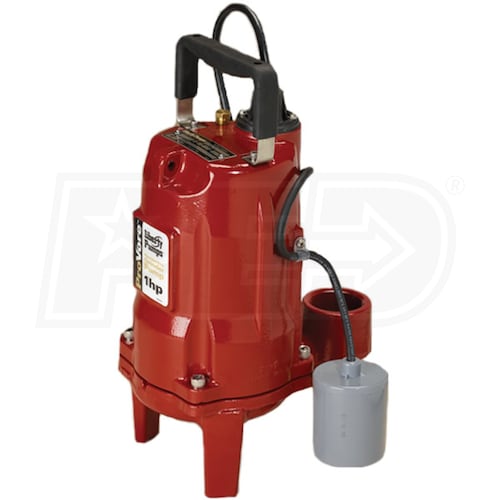

Liberty Pumps PRG102A-2 - 1 HP ProVore® Residential Grinder Pump (2") w/ Piggyback Tether Float (230V) (25' Cord)
Model: PRG102A-2
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
2760
Gallons
Switch Type

Style
Sewage Pump
GPH
2760 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Submersible Cast Iron ProVore® Grinder Pump (230V)
- 2-Inch Discharge designed for residential sewage applications
- Epoxy Powder Coated Cast Iron Construction
- Designed to provide years of reliable performance
- Adjustable, Mercury-Free, Wide Angle Tether Float Switch
- Provides relialbe automatic operation in residential sump pits
- Rugged & Thermally Protected 1 HP Motor
- Hermetically sealed, permanently lubricated design
- V-Slice® Cutter Technology (440 Stainless Steel)
- Provides improved shredding performance over radial cutters
- Stainless Steel Rotor Shaft w/ Unitized Silicon Carbon Seal
- With permanently lubricated bearings for extended pump life
- Multi-Vane Cast Iron Impeller
- Keeps debris away seal area to minimize risk of internal damage
- Non-Corrosive Stainless Steel Fasteners
- Increases the lifespan of the pump even in the harshest systems
- Quick-Disconnect 25' Power Cord
- Allows for easy replacement of cord without breaking motor seals
- PLEASE NOTE - Requires 230V Power (Min. 20A Breaker)
- 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
240 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2760
GPH @ 5 feet
2700
GPH @ 10 feet
2580
GPH @ 15 feet
2400
GPH @ 20 feet
2160
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
12-16 Inches
Float Off
6 Inches
Manual Override
Yes
Engine
Horsepower
1 hp
Overview
Weight
58 Pounds
Consumer Warranty
3 Years
Product Length
11 Inches
Product Width
7.125 Inches
Product Height
17.625 Inches
UPC
671812121315
Style

GPH
2760
Gallons
Switch Type

Style
Sewage Pump
GPH
2760 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Submersible Cast Iron ProVore® Grinder Pump (230V)
- 2-Inch Discharge designed for residential sewage applications
- Epoxy Powder Coated Cast Iron Construction
- Designed to provide years of reliable performance
- Adjustable, Mercury-Free, Wide Angle Tether Float Switch
- Provides relialbe automatic operation in residential sump pits
- Rugged & Thermally Protected 1 HP Motor
- Hermetically sealed, permanently lubricated design
- V-Slice® Cutter Technology (440 Stainless Steel)
- Provides improved shredding performance over radial cutters
- Stainless Steel Rotor Shaft w/ Unitized Silicon Carbon Seal
- With permanently lubricated bearings for extended pump life
- Multi-Vane Cast Iron Impeller
- Keeps debris away seal area to minimize risk of internal damage
- Non-Corrosive Stainless Steel Fasteners
- Increases the lifespan of the pump even in the harshest systems
- Quick-Disconnect 25' Power Cord
- Allows for easy replacement of cord without breaking motor seals
- PLEASE NOTE - Requires 230V Power (Min. 20A Breaker)
- 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
240 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2760
GPH @ 5 feet
2700
GPH @ 10 feet
2580
GPH @ 15 feet
2400
GPH @ 20 feet
2160
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
12-16 Inches
Float Off
6 Inches
Manual Override
Yes
Engine
Horsepower
1 hp
Overview
Weight
58 Pounds
Consumer Warranty
3 Years
Product Length
11 Inches
Product Width
7.125 Inches
Product Height
17.625 Inches
UPC
671812121315
Product Specs
+−
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
240 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2760
GPH @ 5 feet
2700
GPH @ 10 feet
2580
GPH @ 15 feet
2400
GPH @ 20 feet
2160
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
12-16 Inches
Float Off
6 Inches
Manual Override
Yes
Engine
Horsepower
1 hp
Overview
Weight
58 Pounds
Consumer Warranty
3 Years
Product Length
11 Inches
Product Width
7.125 Inches
Product Height
17.625 Inches
UPC
671812121315
