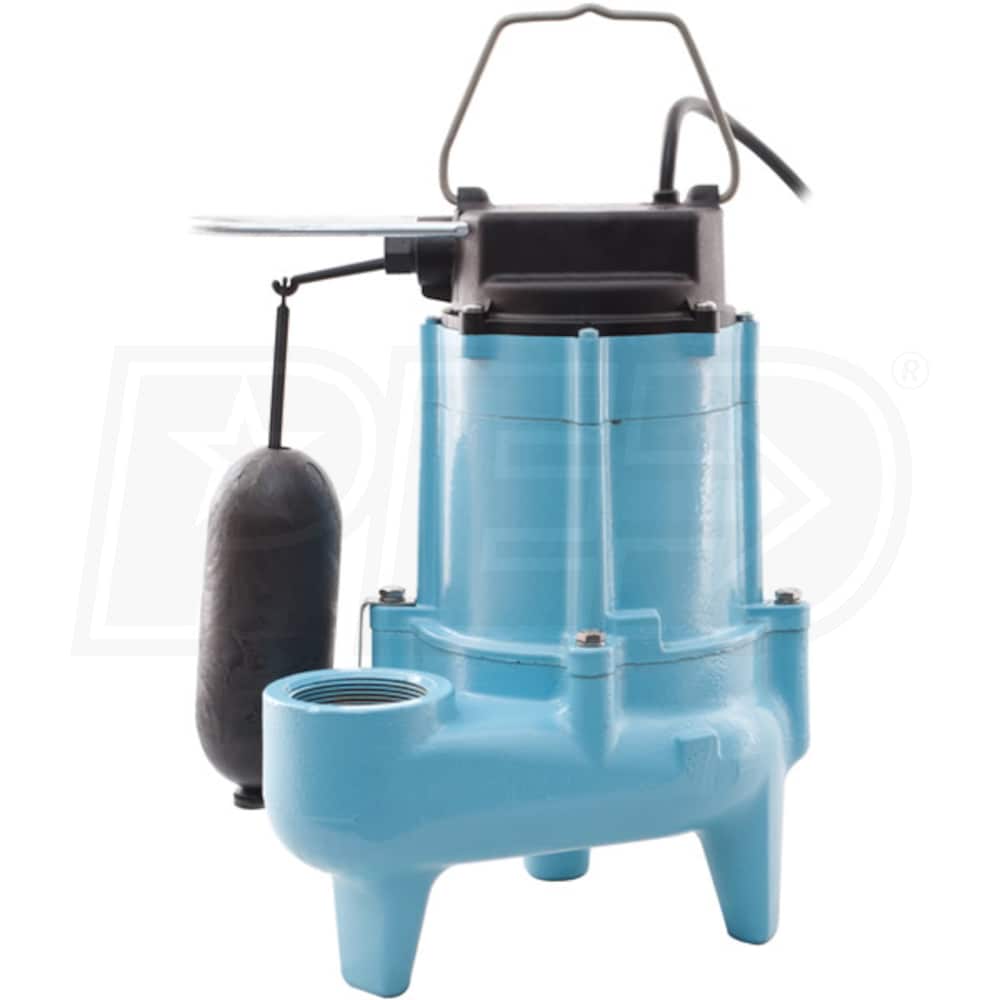

Little Giant 9SC-CIA-SFS - 4/10 HP Cast Iron Sewage Pump (2") w/ Vertical Float (20' Cord)
Model:
509411
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Sewage Pump
GPH
6000 Gallons
Switch Type
Vertical
- Continuous Duty Rated Automatic Submersible Sewage Pump
- Vortex Nylon impeller
- Designed for the tough demanding tasks for wastewater removal
- Upper sintered sleeve and lower ball bearings
- Epoxy Coated Cast Iron Pump Housing w/ 2" Discharge
- Nitrile with carbon and cermaic faces
- Minimizes rust & corrosion to extend overall pump life
- Integral float switch: On levels: 9" -12" Off levels: 3" - 6"
- Handles 2" solids
- 4/10 HP PSC Motor w/ Thermal Overload Protection
- Epoxy coated cast iron housing / thermoplastic cover
- Energy saving design w/ low amp draw (8-Amps full load)
- Epoxy coated cast iron housing and volute ( 2" FNPT ) discharge
- Cooler running motor which extends the life of the pump
- Designed for continuous duty
- Integral Snap-Action Vertical Float Switch
- Double-seal design minimizes switch corrosion
- 4 / 10 HP PSC motor with overload protection
- Epoxy Coated Cast Iron Volute w/ Vortex Style Nylon Impeller
- Our SKU number(s): Little Giant 509228
- The manufacturer model number(s): Little Giant 509228
- Non-clogging design passes up to 2" spherical solids
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection is harsh wastewater condtions
- Upper Sintered Sleeve Bearings & Lower Ball Bearings
- Minimizes friction while providing smooth & quiet operation
- Stainless Steel Screws, Bolts & Handle
- Never worry about sheet metal parts that rust or corrode
- 20-Foot SJTW Power Cord
- 20' Max Shutoff Head
- 2-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
509411
General Information
Product Category
Sump Pump
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
8
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
6000
GPH @ 5 feet
6000
GPH @ 10 feet
4800
GPH @ 15 feet
3600
Discharge Port Size
2 Inch
Check Valve Included
No
Float On
9-12 Inches
Float Off
3-6 Inches
Manual Override
No
Engine
Horsepower
.4 hp
Overview
Product Category
Sump Pump
Weight
38.5 Pounds
Consumer Warranty
2 Years
Product Length
10.7 Inches
Product Width
8.6 Inches
Product Height
14.4 Inches
UPC
010121003231
