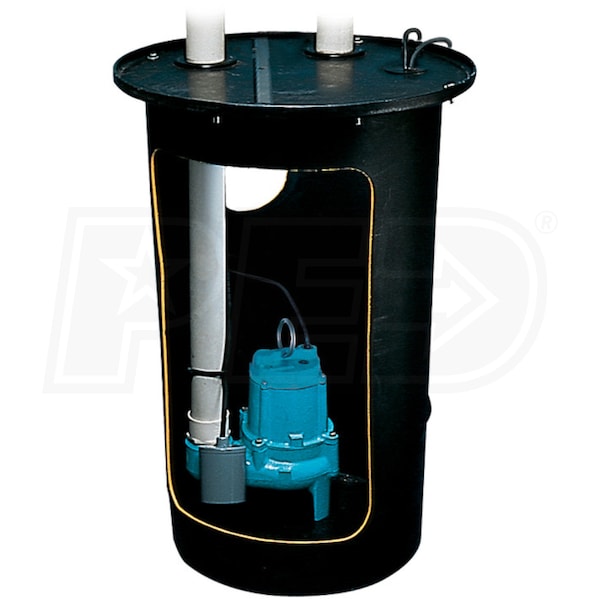

Little Giant 10S-SMPXRT-K - 1/2 HP Cast Iron Pre-Assembled Sewage Pump (10SC-CIA-RF) System w/ PB Tether Float (18" x 30" - Roll Top Polyethylene Basin)

Model:

511064

Write A Review
$668.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Oct 10th
Shipping to60601

Little Giant 10S-SMPXRT-K - 1/2 HP Cast Iron Pre-Assembled Sewage Pump (10SC-CIA-RF) System w/ PB Tether Float (18
Little Giant 10S-SMPXRT-K - 1/2 HP Cast Iron Pre-Assembled Sewage Pump (10SC-CIA-RF) System w/ PB Tether Float (18" x 30" - Roll Top Polyethylene Basin)
Model: 511064
$668.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

7200 Gallons

Switch Type

Piggy-Back Tether

  • Little Giant 10S-SMPXRT-K - 1/2 HP Pre-Assembled Sewage Pump System
  • Continuous duty rated automatic submersible sewage pump
  • Designed for the tough demanding tasks for wastewater removal
  • Epoxy Coated Cast Iron Pump Housing w/ 2" Discharge
  • Minimizes rust & corrosion to extend overall pump life
  • 1/20HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (11-Amps full load)
  • 20' SJTW Power Cord & Piggyback Tethered Float Switch
  • Switch can be bypassed to run pump manually in an emergency
  • Epoxy Coated Cast Iron Volute w/ Vortex Style Nylon Impeller
  • Non-clogging design passes up to 2" spherical solids
  • 20' Max Shutoff Head
  • Additional Features
  • Nitrile mechanical shaft seal w/ carbon & ceramic faces
  • Upper sintered sleeve bearings & lower ball bearings
  • System Includes Pre-Assembled:
  • 18"x30" Roll top poly basin (113056) w/ 4" Adaptaflex and multi-tite grommet
  • 1-Piece Struct foam slip-fit flange cover (113057) with 2 / 3" vent & 2" disch
  • 10SC-CIM Sewage pump (511433) 115V 1/2 HP w/ piggyback tether float switch
  • 2" Check valve (940022)
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

511064
specs product image PID-153043
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
11
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
7200
GPH @ 5 feet
7200
GPH @ 10 feet
6000
GPH @ 15 feet
4800
GPH @ 20 feet
2640
Discharge Port Size
2 Inch
Check Valve Included
No
Manual Override
Yes
Max Head
25 Feet
Engine
Horsepower
.5 HP
Overview
Weight
58 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
20.5 Inches
Product Width
20.5 Inches
Product Height
39.75 Inches
UPC
010121110649
