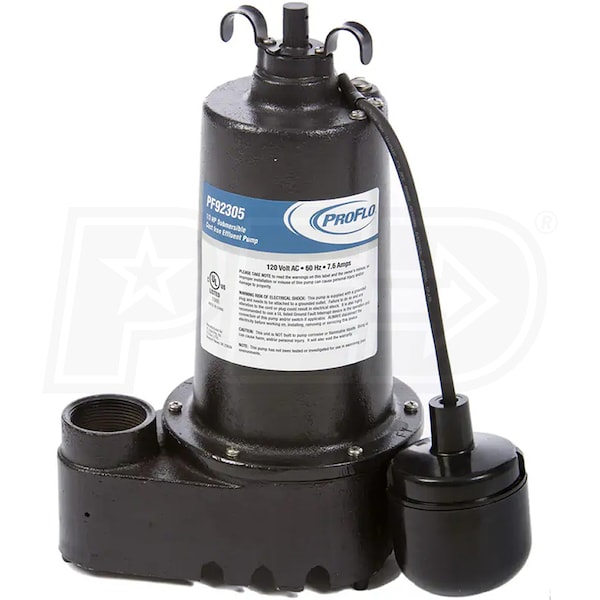

ProFlo PF92305 - 1/3 HP Cast Iron Submersible Effluent Pump w/ Tether Float Switch
Model: PF92305
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews(2)
Write a Review
Ask a Question
$151.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 1-3 Business Days
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Effluent Sumps Pumps
GPH
3600
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Effluent
GPH
3600 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • PROFLO Submersible Effluent Pump w/ Tether Float Switch
  • For typical residential and commercial applications
  • 1/3 HP Permanent Split Capacitor Motor (3450 RPM)
  • Thermally Protected, Continuous duty design, only draws 7.6A
  • Heavy-Duty Cast Iron Housing & Base Construction
  • Keeps the pump running cooler and extends lifespan
  • Adjustable Wide Angle Tether Float
  • Provides automatic operation via piggyback plug
  • SS Non-Clogging Vortex Impeller
  • Corrosion-resistant design, passes solids up to 5/8"
  • High Capacity 1-1/2" Side Discharge
  • Will replace most sewage pumps without any plumbing changes
  • High-Quality Components
  • Stainless steel motor shaft & fasteners
  • 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
7.6
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Piggy-Back Tether Switch

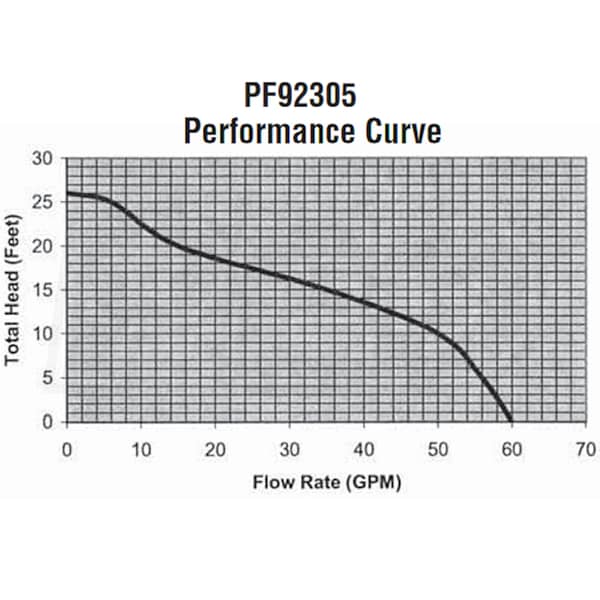

GPH @ 0 feet
3600
GPH @ 5 feet
3360
GPH @ 10 feet
3000
GPH @ 15 feet
2100
GPH @ 20 feet
900
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Weight
20 Pounds
Consumer Warranty
3 Years
Product Length
7.625 Inches
Product Width
5.25 Inches
Product Height
10.5 Inches
UPC
781889134726
Style
Effluent Sumps Pumps
GPH
3600
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Effluent
GPH
3600 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • PROFLO Submersible Effluent Pump w/ Tether Float Switch
  • For typical residential and commercial applications
  • 1/3 HP Permanent Split Capacitor Motor (3450 RPM)
  • Thermally Protected, Continuous duty design, only draws 7.6A
  • Heavy-Duty Cast Iron Housing & Base Construction
  • Keeps the pump running cooler and extends lifespan
  • Adjustable Wide Angle Tether Float
  • Provides automatic operation via piggyback plug
  • SS Non-Clogging Vortex Impeller
  • Corrosion-resistant design, passes solids up to 5/8"
  • High Capacity 1-1/2" Side Discharge
  • Will replace most sewage pumps without any plumbing changes
  • High-Quality Components
  • Stainless steel motor shaft & fasteners
  • 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
7.6
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3600
GPH @ 5 feet
3360
GPH @ 10 feet
3000
GPH @ 15 feet
2100
GPH @ 20 feet
900
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Weight
20 Pounds
Consumer Warranty
3 Years
Product Length
7.625 Inches
Product Width
5.25 Inches
Product Height
10.5 Inches
UPC
781889134726
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
7.6
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3600
GPH @ 5 feet
3360
GPH @ 10 feet
3000
GPH @ 15 feet
2100
GPH @ 20 feet
900
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Weight
20 Pounds
Consumer Warranty
3 Years
Product Length
7.625 Inches
Product Width
5.25 Inches
Product Height
10.5 Inches
UPC
781889134726
