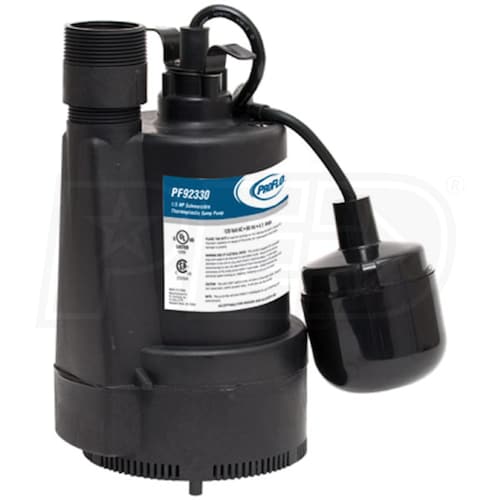

ProFlo PF92330 - 1/3 HP Thermoplastic Top Discharge Sump Pump & Base w/ Tether Float Swith
Model: PF92330
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
2400
Gallons
Switch Type

Style
Primary
GPH
2400 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- 1/3 HP Top-Discharge Submersible Sump Pump w/ Tether Float Switch
- For water transfer, fountains/ponds, farm use & sump basins
- 1/3 HP Split Capacitor Motor (3450 RPM)
- Thermally protected, continuous duty design, only draws 4.1A
- Corrosion-Resistant Thermoplastic Construction
- Glass reinforced nylon impeller maximizes pump life

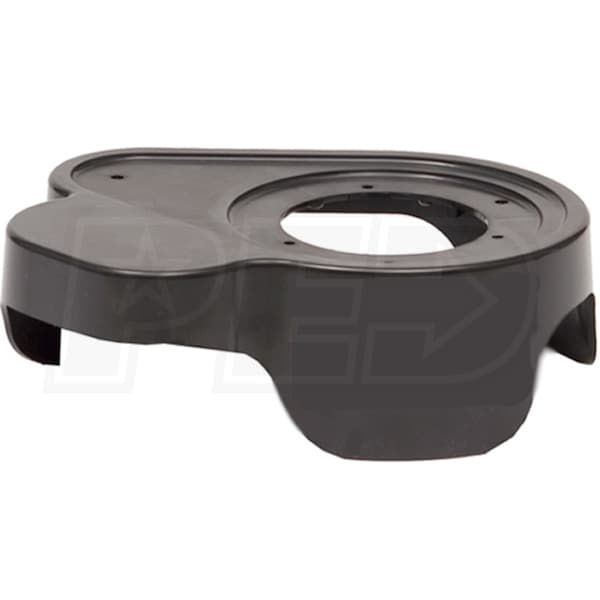

- Pre-Attached Thermoplastic Base (See Images)
- Handles 1/8" solids, prevents clogging & switch malfunction
- Wide-Angle Tether Float Switch
- Pump mounted for reliable automatic operation
- Versitile 1-1/4" &1-1/2" Top Discharge
- Will replace most pumps without any plumbing changes
- High-Quality Components
- Stainless steel motor shaft & fasteners
- 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
4.1
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Thermoplastic
Solids Handling Size
.055 inch
Float Type
Piggy-Back Tether Switch

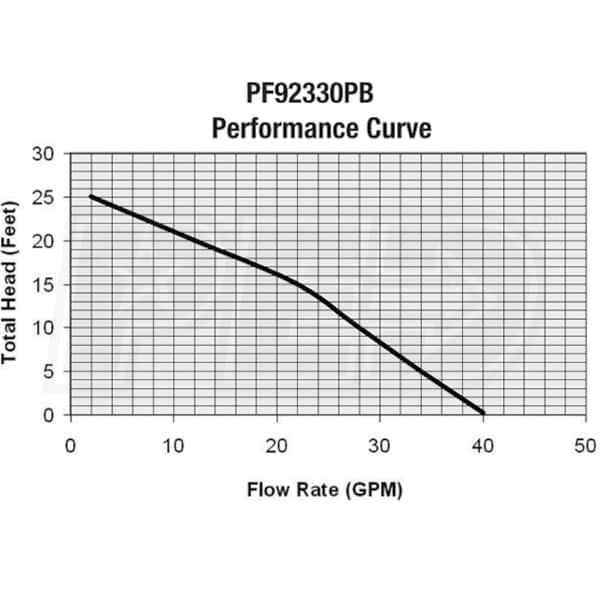

GPH @ 0 feet
2400
GPH @ 5 feet
2040
GPH @ 10 feet
1680
GPH @ 15 feet
1320
GPH @ 20 feet
720
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
10 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
8.5 Inches
Product Height
12.125 Inches
UPC
781889134740
Style

GPH
2400
Gallons
Switch Type

Style
Primary
GPH
2400 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- 1/3 HP Top-Discharge Submersible Sump Pump w/ Tether Float Switch
- For water transfer, fountains/ponds, farm use & sump basins
- 1/3 HP Split Capacitor Motor (3450 RPM)
- Thermally protected, continuous duty design, only draws 4.1A
- Corrosion-Resistant Thermoplastic Construction
- Glass reinforced nylon impeller maximizes pump life
- Pre-Attached Thermoplastic Base (See Images)
- Handles 1/8" solids, prevents clogging & switch malfunction
- Wide-Angle Tether Float Switch
- Pump mounted for reliable automatic operation
- Versitile 1-1/4" &1-1/2" Top Discharge
- Will replace most pumps without any plumbing changes
- High-Quality Components
- Stainless steel motor shaft & fasteners
- 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
4.1
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Thermoplastic
Solids Handling Size
.055 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2400
GPH @ 5 feet
2040
GPH @ 10 feet
1680
GPH @ 15 feet
1320
GPH @ 20 feet
720
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
10 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
8.5 Inches
Product Height
12.125 Inches
UPC
781889134740
Product Specs
+−
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
4.1
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Thermoplastic
Solids Handling Size
.055 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2400
GPH @ 5 feet
2040
GPH @ 10 feet
1680
GPH @ 15 feet
1320
GPH @ 20 feet
720
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
10 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
8.5 Inches
Product Height
12.125 Inches
UPC
781889134740
