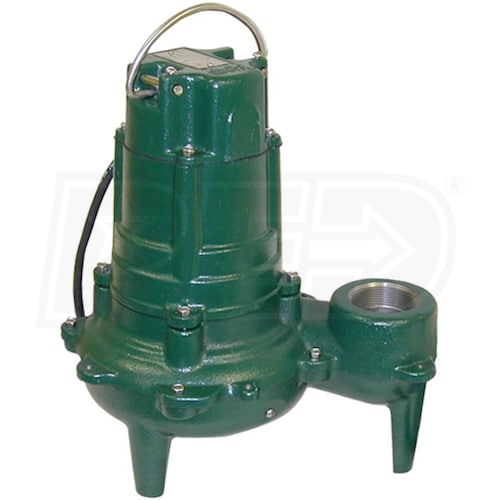

Zoeller E270 - 1 HP Cast Iron Sewage Pump (Non-Automatic) 230V w/ 20' Cord
Model: 270-0004
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
Ask a Question
$573.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Monday, Jan 18th
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Sewage Pumps
GPH
7920
Gallons
Switch Type
None
Style
Sewage Pump
GPH
7920 Gallons
Switch Type
None
Features
Features
  • ***NON-AUTOMATIC - Requires Float Switch or Controller***
  • Submersible Sewage / Ejector Pump
  • Ideal for above average sewage removal
  • Powder Coated Epoxy Finish Cast Iron Pump & Motor Housing
  • A durable, corrosion-resistant exterior for harsh conditions
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • 230V Thermally Protected 1 HP PSC Motor (3450 RPM)
  • Oil-filled & hermetically sealed to prevent overheating w/ auto reset
  • Non-Clogging Vortex Engineered Plastic Impeller
  • Capable of passing up to 2" spherical solids
  • Carbon/Ceramic Shaft Seal & Upper Sleeve/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • Engineered Thermoplastic Base
  • No need to worry about a rusty base or pump leg again
  • Neoprene Square Ring & Gasket
  • Completely submersible, watertight and dust tight
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • PLEASE NOTE - Requires 230V Power (Min. 20A Breaker)
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
230 Volt
Running Amps
7.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
7920
GPH @ 5 feet
7920
GPH @ 10 feet
6060
GPH @ 15 feet
4620
GPH @ 20 feet
3360
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
48 Pounds
Consumer Warranty
1 Year
Product Width
13.06 Inches
Product Height
15 Inches
UPC
053514062132
Style
Sewage Pumps
GPH
7920
Gallons
Switch Type
None
Style
Sewage Pump
GPH
7920 Gallons
Switch Type
None
Features
Features
  • ***NON-AUTOMATIC - Requires Float Switch or Controller***
  • Submersible Sewage / Ejector Pump
  • Ideal for above average sewage removal
  • Powder Coated Epoxy Finish Cast Iron Pump & Motor Housing
  • A durable, corrosion-resistant exterior for harsh conditions
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • 230V Thermally Protected 1 HP PSC Motor (3450 RPM)
  • Oil-filled & hermetically sealed to prevent overheating w/ auto reset
  • Non-Clogging Vortex Engineered Plastic Impeller
  • Capable of passing up to 2" spherical solids
  • Carbon/Ceramic Shaft Seal & Upper Sleeve/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • Engineered Thermoplastic Base
  • No need to worry about a rusty base or pump leg again
  • Neoprene Square Ring & Gasket
  • Completely submersible, watertight and dust tight
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • PLEASE NOTE - Requires 230V Power (Min. 20A Breaker)
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
230 Volt
Running Amps
7.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
7920
GPH @ 5 feet
7920
GPH @ 10 feet
6060
GPH @ 15 feet
4620
GPH @ 20 feet
3360
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
48 Pounds
Consumer Warranty
1 Year
Product Width
13.06 Inches
Product Height
15 Inches
UPC
053514062132
Product Specs
+−
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
230 Volt
Running Amps
7.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
7920
GPH @ 5 feet
7920
GPH @ 10 feet
6060
GPH @ 15 feet
4620
GPH @ 20 feet
3360
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
48 Pounds
Consumer Warranty
1 Year
Product Width
13.06 Inches
Product Height
15 Inches
UPC
053514062132
