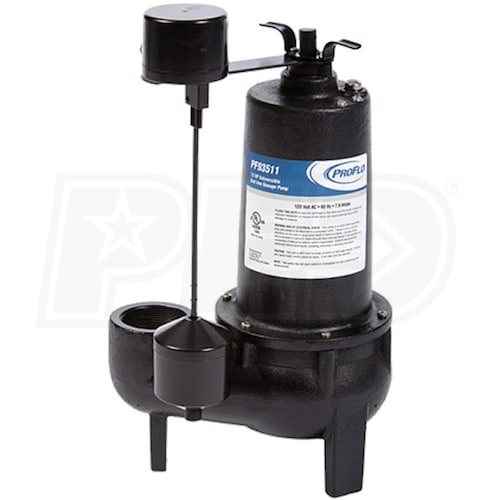

ProFlo PF93511 - 1/2 HP Cast Iron Sewage Pump (2") w/ Vertical Float Switch
Model: PF93511
+
Share This Product
-
Product Description
-
5Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
4800
Gallons
Switch Type

Style
Sewage Pump
GPH
4800 Gallons
Switch Type
Vertical
Features
Features
- Submersible Sewage/Ejector Pump w/ Vertical Float Switch
- For movement from a basin to sewer or septic line/drainage field
- 1/2 HP Split Capacitor Motor (3450 RPM)
- Thermally protected,Continuous duty design, only draws 7.6A
- Heavy-Duty Cast Iron Housing & Base Construction
- For rapid heat dissipation and extended life
- SJE Rhombus Vertical Float Switch
- Provides automatic or manual operation via piggyback plug
- SS Non-Clogging Vortex Impeller
- Corrosion-resistant design, passes spherical solids up to 2"
- 2" FNPT High Capacity Discharge
- Will replace most sewage pumps without any plumbing changes
- 10' Power Cord w/ Piggyback Plug
- Allows for manual operation of the pump
- High-Quality Components
- Stainless steel motor shaft & fasteners
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
7.6
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Vertical Float
GPH @ 0 feet
4800
GPH @ 5 feet
4080
GPH @ 10 feet
3600
GPH @ 15 feet
2640
GPH @ 20 feet
780
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
14 Inches
Float Off
6 Inches
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
28 Pounds
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
17.25 Inches
UPC
781889134900
Style

GPH
4800
Gallons
Switch Type

Style
Sewage Pump
GPH
4800 Gallons
Switch Type
Vertical
Features
Features
- Submersible Sewage/Ejector Pump w/ Vertical Float Switch
- For movement from a basin to sewer or septic line/drainage field
- 1/2 HP Split Capacitor Motor (3450 RPM)
- Thermally protected,Continuous duty design, only draws 7.6A
- Heavy-Duty Cast Iron Housing & Base Construction
- For rapid heat dissipation and extended life
- SJE Rhombus Vertical Float Switch
- Provides automatic or manual operation via piggyback plug
- SS Non-Clogging Vortex Impeller
- Corrosion-resistant design, passes spherical solids up to 2"
- 2" FNPT High Capacity Discharge
- Will replace most sewage pumps without any plumbing changes
- 10' Power Cord w/ Piggyback Plug
- Allows for manual operation of the pump
- High-Quality Components
- Stainless steel motor shaft & fasteners
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
7.6
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Vertical Float
GPH @ 0 feet
4800
GPH @ 5 feet
4080
GPH @ 10 feet
3600
GPH @ 15 feet
2640
GPH @ 20 feet
780
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
14 Inches
Float Off
6 Inches
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
28 Pounds
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
17.25 Inches
UPC
781889134900
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
7.6
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Vertical Float
GPH @ 0 feet
4800
GPH @ 5 feet
4080
GPH @ 10 feet
3600
GPH @ 15 feet
2640
GPH @ 20 feet
780
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
14 Inches
Float Off
6 Inches
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
28 Pounds
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
17.25 Inches
UPC
781889134900
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
Can the float switch be moved to other side of pump ?
Theresa W
from Maryland
August 19, 2015
Answer
Yes it can! There is couple of screws on top part of the pump that can be loosened for the switch to be swiveled to your preferred position.
Was this answer helpful?
Yes

0
No

0
